Replacement window corner brackets for Regal Deluxe Storm door - RD ZL 200 34" x 82" WH N

Handy Person from Winnipeg, MB

Aug 31, 2015 12:15 pm

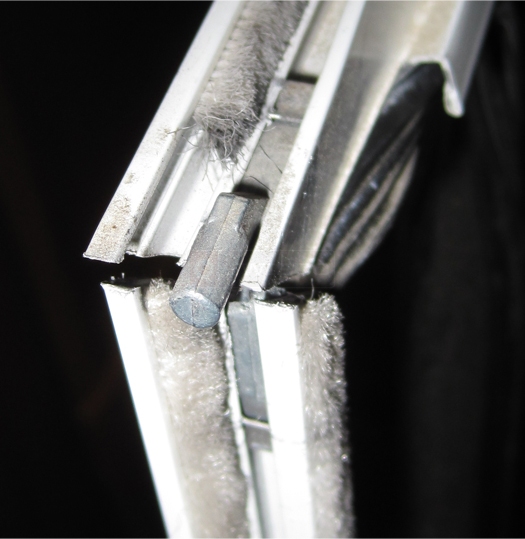

These are pictures of the left and right hand side of the sliding window frame with integrated hidden screen. Brackets broke and the glass frame has come apart. Looking for replacement parts, preferably something a little stronger than original...

User submitted photo of their window hardware.

5 Replies

Tom from SWISCO

Sep 1, 2015 3:35 pm

Thanks for posting. It's hard to tell what this corner is. Is there any way you can show us a picture of it removed? Can you also tell me the thickness and width of the legs? Thanks!

Handy Person from winnipeg, mb canada

Sep 11, 2015 10:57 pm

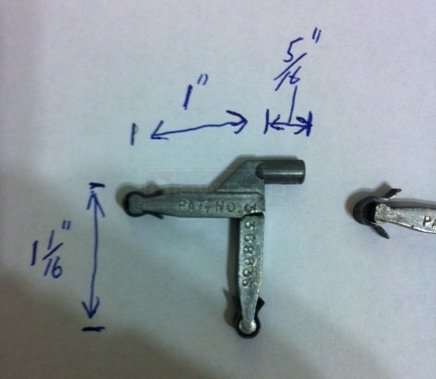

thanks for responding Tom. My apologies for taking so long in replying with this pic. Life is busy... Appreciate any help you can provide.

Paul from SWISCO

Sep 14, 2015 4:22 pm

Thank you! We have two possibles, depending on your leg dimensions. See our 95-140 (legs are 3/16" x 3/16") and 95-209 (legs are 1/8" x 5/32").

Handy Person from Winnipeg, MB, Canada

Sep 15, 2015 8:28 am

Thanks for your response Paul. Appears I need the 95-140 Tilt Corner Key. Have ordered and are on the way. Just saved me spending $400 on a new screen door!

Ordered spares and with shipping to Canada, $10, plus research time with yourselves and re-assembly.

Much appreciated.
