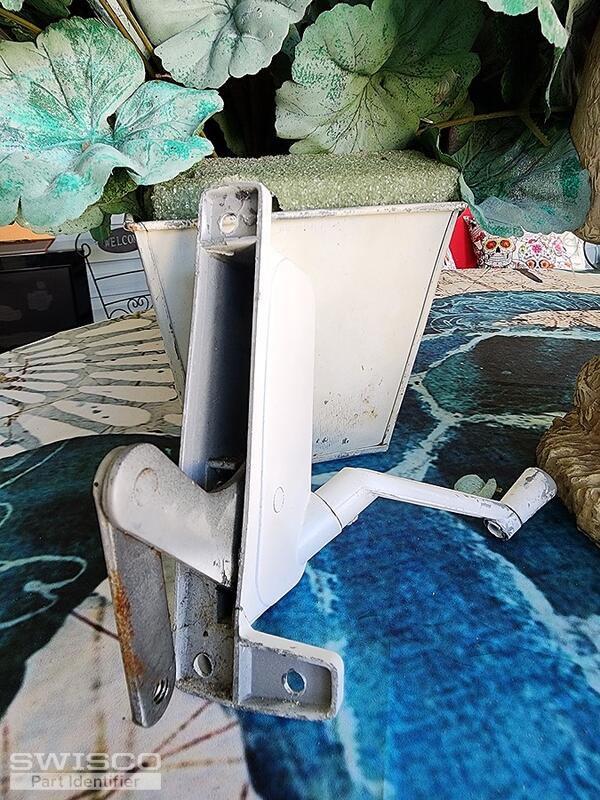

Bottom holes are 2 1/4 inches apart.
The arm is 2 3/8 long
Horizontal holes are 5 1/4 inches apart
Replacement window crank
Home Owner from Leesburg Florida
Oct 14, 2024 3:45 pm
4 user uploaded images
2 Replies
Jasmine from SWISCO
Oct 17, 2024 2:49 pm
Hey there,
Thanks for posting! The awning window operator you have closely resembles both the 39-025 Awning Window Crank Operator and the 39-252 Crossly Window Crank. To determine which of these might be the best fit for your repairs, carefully review each of their dimensions.
Each of these opposite handed versions are tagged below.

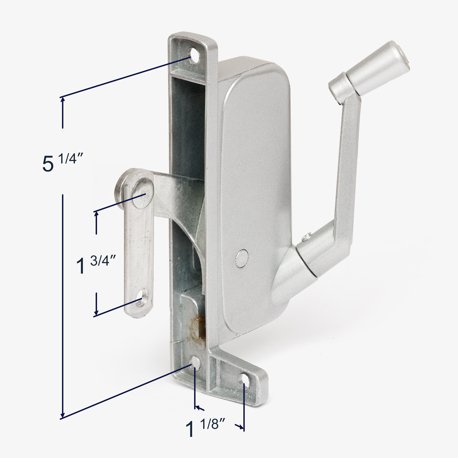

Dimensions for 39-025
View of the offset of 39-025
Alternate view of 39-252
