Replacement window crank

Home Owner from Key Largo FL

Jun 19, 2017 1:19 pm

Marking: HECHO EN EL
SALVADOR FUTE

Dark bronze right hand replacements for old 1980's awning windows

Could you tell me if this or a suitable substitution is available and price?
Thank you.

4 Replies

Tom from SWISCO

Jun 22, 2017 11:52 am

We may be able to help, but there are a bunch of different possible replacement options. I would like to know a little more information so that we can narrow it down, specifically your dimensions. Can you tell me the spacing between the installation holes, measured center to center? Can you also tell me the size of the link arm?

Home Owner from Key Largo FL

Jun 23, 2017 8:44 pm

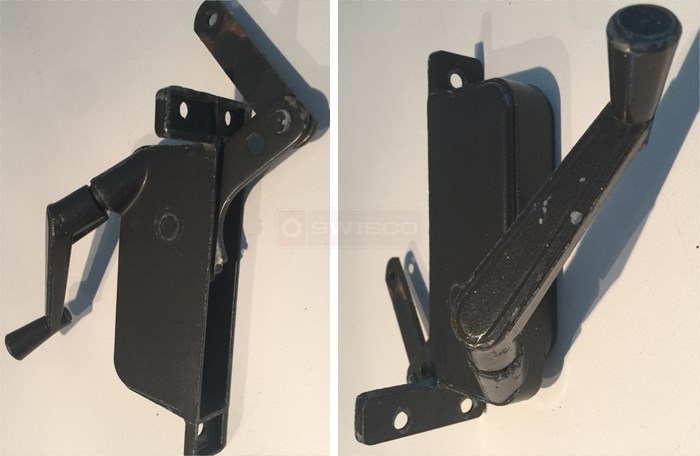

The spacing between the installation holes is 1 1/8 inches. Not sure what link arm is, but if I'm correct, it is three inches. See photo. Thanks for your reply.

Dave Sr. from SWISCO

Jun 28, 2017 10:45 am

I believe you have the older operator that was used by Silverline. Look at the newer 39-025. I believe the only difference is that yours has a threaded hole at the end of the link arm where as the 39-025 has a threaded sector which eliminates the need to use a shoulder screw like the 33-070. I don't think it will make a huge difference. Compare your operator to see if it matches up.
