Replacement window cranks
The two other windows that is part of a three window larger unit has only the numbers 20544 on them. This would need to be a right and left window crank.
I would like to purchase all new parts to replace the entire crank unit.
Can someone verify with me what I need to order. Better yet, a number I can call? Thank You
Thanks for reaching out! I am confident that we can supply you with the replacement operators needed for your window however, I'll need to see a photo of them to identify the exact hardware you need. There are a few different operators that come up in our database when I enter the information you've provided.
I'll need to see a photo of the entire operator; the body as well as the arm(s) and how the operator connects to the bottom of the swinging window.
Please let me know if you have any questions.

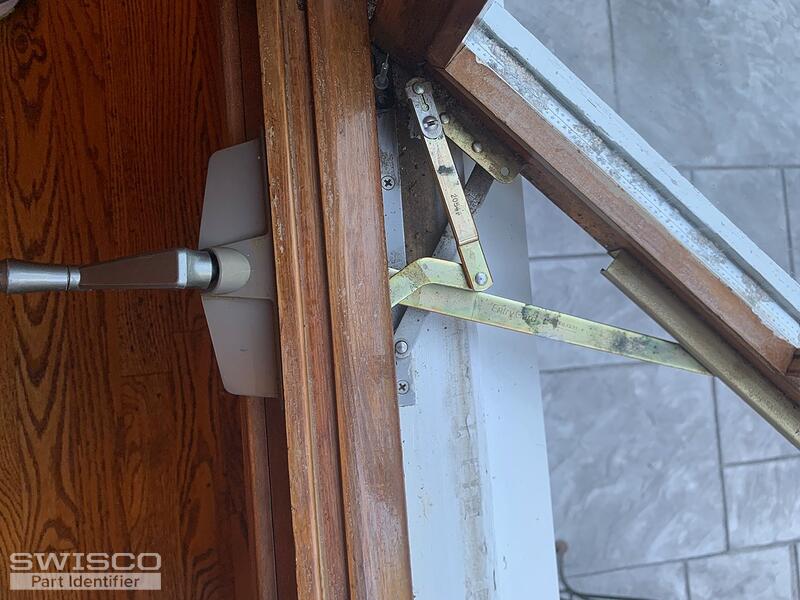

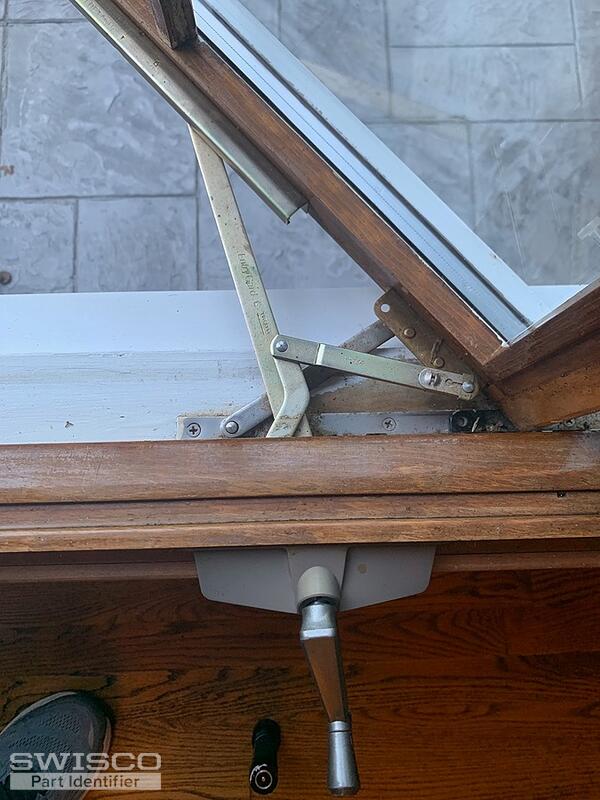

Here are photos of window cranks needed reference the email that I sent earlier.
I will email a Word document with more information.
Thanks for the photos. I'm sorry to say that I would not be able to copy the response to that email address. You'll need to forward the link to this discussion to the other individual.
Your operator resembles our 39-032 Truth Dual-Arm Operator (the opposite handed version is part 39-031). These operators are compatible with the 39-107 cover along with the 39-114L non-folding handle, like the one you have or the folding crank handle, part 39-205. Another replacement option is the 39-107FK , which is a folding crank and handle kit.
Compare the dimensions from your existing operator to those shown on the diagram below.
