Replacement window parts

Question

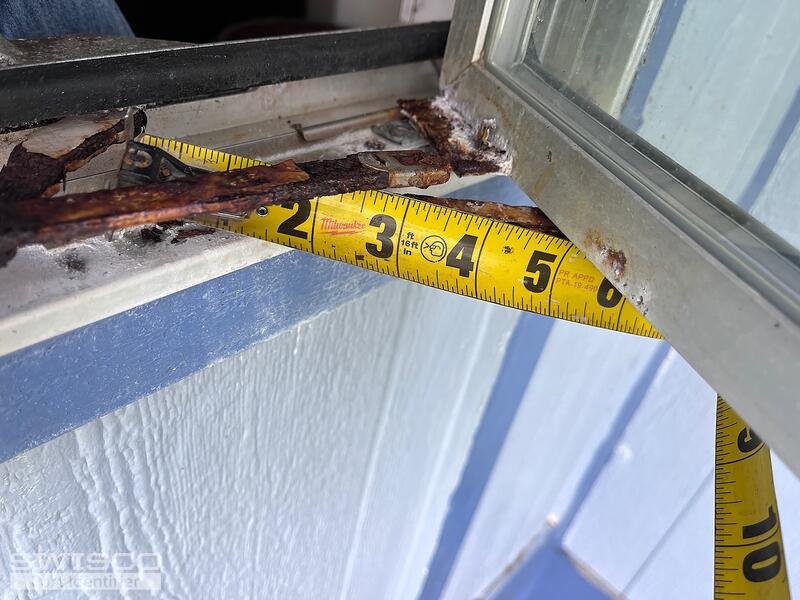

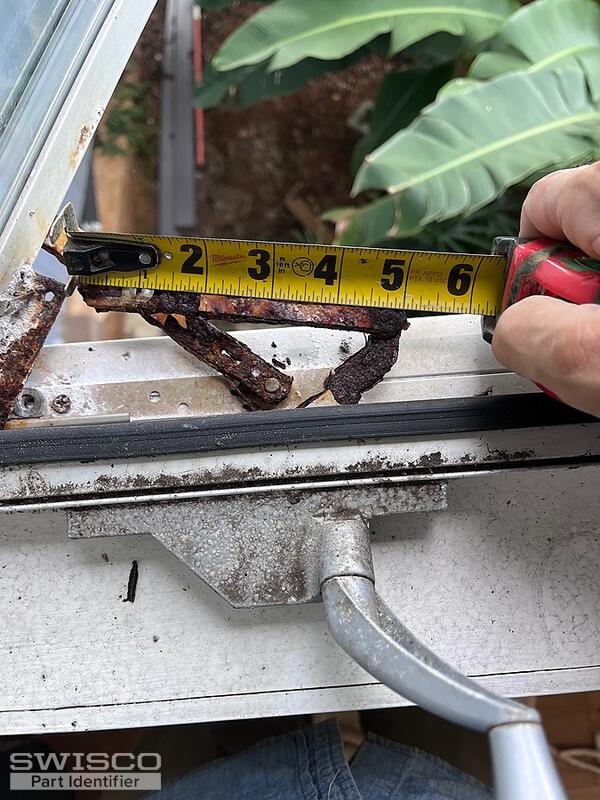

We are looking for a replacement for the top track as well as the bottom track with the crank. Please let me know if you need more information we have some window parts that are on order and we would like to add this to the order.

Jasmine · Accepted Answer

Thanks for reaching out! The window crank reminds me of the 39-187 Sash Dyad Crank. In addition to comparing the dimensions, you'll also need to compare the design to the arm shape to confirm that this is the right replacement.

The opposite handed version along with the compatible stud brackets and handles have been tagged below for your review.

Dimensions for 39-187

The top and bottom tracks on the window are part of the window hinges. These are both separate from the cranks. I believe you may need either the 36-048 or the 36-004-10 (stainless steel) to replace the existing hinges. Take a look over them to see which of these is the best option for your repairs.

Detail of 36-048

DImensions for 36-004-10

If you have already placed an order, you will not be able to add these to the order. You'll need to either email (help@swisco.com) or call (888) 991-1929 to speak with a member of our customer service team. If the order is still being processed, they may be able to assist with cancelling the order so that you can place a new order.
