Replacement window rod

Start a new Discussion

Home Owner from Illinois

Oct 21, 2025 4:14 pm

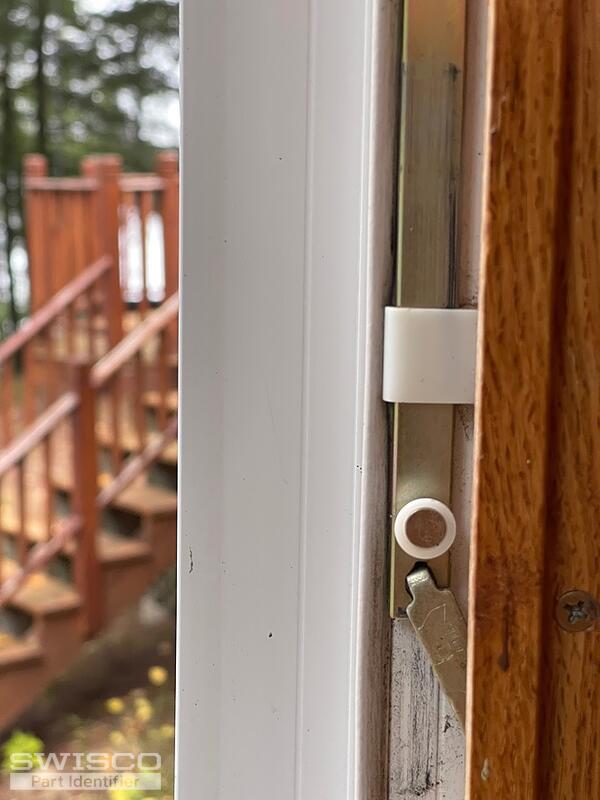

Looking to find a replacement rod for this type of window.

3 user uploaded images

8 Replies

Jasmine from SWISCO

Oct 22, 2025 4:18 pm

Thanks for writing in! The rod you are searching for is the tie bar for the casement window locking system. We can likely supply the replacement but I'll need to know the length of the bar and the number of cone rollers on it.

Please let me know if you have any additional questions!

Home Owner from Illinois

Oct 23, 2025 1:38 pm

Thank you, Jasmine. I won't be able to measure it for a week or so. I'll send you the specs and number of cone rollers then.

Jasmine from SWISCO

Oct 23, 2025 3:25 pm

Okay, great! Please send the information when you are able and we'll be happy to take a look.

Feel free to reach out with any other questions you might have in the meantime!

Home Owner from Illinois

Nov 1, 2025 2:43 pm

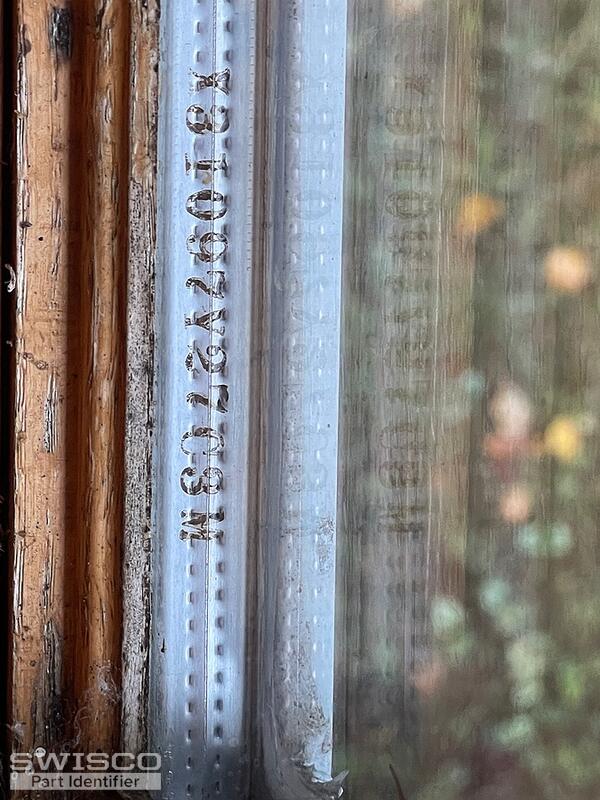

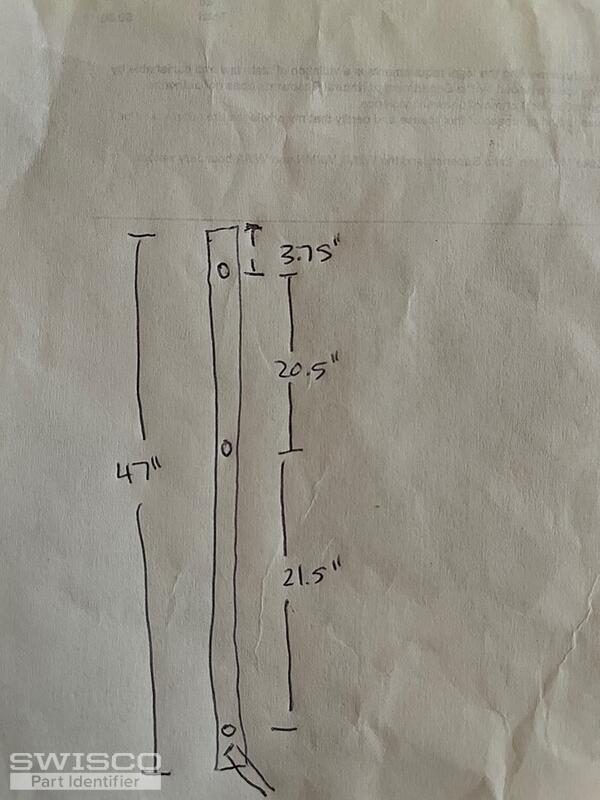

Sorry for the rough drawing. The overall length of the bar is 47 inches. The diagram shows the theee rollers and the distance between them. Not sure if the number in the second pic helps at all.

3 user uploaded images

Jasmine from SWISCO

Nov 3, 2025 11:55 am

Thanks for confirming this information. The best replacement option we have the 38-919 46.9" Tie Bar. You may need to adjust the tie bar guide for the installation but you'll need to determine that one you have the tie bar.

Please let me know if you have any additional questions.

Alternate image for 38-919

Home Owner from Illinois

Nov 3, 2025 3:17 pm

Thank you for confirming this. I will need a couple of the tie bar guides as well but I know where to look now.

Jasmine from SWISCO

Nov 3, 2025 3:48 pm

I'm happy to help! I know you said you know where to look but I've tagged a few of the guides we sell below this thread. Given the placement of your installation hole spacing, I believe you'll need the 39-448 but be sure to review and compare their dimensions.

Please don't hesitate to reach out with any other questions you might have!
