Replacement window sprial balance pivot shoe

Home Owner from MA

Sep 30, 2014 11:31 pm

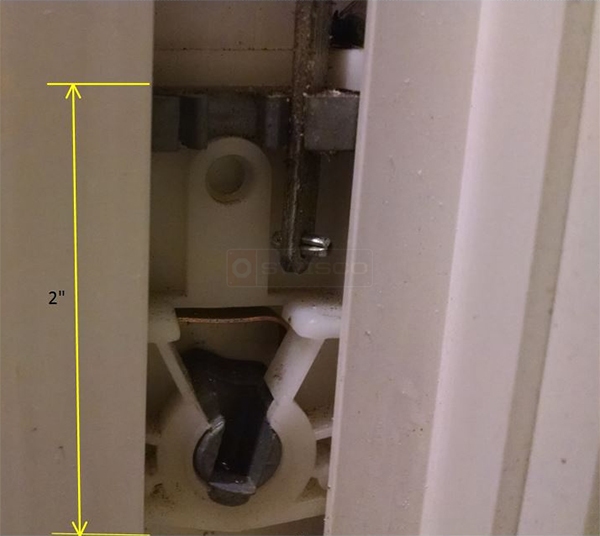

I need a couple of balance pivot shoe as shown in the picture. I couldn't get any markings. Any chance you could tell what part from the picture? The height is 2", the width is pretty close to 2". If precise measurement is needed, I will try to take it out.

I appreciate your advice.

Thank you.

5 Replies

Home Owner from MA

Oct 1, 2014 7:53 pm

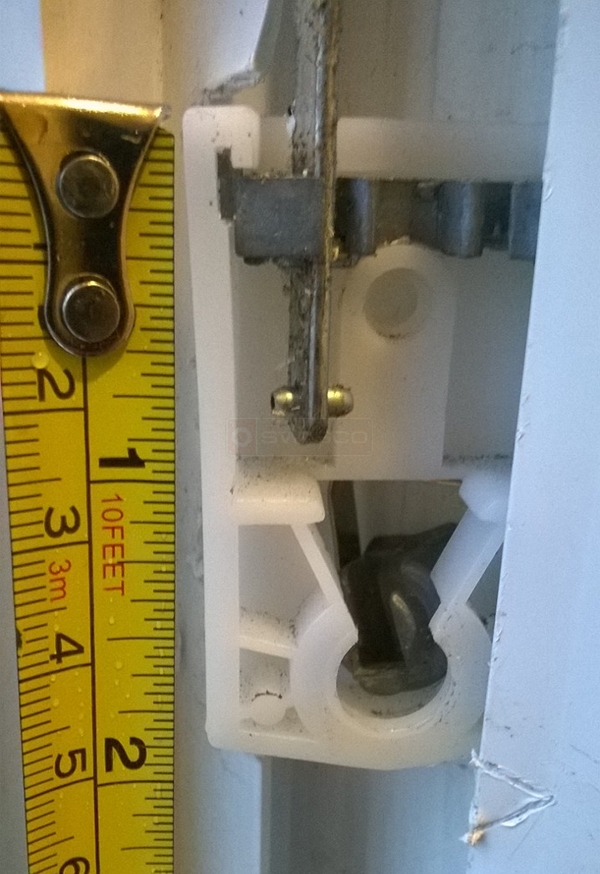

I have a better picture and some measurements. It's about 2" high, 1 3/8" wide, and 3/8" to 1/2" thick.

Would you be able recommend a model? I don't need an exact match. Anything that works would do.

Thank you.

Home Owner from MA

Oct 1, 2014 7:56 pm

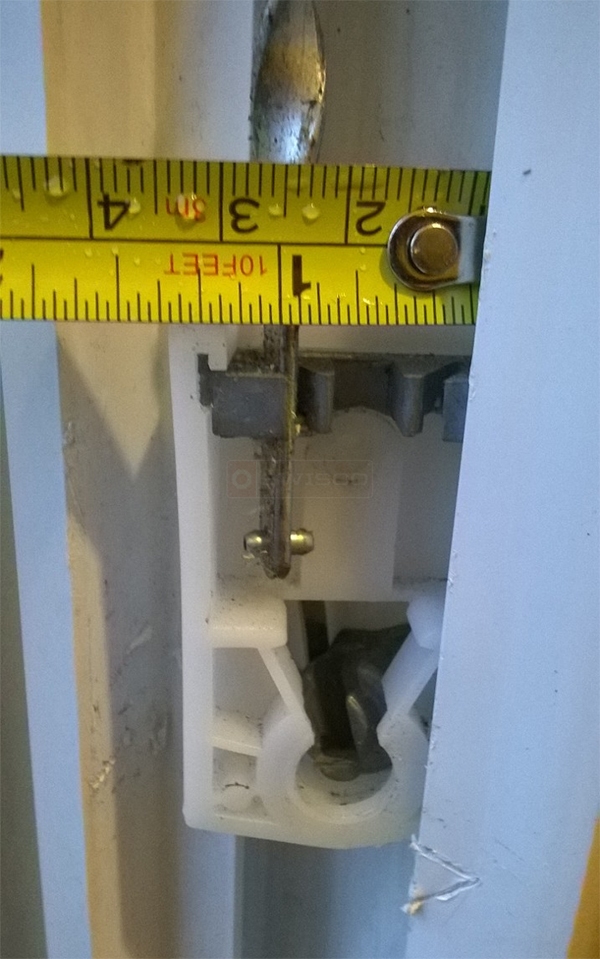

A picture showing the width.

Dave Sr. from SWISCO

Oct 2, 2014 10:09 am

Thanks for posting! This looks a bit like our 15-135, but you should remove the pivot shoe from the window before you make a decision. Height doesn't matter so much, just make sure the width and thickness match.

Home Owner

Oct 2, 2014 9:56 pm

Thank you for the reply and suggestion! I understand I should take it out to make sure, but I just placed an order for a couple of 15-135 so that I try it out.

Thanks again.
