Replacement/refinished hinges
Home Owner from Kentucky
Mar 2, 2018 1:04 pm

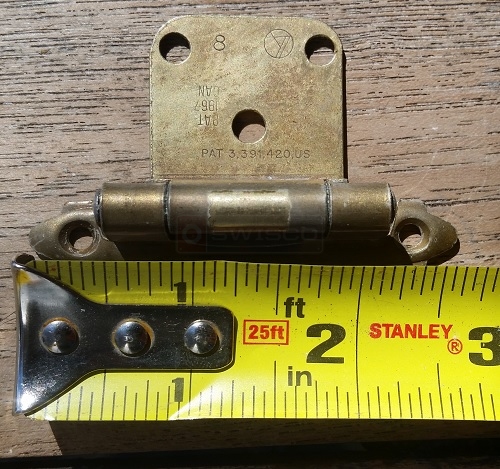

My old kitchen cabinet hinges say pat 3391420 US. I was initially going to just replace them, then noticed that all hinges of similar size have the 3 screw holes reversed (2 next to the hinge, 1 on the outside). I tried cleaning the ones I have, now there is a plastic veneer flaking off. Do you have any advice on either finding replacements with an identical hole pattern, or refinishing the existing ones? Thanks
2 Replies
Dave Sr. from SWISCO
Mar 6, 2018 11:06 am
Looks like you have an older Amerock hinge which might not be available anymore. You might be able to use something like our 32-126 hinge kit, but I'm not sure. The mounting holes in the door are reversed compared to yours, like you mentioned, but I don't think it would that much of a problem to make new screw holes in the door.
When I cleaned hinges like this in the past, I soaked them in ammonia for a few hours to clean off the old finish. After they were cleaned I used a spray clear coat to refinish them.
When I cleaned hinges like this in the past, I soaked them in ammonia for a few hours to clean off the old finish. After they were cleaned I used a spray clear coat to refinish them.
