Replacement/upgrade hardware : SWISCO.com

Quick Learner from Cherry Hill NJ

Jan 2, 2026 1:07 pm

Dear Swisco,

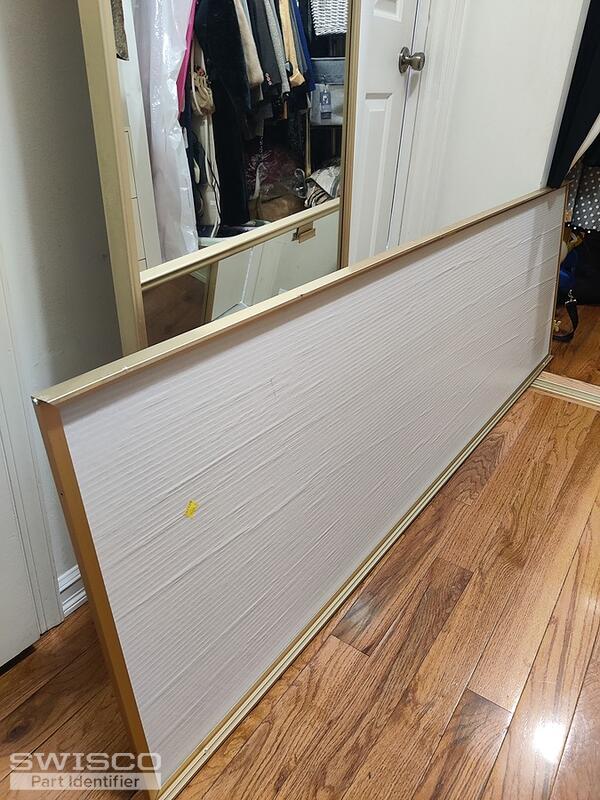

I would like to replace/upgrade all the hardware for my sliding mirrores closet doors.
The closest is 46.5x80 inches. Each mirrores door is 78.25x24.5 inches.

4 user uploaded images

5 Replies

Quick Learner from United States

Jan 2, 2026 1:22 pm

Dear Swisco
Please help me upgrade the hardware for my sliding mirrored bypass closet doors.

Attached are pictures.

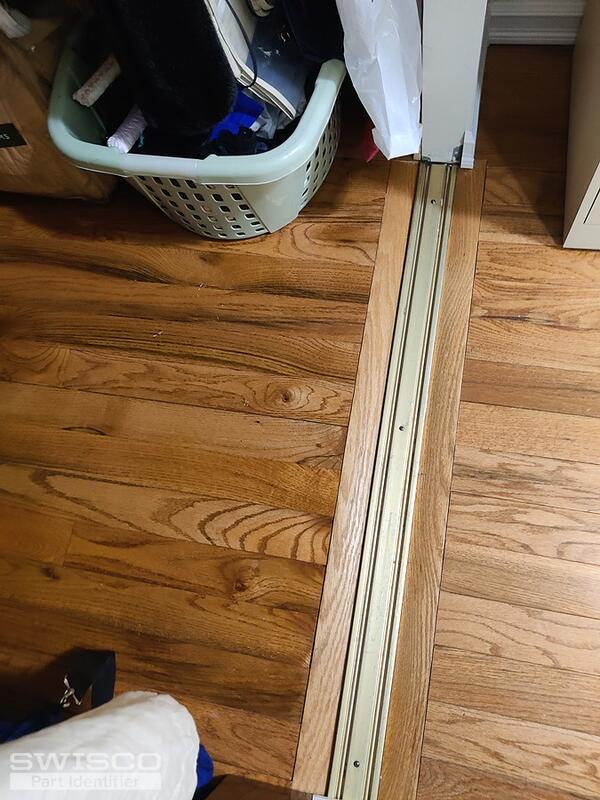

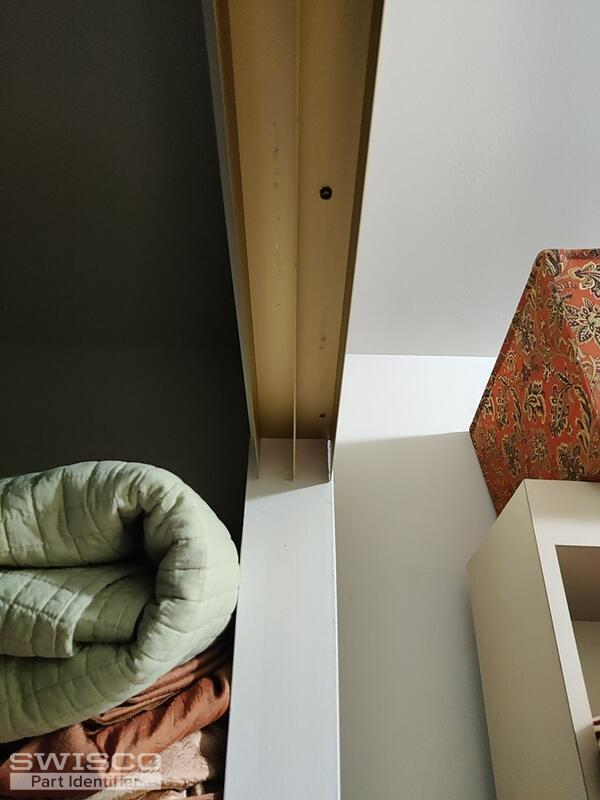

Please also identify parts for upgrading the tracks top and bottom.

Thank you

4 user uploaded images

Dave Sr. from SWISCO

Jan 7, 2026 9:21 am

Hello,

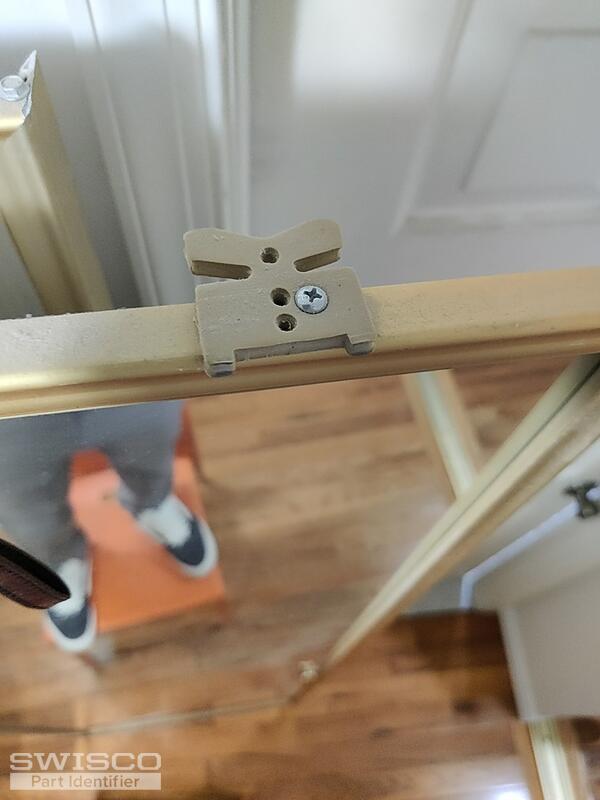

Thanks for reaching out to us. You have the older "K" style door guide, which is no longer available. However, take a look at the 23-079 snap-in guide. The supplier suggests that this should replace the original guide. Review the specifications, along with the 23-226 guide, to see if either of these could work as a replacement.

Detail of 23-079

Dimensions for 23-226

Profile view of 23-226

As for the top and bottom tracks, we've related a few options on this page, depending on the length you need. If you need new rollers or any other parts, we'd need to see photos of those parts as well to compare to our inventory.

Profile view of sliding mirror door top track

Profile view of bottom concave roller track

Quick Learner from United States

Jan 7, 2026 1:24 pm

I would like to add or replace the rollers, head guide (or top track or overhead rail), and track components for a bottom-track sliding mirrored door, if possible.

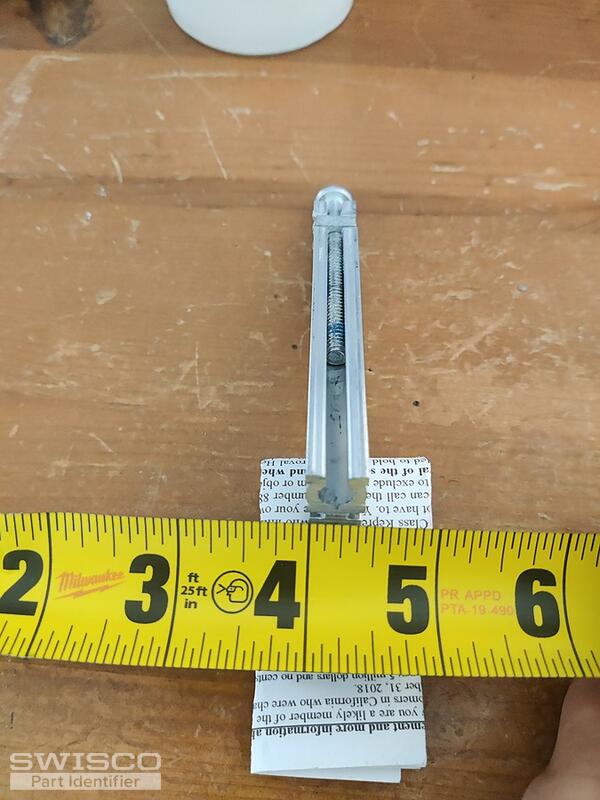

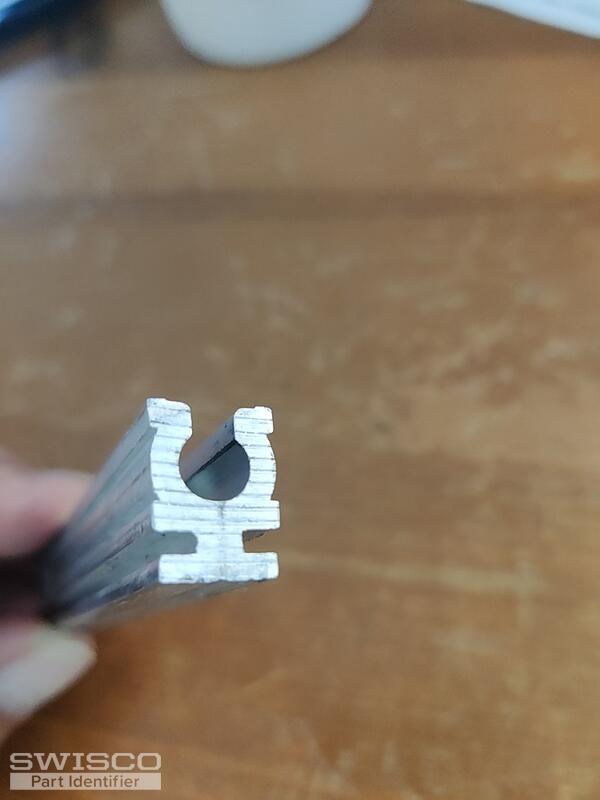

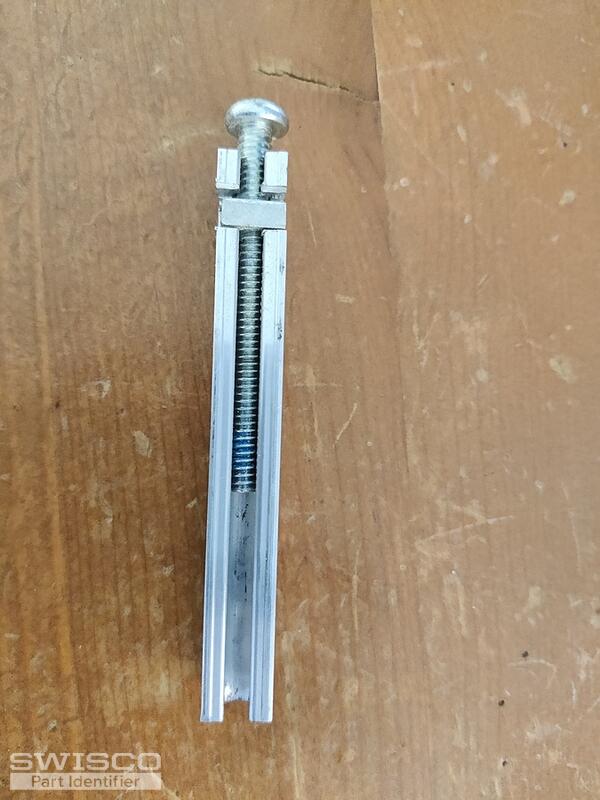

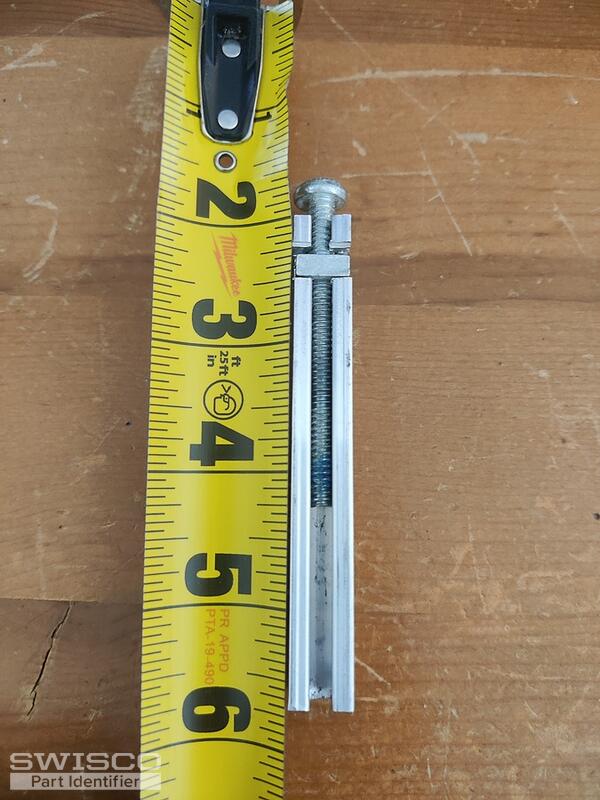

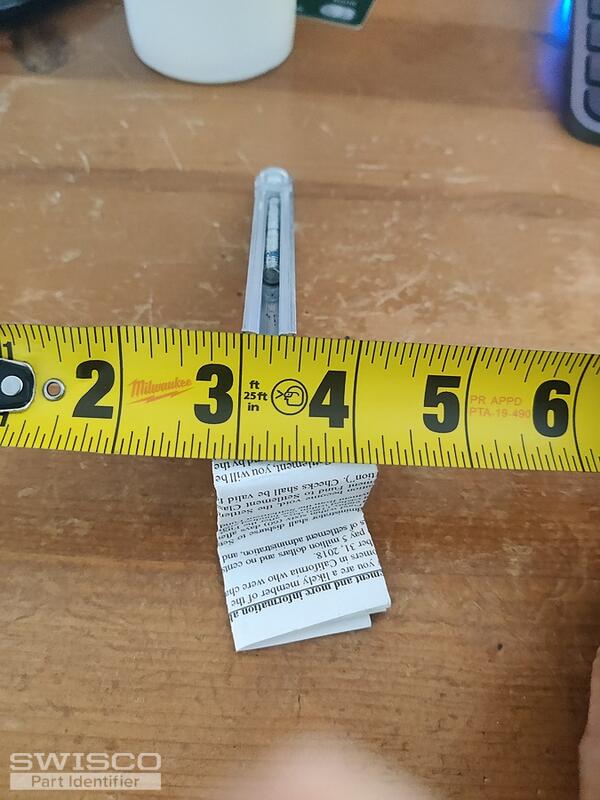

The part shown in the attached photo slides perfectly into the bottom of each mirror door. I believe this piece is an adjuster for the rollers.
I would appreciate your assistance with identifying the following components:

The correct rollers and bottom track;

The appropriate upper track guides;

The correct head guide, top track, or overhead rail/

Please let me know if additional photos or measurements would be helpful. Thank you for your assistance.
Norman

5 user uploaded images

Dave Sr. from SWISCO

Jan 7, 2026 1:44 pm

We can't be sure without seeing the roller itself, but the mounting bracket shown in your photos may be used with the 23-042. See a similar setup in another customer's post here. Please note that the bracket shown in your photos that connects it to the door is discontinued and no longer something we can supply, so you would need to reuse them. At this time only the roller is available. Review the specifications below to ensure they match your original rollers.

Dimensions for 23-042
