Replacing All Hardware on Three Old Metal Doors

Question

Dear Support Team at Swico.
If you can please help me identify the elements needed.

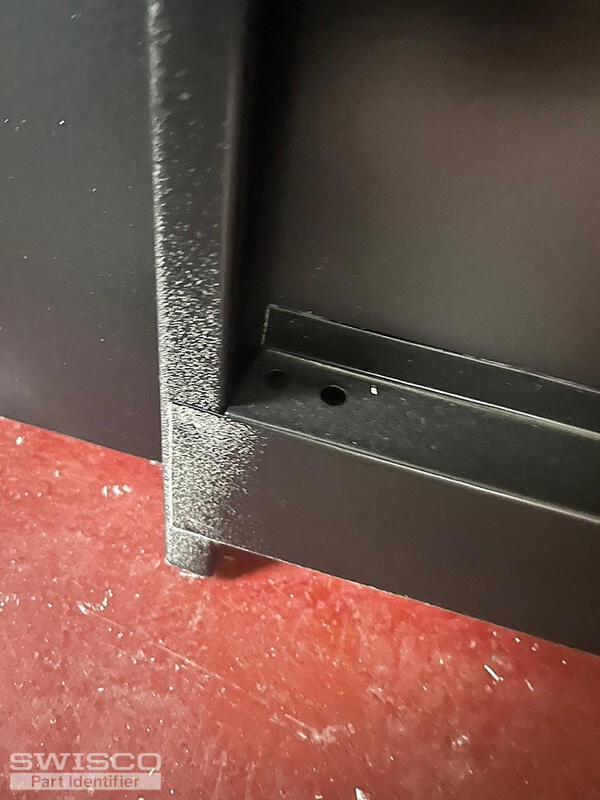

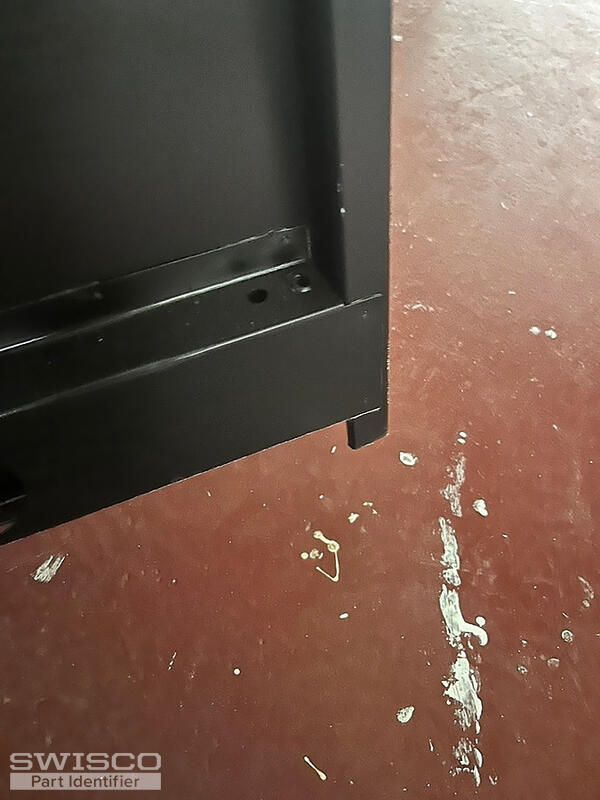

I would like to replace the following hardware for some old metal bifold doors. I would need the bottom and top pins. I also need to stopper in the middle and would like to replace the old floor aluminum rack (extremely dirty and scratched)
There are three doors. The dimensions are:
I have TWO units of double bifold: 60" wide and ONE bifold small closet 18" wide (for bottom rack purpuses)
Thank You for you help.
I am glad I found your company, the information you provide and the possibility to ask you. That is 1st class. Thank you!

Paul · Accepted Answer

Hi there!

We appreciate your patience during this busy season. The pins you will need are the following: one 21-002 bottom threaded pivot pin. This pin controls the operation of the door. It raises and squares the door to the opening. Three 21-044 guide pins, one for the top pivot and two for the top and bottom guide pins. The tracks for your openings will be the 21-401 (3') that will need to be cut down in half, and 21-402 (5'). The new tracks come with the pivot bracket and rubber bumpers, the 21-277. If you are keeping the top tracks, the rubber bumper will be the 21-276. Please note they are black.
