Replacing a Caldwell channel balance.

Question

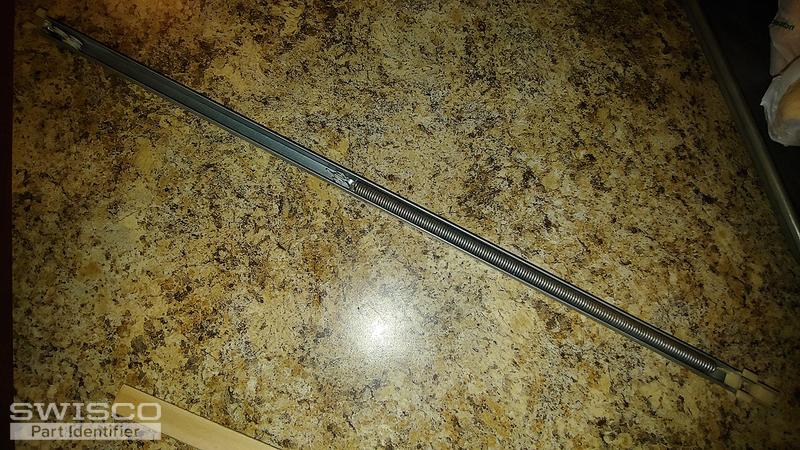

I need to know the strength of the spring. It Says 26 5 FS CALDWELL. The pulleys wore out and wore out the string. I will send pictures of the parts. I am also adding dimensions here. I am assuming the channel balance is S380-27. The metal is 1\2" wide and 27" long. the top is attached and is 11/16" x 1/2". The Shoe is attached and 1" x 15/16" x 1/2".

Casey · Accepted Answer

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a 2650 spring strength option for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
