Replacing bubble seals on wlndows : SWISCO.com

Handy Person from St Joseph, MI

Aug 3, 2022 10:17 am

The bubble is 1/4" and the leg is 5/8"
What replacement part should I buy?

I have a lot of windows to repair.

Thanks
Mike G

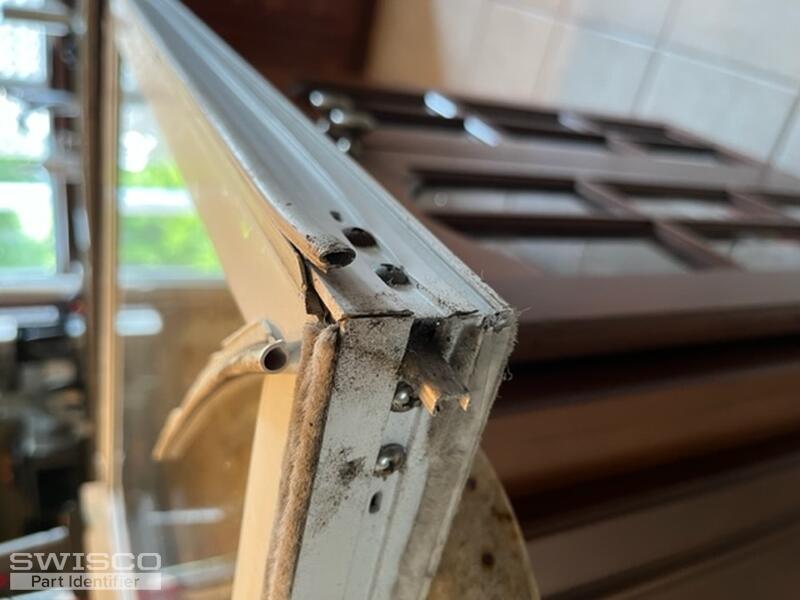

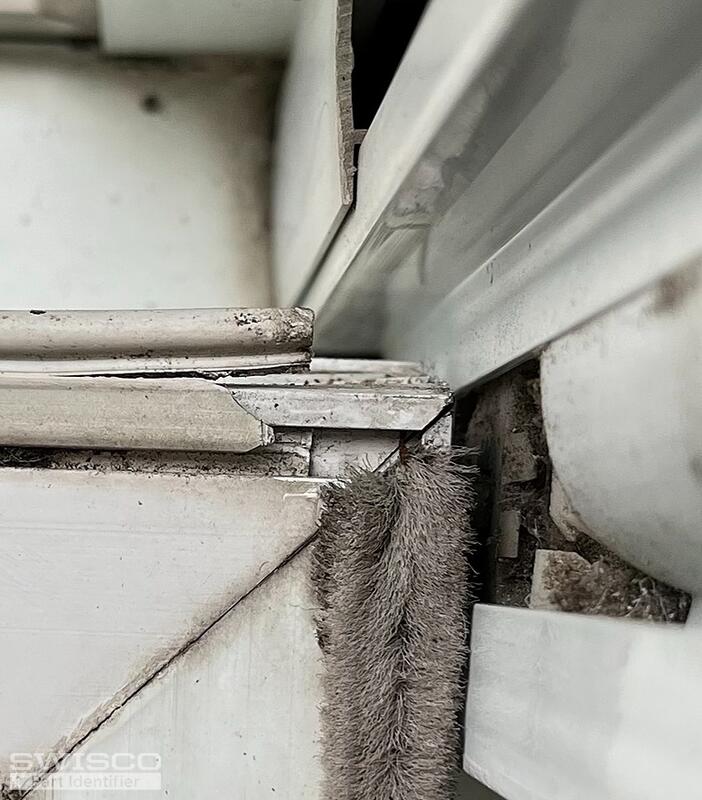

2 user uploaded images

4 Replies

Tom from SWISCO

Aug 8, 2022 11:38 am

Hello, Mike. I'm afraid this seal is a little too damaged to ID. It looks like it could be a match for our 58-055, but that's no guarantee. Would you happen to have an undamaged sample that we can use as a reference?

Handy Person from St Joseph, MI

Aug 8, 2022 5:17 pm

Would this pic help with identifying the part....the width of the part to be inserted into the slot is about 3/16 inch wide.

thanks
Mike

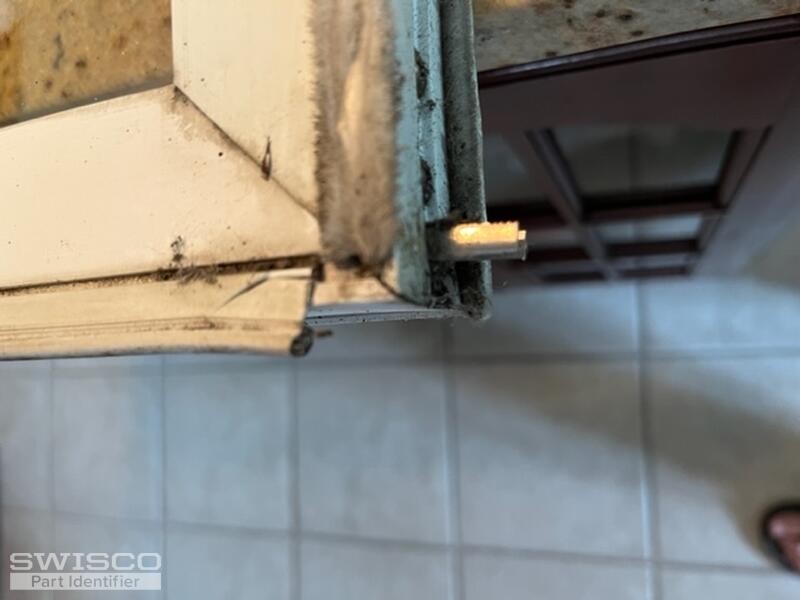

1 user uploaded image

Tom from SWISCO

Aug 9, 2022 9:11 am

Thanks for clarifying. So, if I understand correctly, the piece that slides into the window frame is "T" shaped. Is that correct?

If so, and if it's 3/16" wide, then you might be able to use something like our 58-182. Give this a look and see what you think.

Profile of 58-182
