Replacing drawer slides

Home Owner from Maryland
Dec 18, 2021 7:30 pm

I have two night stands that the drawers don't stay aligned. They are hard to pull out and put back in. Thought if I replace the sliders, it would resolve my problem.

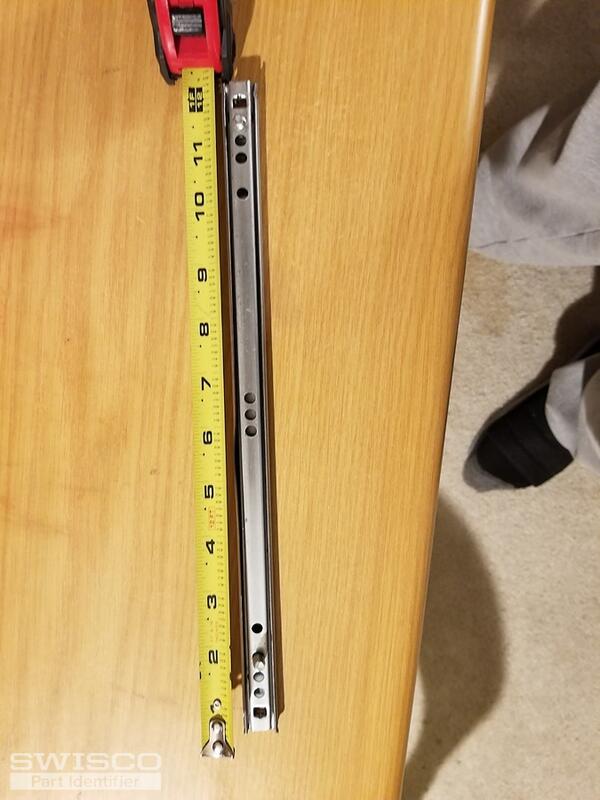

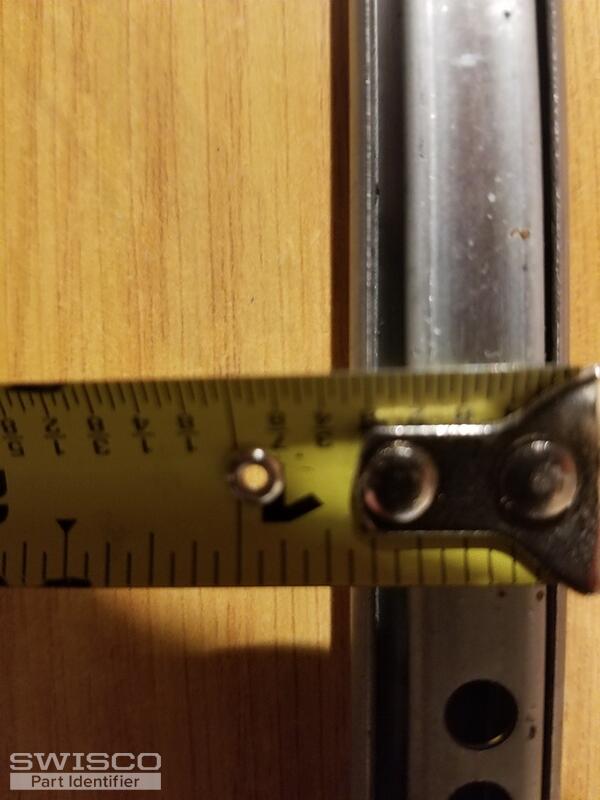

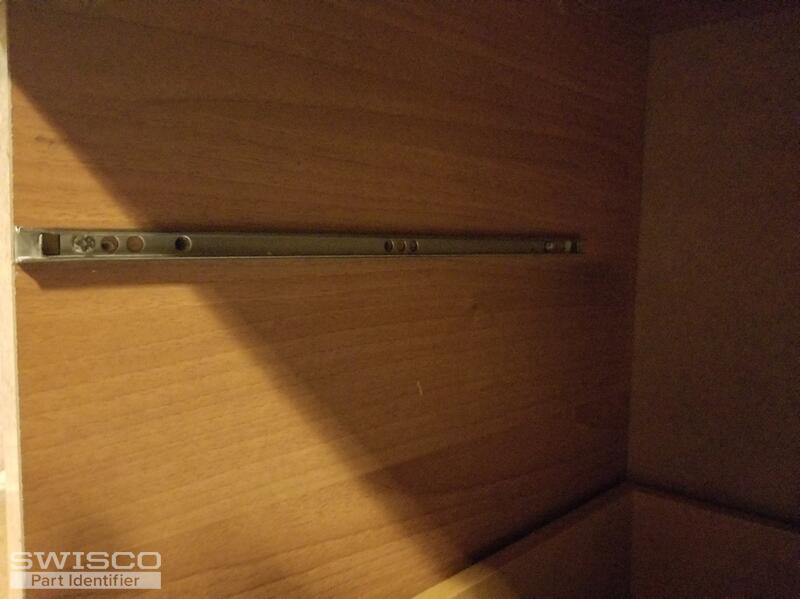

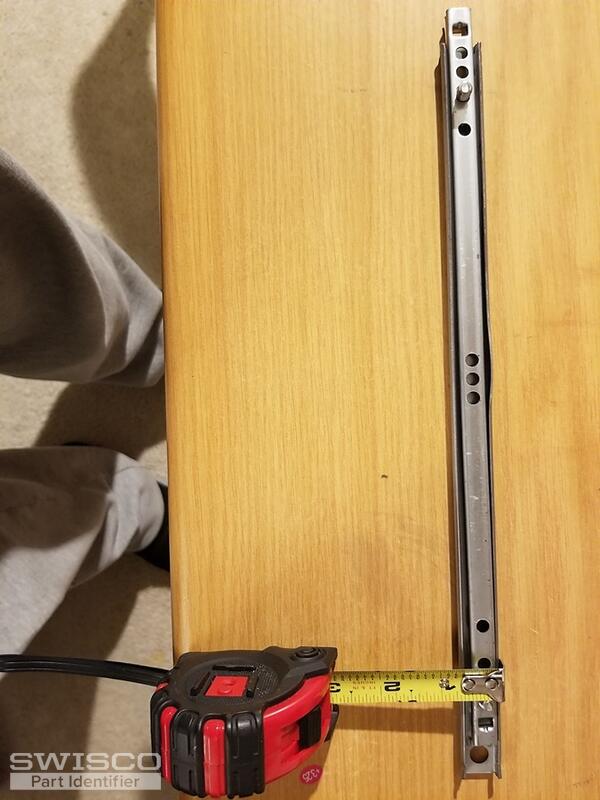

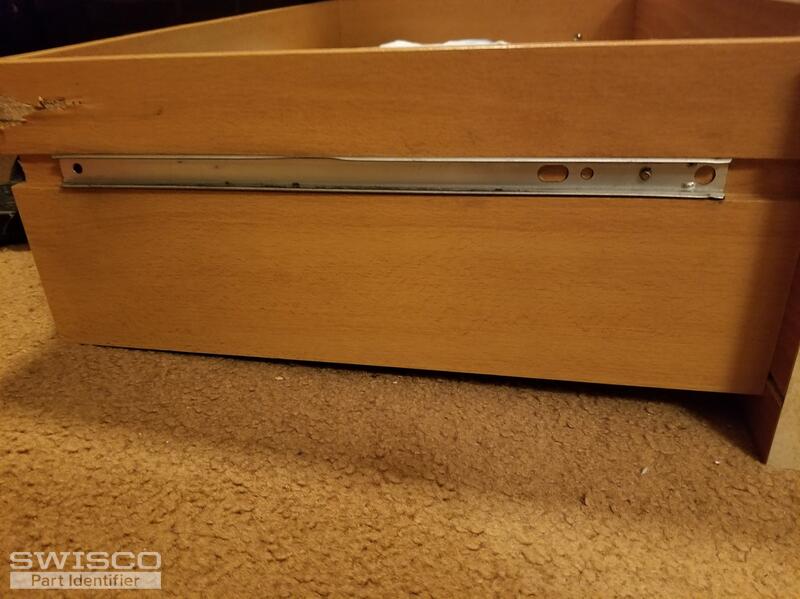

It is hard to find replacement sliders or the same type. Hope you have parts I can use. The sliders I have are about 12 inches long and drawer slider is 5/8 inches and the cabinet sliders is 3/8 inches. Hope this is enough information.

Thanks,

Wayne

20211218_182529 20211218_182542 20211218_185047 20211218_185120 20211218_185405
5 user uploaded images
5 Replies
+ Add a Comment
Emily
Emily from SWISCO
Dec 21, 2021 10:06 am
SWISCO
EXPERT

Hi, Wayne.

This reminds me of our 32-223 but review the specifications and pictures on its store page and compare them to yours to see what you think.

Quick Learner from CA
Feb 17, 2022 8:16 pm
I bought these, but I am mystified over how to mount them. I can't see how to separate the two parts and see no way to mount them without separating them.
Emily
Emily from SWISCO
Feb 18, 2022 8:13 am
SWISCO
EXPERT

The slides do not separate. To be honest, mounting these parts can be difficult and even we have trouble with it. You have to just spread the two halves apart and do your best to screw it in. It's just the nature of its design. I am sorry that we can't offer a simpler solution.

Quick Learner from CA
Feb 18, 2022 10:10 am
Actually, I see from other posts that one mounting hole is threaded and the screw goes from the inside of the drawer. So the method is drill a hole in the back of the drawer where the screw will go, then to mount to the sidewalls with the threaded hole in the back. Then put the drawer in place and put the threaded screw in from the inside of the drawer. And last, screw the the front of the rail to the drawer from the outside near the front using a wood screw.
Emily
Emily from SWISCO
Feb 18, 2022 11:12 am
SWISCO
EXPERT

Thank you for this insight; I am sure other customers will find this helpful as well!

+ Add a Comment
Products and resources found in this discussion
Small Side Mount Drawer Slide Pair, 12-3/16"
Small Side Mount Drawer Slide Pair, 12-3/16"
32-223
$5.80
