Replacing my current window crank

Question

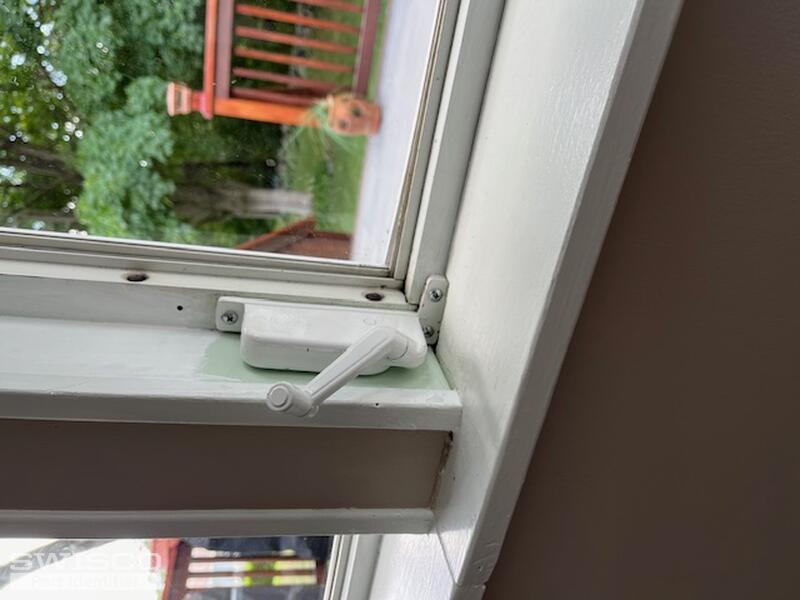

Hi, I am about to purchase the Keller Window Crank product 39-061. I believe I need the other parts that go along with it like the washer and screws for the internal leaver arm. Can you help me identify which parts I need?

Casey · Accepted Answer

Hello,

I can't be sure if your crank is a match to the 39-061 with yours still installed but I can tell you that the link arm attaches to the internal linkage with a 1/4" - 20 thread shoulder screw like the 33-070. We also offer the 33-206 washer. Take a look and let us know if you have any other questions. Thank you.

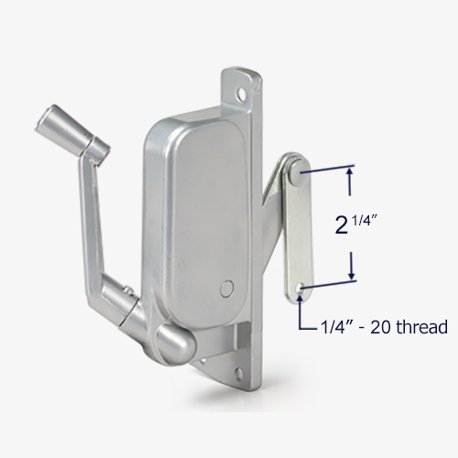

Dimensions for 39-061

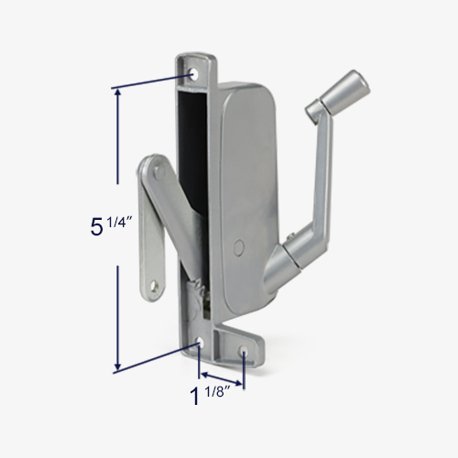

Alternate view of 39-061

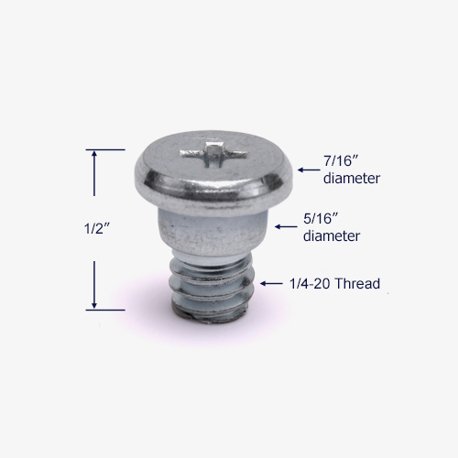

Measurement of 33-070

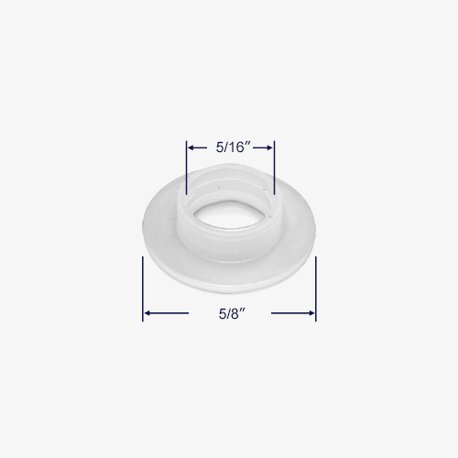

Alternate image for 33-206
