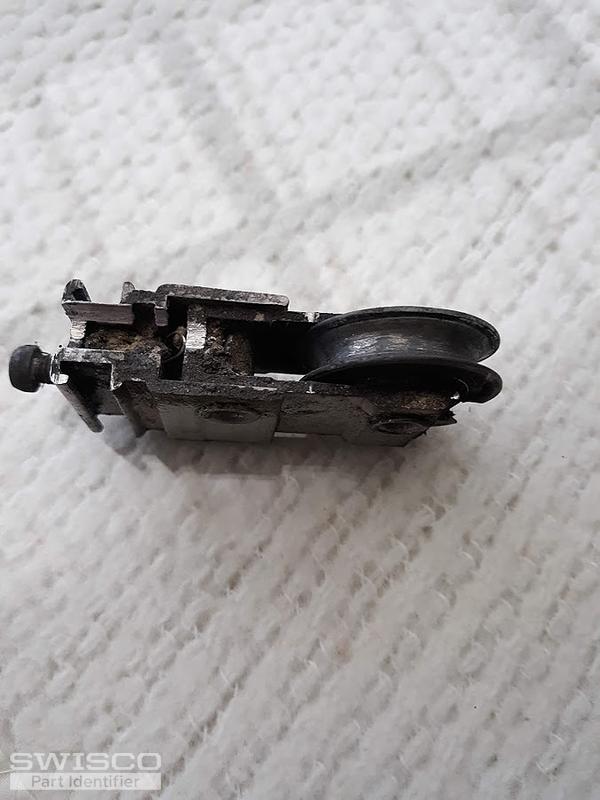

The alum housing for the roller is 2" in length (see pic 2). It looks like it may be "Barton Kramer" but I could not find an exact match on their website. I need one roller for sure but preferably two. Or any replacements that would fit in the pictured door frame. The adjustment hole is 3/4" from bottom of frame (see pic 3). The hole for the door frame screw is 1 3/16" from bottom of frame. The roller frame is 3/4" wide (see pic 1). Pic 4 is a bottom look of where the roller slides into place. Is this enough to determine what might work? I am John I would appreciate any guidance you can provide. Thank you.

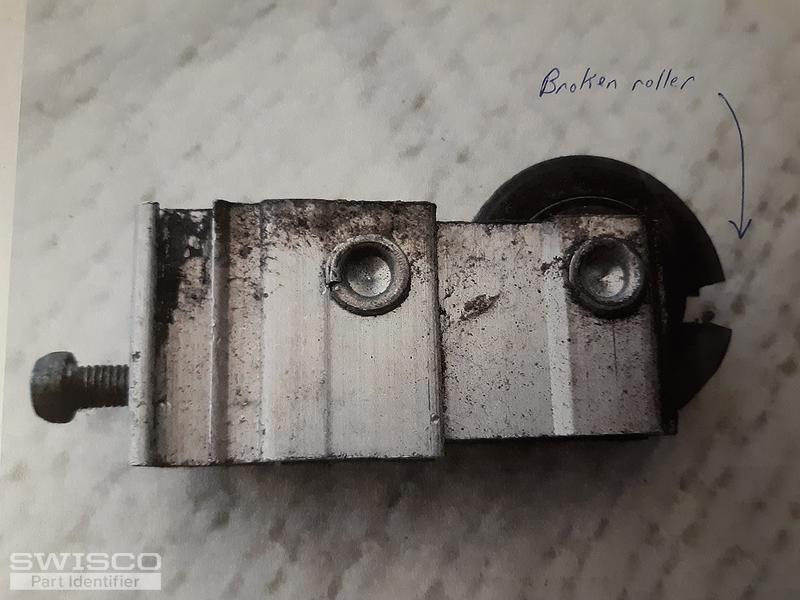

Replacing older alum. patio door sliders. One roller is broken as can be seen in side view
Home Owner from San Jose, CA
Nov 14, 2020 8:08 pm
4 user uploaded images
6 Replies
Casey from SWISCO
Nov 18, 2020 9:03 am
Hello, thanks for writing in. Before I make a recommendation, could you please tell me the width and height of the outer housing? I'd also like to know the diameter of the wheel. Thanks!
Home Owner from San Jose, CA
Nov 18, 2020 9:34 pm

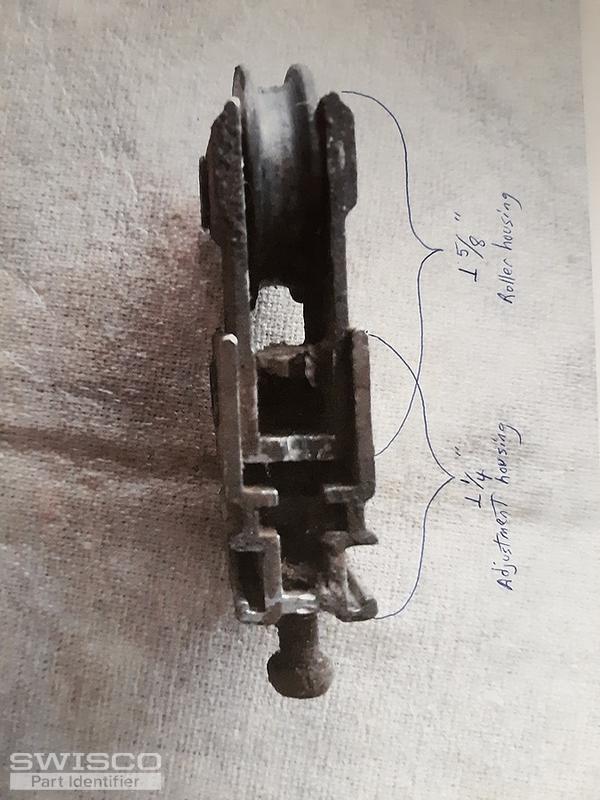

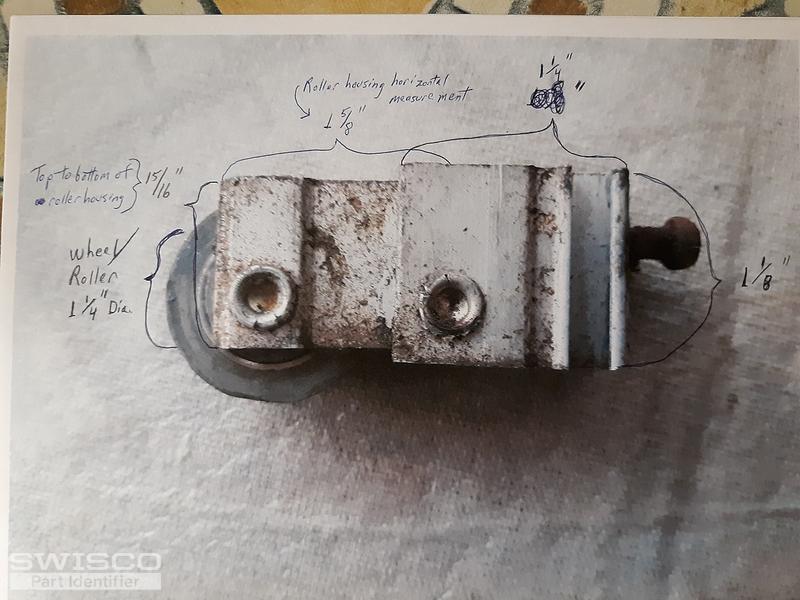

I hope you can read the measurements. Please let me know if you need more details or clarification. Thank you. John
3 user uploaded images
Casey from SWISCO
Nov 19, 2020 8:39 am
Thanks for getting back to me with those measurements. I believe the 81-071 is the closest match that we have, although I unfortunately can not guarantee that it will work as a substitute for your roller. I'm sorry I wasn't able to find a more exact replacement.
Home Owner from San Jose, CA
Nov 19, 2020 1:09 pm
Thank you for trying. I think the track is in very bad shape anyway so I will have to reach out to a pro.
Casey from SWISCO
Nov 19, 2020 2:02 pm
I'm sorry we couldn't be of greater assistance. Best of luck with your repair!
