Replacing pivots, balances, and (sweep?) locks for same "tilting" window - need help matching

A handy person from 32801 says:
Window lock, L=5", 3 mount holes (1 non-linear), no markings/numbers

Window pivot, L=2.5" W=1/4", hole spacing=13/16", no markings/numbers

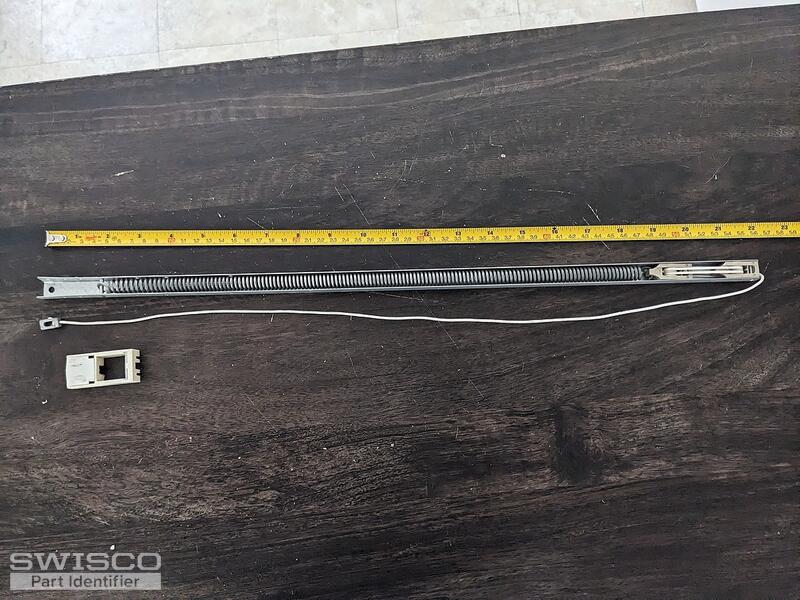

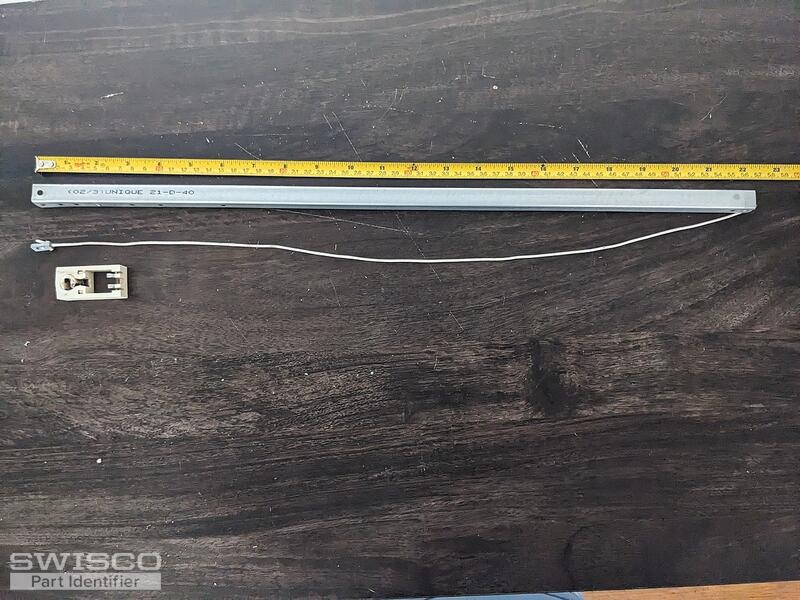

Window balance, L=22", markings: (02/3)UNIQUE 21-D-40
(Also need thin pvc?/plastic? inserts covering balance in channel)

Thank you!
Thumbnail of the uploaded file named PXL_20230921_131212908.jpg
Thumbnail of the uploaded file named PXL_20230926_182256606.jpg
Thumbnail of the uploaded file named PXL_20230926_182206450.jpg
Thumbnail of the uploaded file named PXL_20230926_182809807.jpg
Thumbnail of the uploaded file named PXL_20230926_182848280.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:

Thanks for writing in! Your channel balances look a lot like Series 770 channel balances. You'll need the S770-21 with a 21C stamp. The shoe you have pictured here is no longer made however, our 15-167 should work well as a suitable replacement.

You will need to use a new pivot bar as your existing pivot bar would not be compatible with this shoe. Take a look at the 26-021. Carefully compare the dimensions for both the shoe and the pivot bar to confirm that these are the right fit. So long as one of the installation hole placements matches the one on the bottom of the sash, this pivot bar should work fine.

Alternate image for 15-167
Alternate image for 15-167

Alternate image for 26-021
Alternate image for 26-021

Your window tilt latches look a lot like our Combo Tilt Latch Sash Lock Device Pair, part 26-431P. To confirm that this is the right replacement, carefully look over the dimensions below.

Dimensions for 26-431p
Dimensions for 26-431p


A handy person from 32801 says:
Thank you so much, saved me as usual! You all are the best!!
Profile picture of Jasmine
Jasmine from SWISCO responded:

We are happy to hear that we have been able to be a source of help for you! We look forward to hearing from you again for any future repairs you may have.

Have a great weekend!
