Request to Purchase Slider Elements and Top Sash Guides

Quick Learner from Satellite Beach, Florida
I’d like to purchase 12 slider elements as shown in the attached pictures. I’m replacing all the sliders for six windows, so I believe I need six for each side in this size.

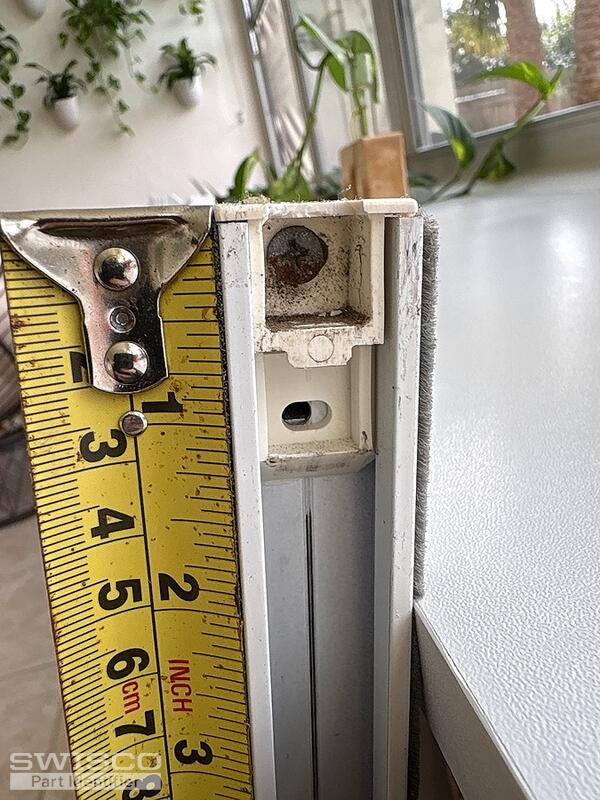

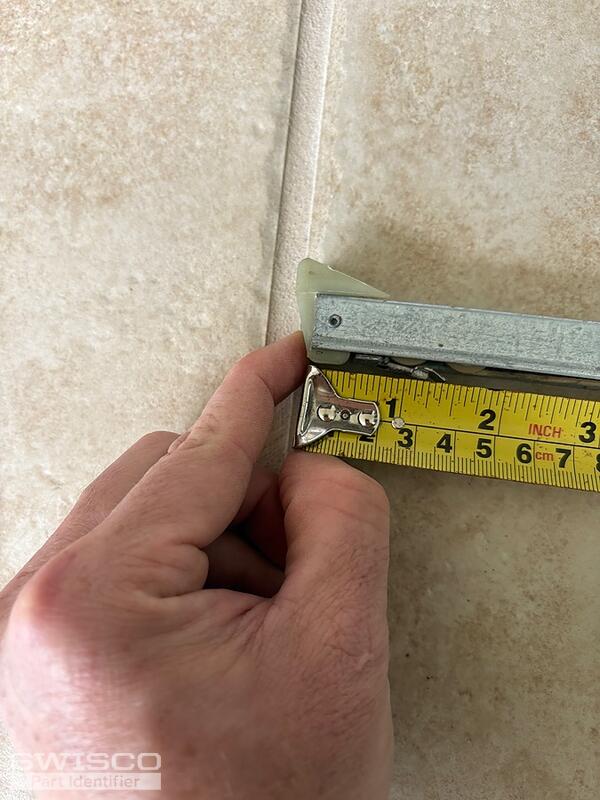

The code on the slider is: 29 4 EW CMC 10, and the metal piece is 30” long. I’ve included photos showing the hardware on each end next to a tape measure for reference. The metal part is 5/8” wide and deep.

In addition, I need top sash guides for the six windows. I’ve also attached pictures of these guides with measurements.

Please let me know if you need any additional information to process this request.

Thank you!
5 user uploaded images
5 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

To further review, we will need to see pictures of the inside of the metal channel where we can view the connection point between the spring and pulley system. From there we can confirm the correct series for your window.

For the top sash guide, would it be possible to see the guide removed from the frame to get a closer look? From there we can narrow down the best option. Thank you!

Quick Learner from Satellite Beach, Florida
Hi,

Thank you for the response, I will upload images for both parts in two separate comments due to the image limitation.

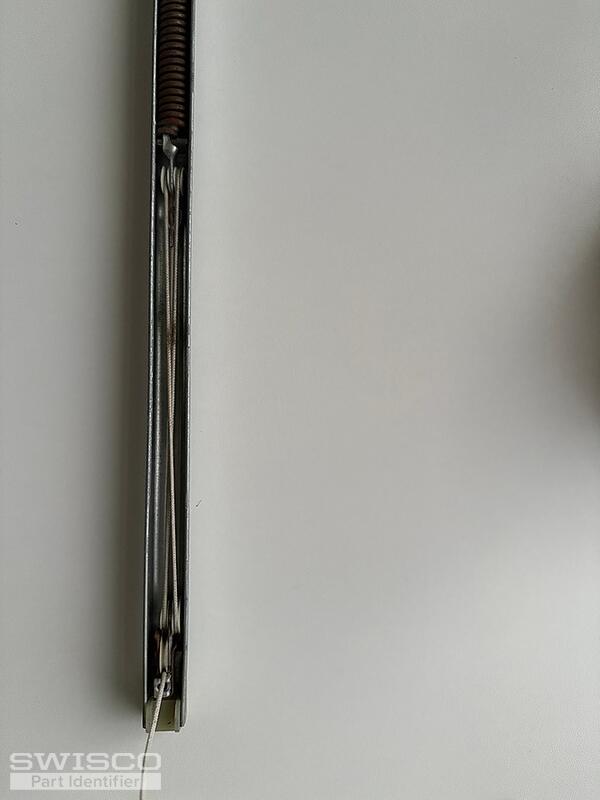

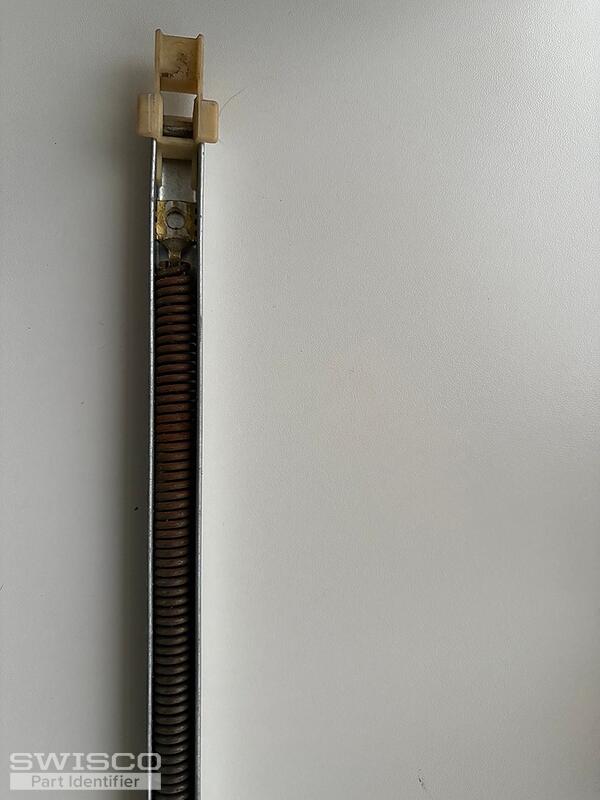

Here is the internal images of the slider part.
3 user uploaded images
Quick Learner from Satellite Beach, Florida

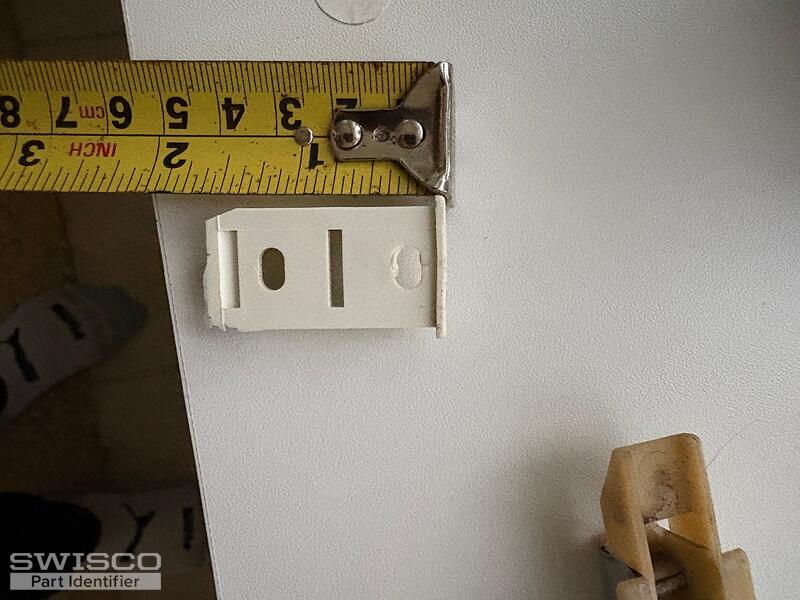

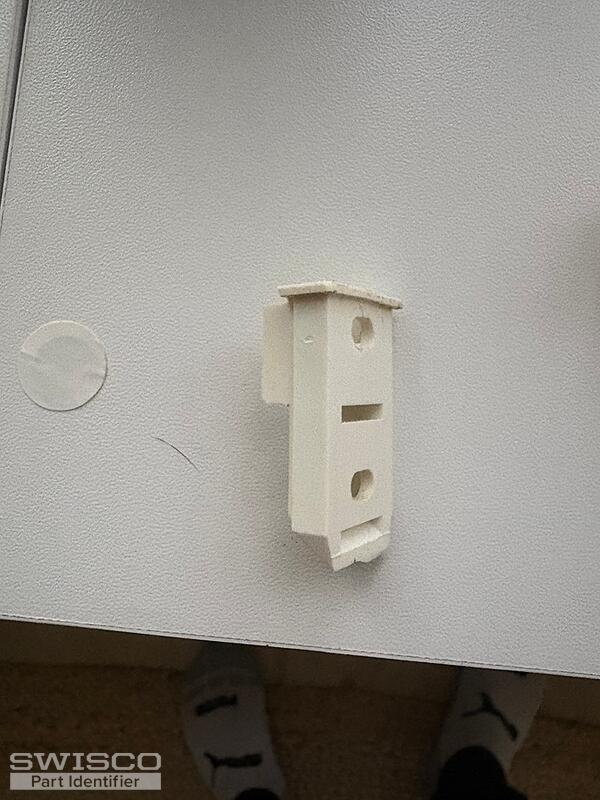

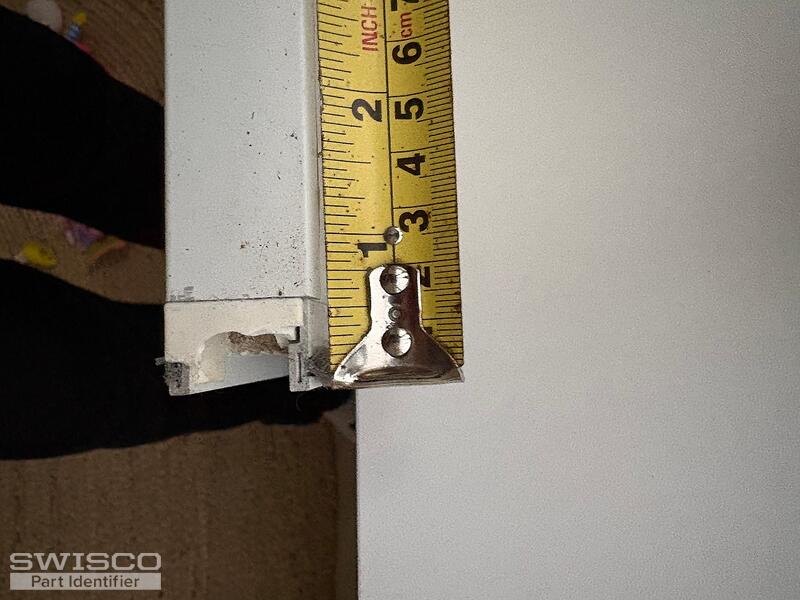

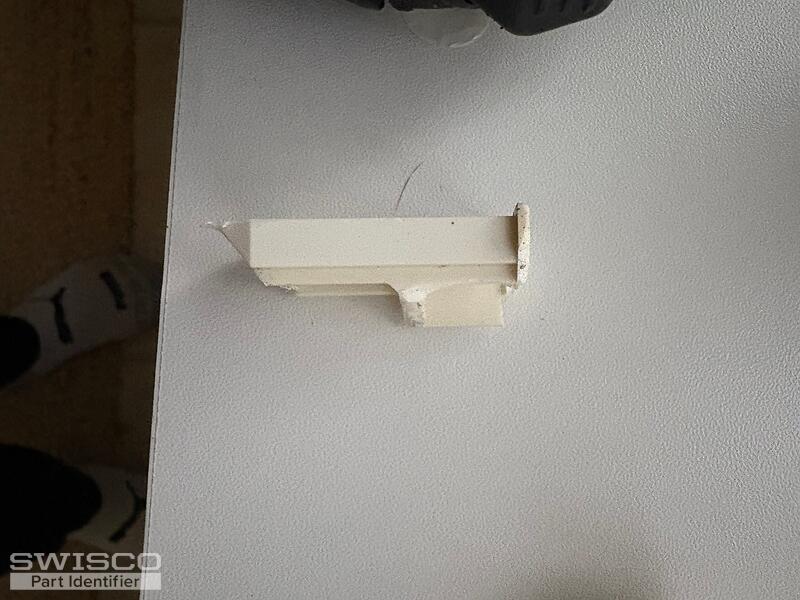

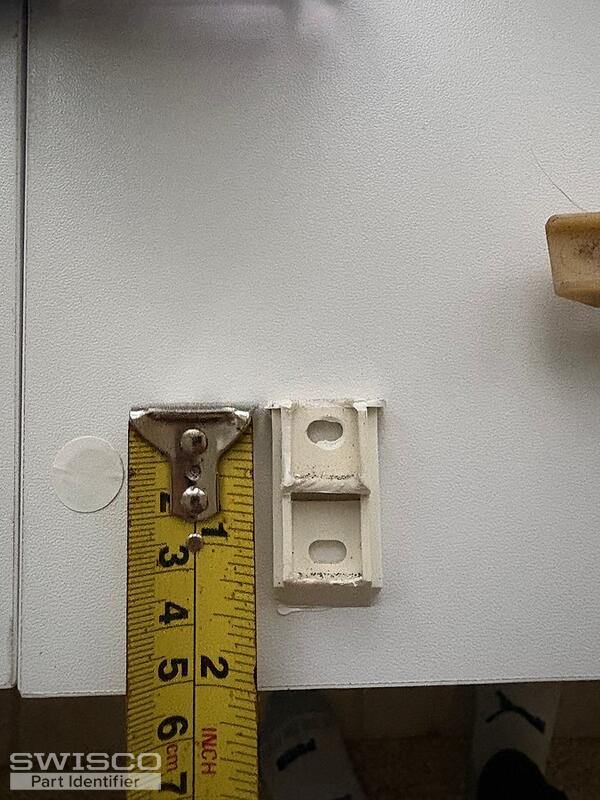

Here are the images of the top sash guides.
They are quite broken as you can see but should give you a good idea of the part.
5 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you for the additional images,

Please review the S395-30 Channel balance with a 2940 stamp option.

Close up view of the S395 balance shoe.
Close up view of the S395 balance shoe.

For the top sash guide, start by comparing the dimensions of the 18-015. Let us know how it compares and if you have any additional questions!

Alternate view of 18-015
Alternate view of 18-015

Alternate view of 18-015
Alternate view of 18-015
