Require Replacement part for Casement Windows

Start a new Discussion

Home Owner from 18940

Dec 10, 2018 11:29 am

Welded Knight Casement from Northeast Building Products Corporation

Want the replacement parts for the casement windows.

3 user uploaded images

6 Replies

Tom from SWISCO

Dec 14, 2018 11:14 am

Thanks for posting. Looking at your photos, it appears you're pointing specifically at the hinge. See our 36-048. This isn't exactly the same as your old one but should still work.

Home Owner from 18940

Oct 15, 2024 1:30 pm

Hello, Would it be possible to get the crank assembly that will work too as few windows the crank part has broke too.

Dave Sr. from SWISCO

Oct 17, 2024 7:05 am

The operators would be the 39-091 and 39-092. The 39-557 spacer is sold separately. Take note that these parts don't include the link arms. I'm afraid they were discontinued so you would have to reuse the old ones if possible.

Home Owner from 18940

Oct 17, 2024 8:11 am

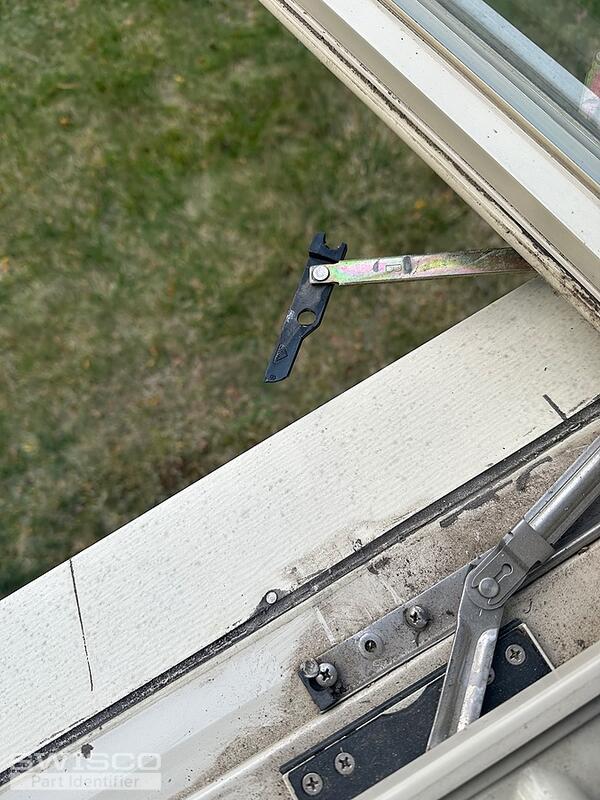

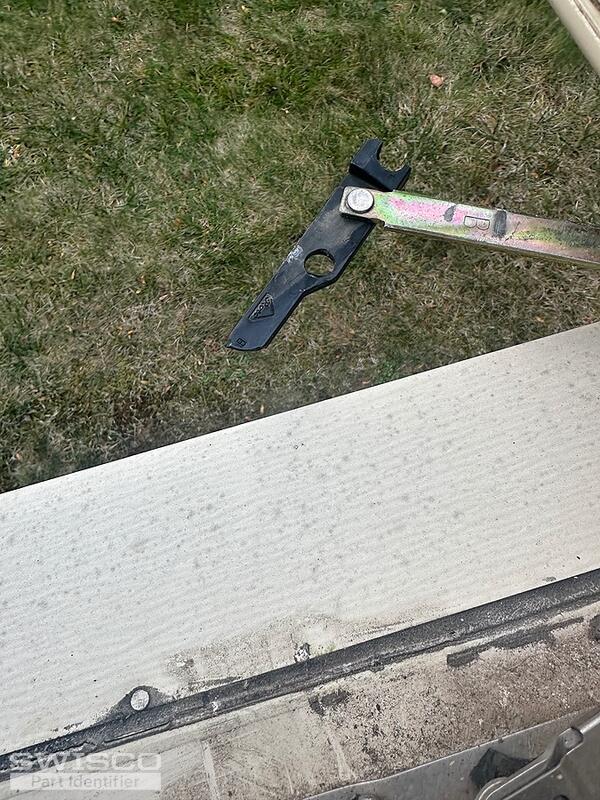

Hello do you have the parts below shown in the pictures?

5 user uploaded images

Dave Sr. from SWISCO

Oct 17, 2024 9:37 am

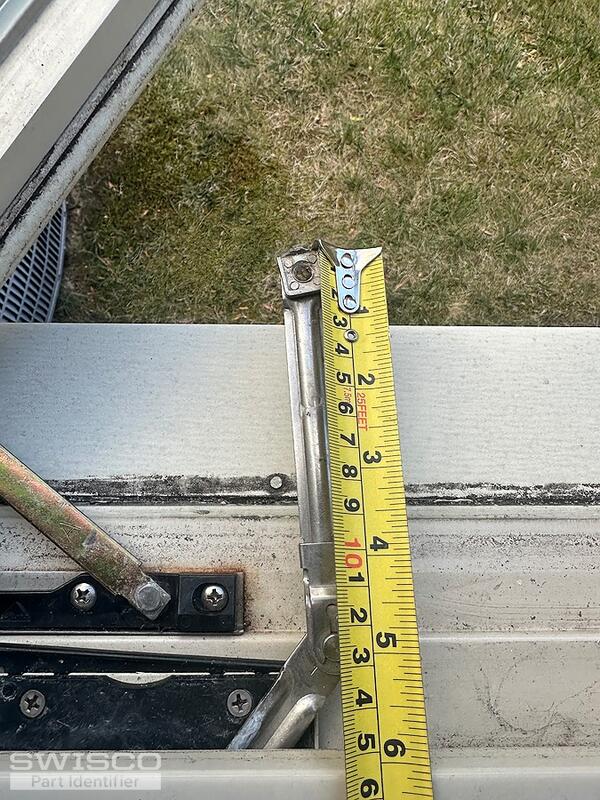

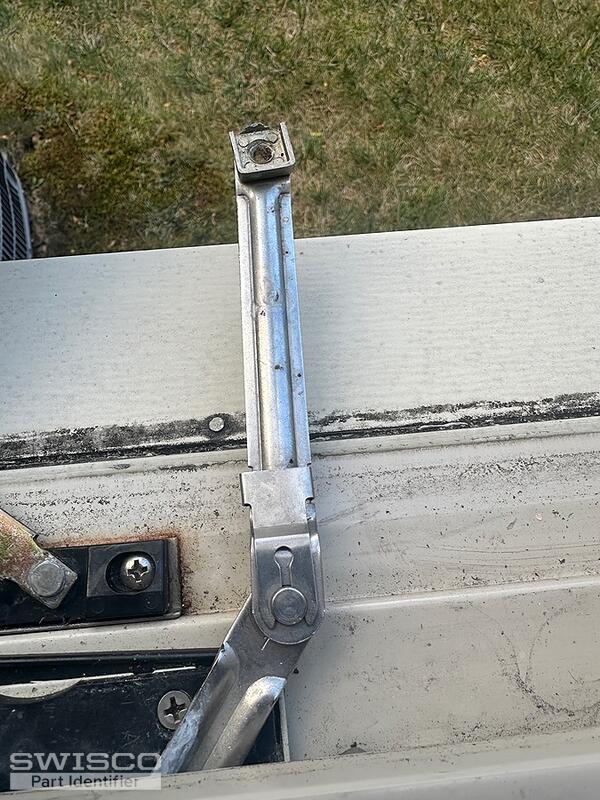

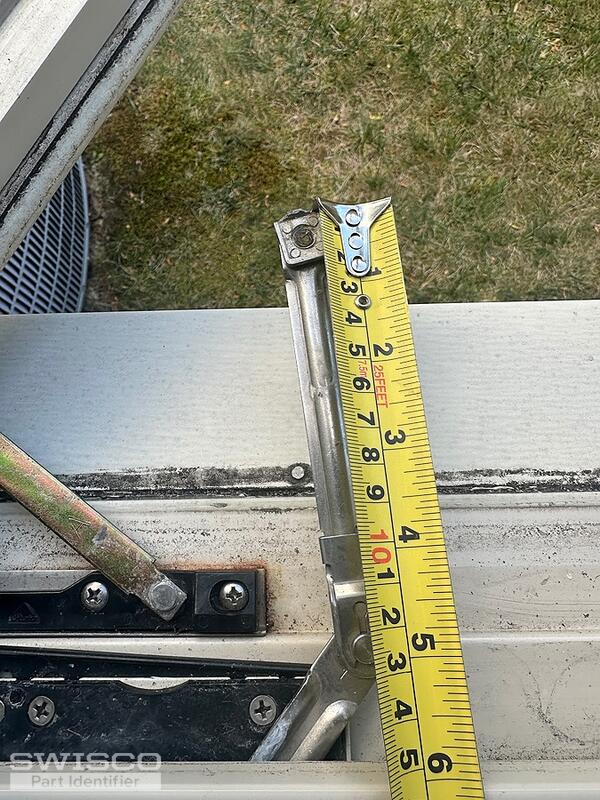

The part you're measuring is the link arm, which was discontinued and is no longer available. The last two photos show the hinge. Our best replacement option would be the 36-048 set that Tom mentioned in our first response.
