Require Top Sash Guide Replacement and cant locate correct piece : SWISCO.com

Handy Person from Venice Beach, California

Oct 25, 2024 2:11 pm

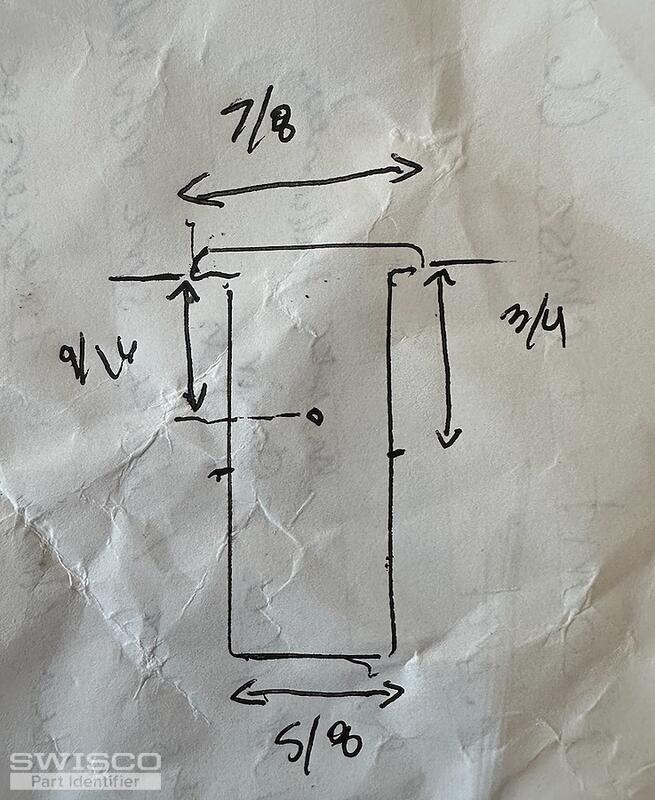

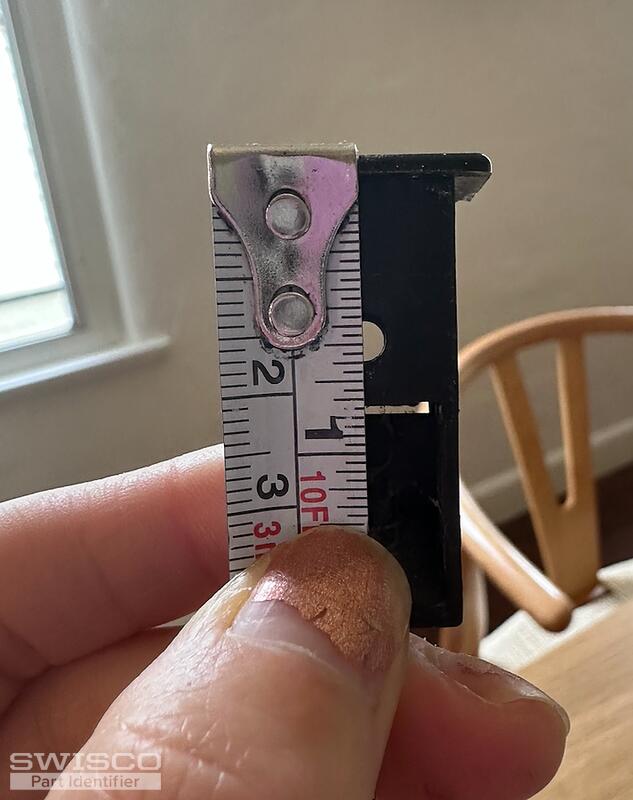

Hello team, we have purchased 2 types of Top Sash replacement parts, but keep ordering the wrong one. I tried measuring the part from my side but am not confident on the 9/16 measurement of the screw hole to top (see image) so would like help if possible to locate the right piece

5 user uploaded images

3 Replies

Emily from SWISCO

Oct 30, 2024 10:12 am

Hello!

Thanks for reaching out to us. I'm afraid I don't recognize this top sash guide at first glance. Please allow me to consult one of our senior experts. We'll reach out as soon as we have more information.

Paul from SWISCO

Oct 30, 2024 3:30 pm

I related two top sash guides on this page. The 18-172 looks very close to yours but the hole is 7/16" down. The 18-203's screw hole is 9/16" down but it's offset. I recommend you take a look at the specifications and see if you think one of these parts can be adapted to your window sash.

Side view of 18-172

Detail of 18-172

Dimensions for 18-203
