Revere dual arm operator

Home Owner from Katy, Texas

May 9, 2020 4:08 pm

I need to replace a dual arm casement operator. It is from a Revere window and has the number 1491-220B.

The arms are numbered R S-1491-265 and 260.

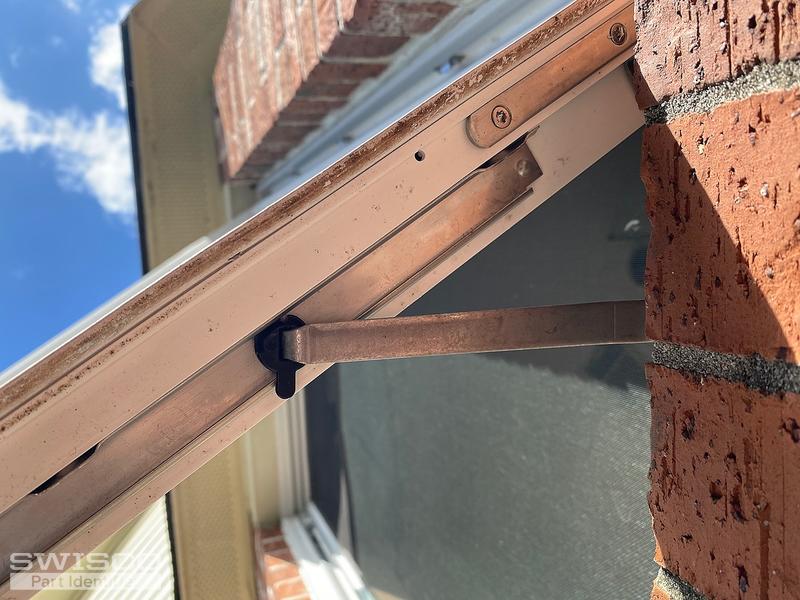

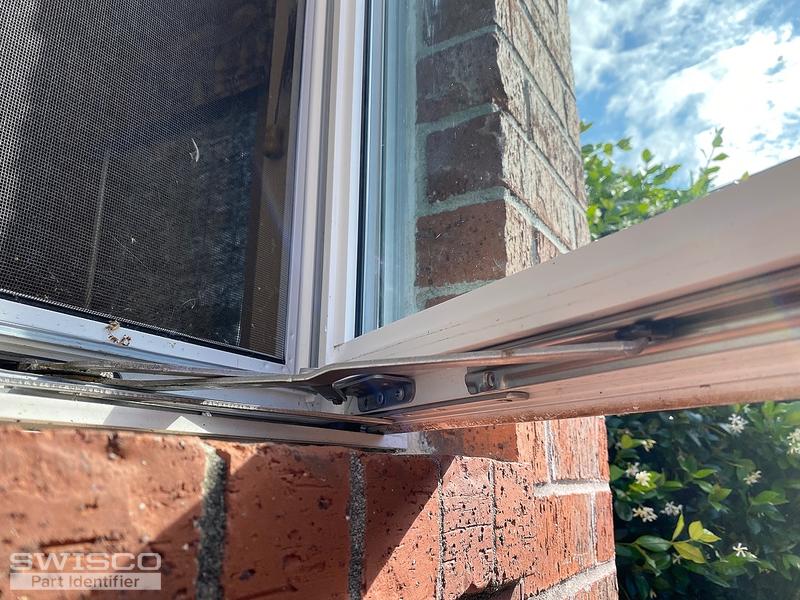

3 user uploaded images

4 Replies

Tom from SWISCO

May 13, 2020 9:11 am

We carry a few different operators that may match this. In order to confirm the best one, can you detach the long straight arm from the track and show me what the end looks like?

Home Owner from Katy, Texas

May 13, 2020 10:37 am

Enclosed are 2 views of S 1491-260. The arm is bent upward at 90 degrees at the end to fit in the plastic piece in the track.

I haven't seen able to figure out how to get the piece out of the track.

2 user uploaded images

Dave Sr. from SWISCO

May 14, 2020 8:49 am

I recognize this. You have an older style Ashland operator which I don't believe is still available. Take a look at the 39-253LB Encore operator instead. This is the one I would recommend as a replacement. It operates similarly to the one you now have, but you may also need a new 39-529 slider and maybe even a new 39-528 track if you can't reuse the originals. You'll also need the 39-451 handle/cover, which is sold separately.
