Reynolds Window Pivot Lock
Hello,

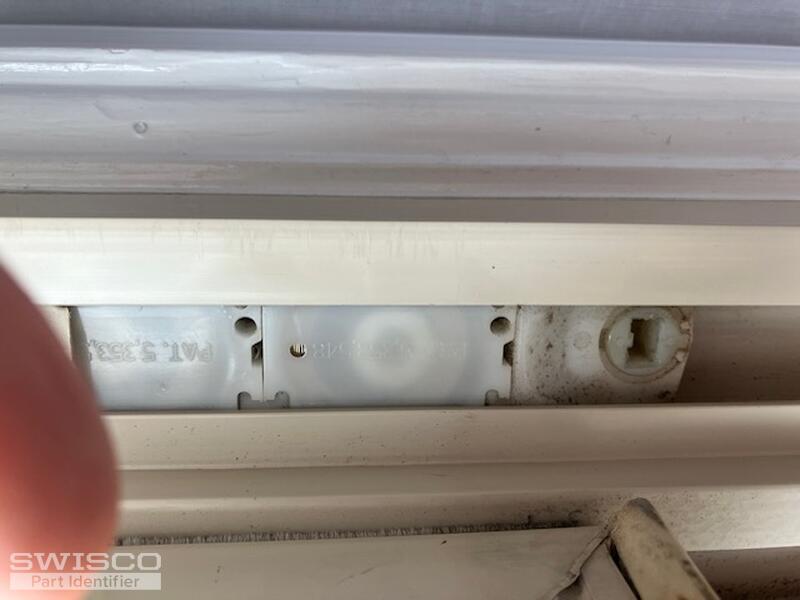

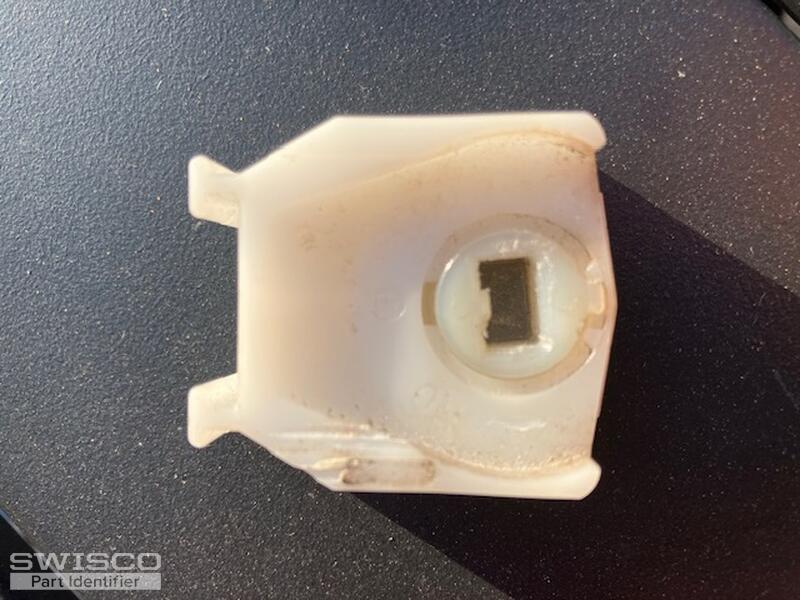

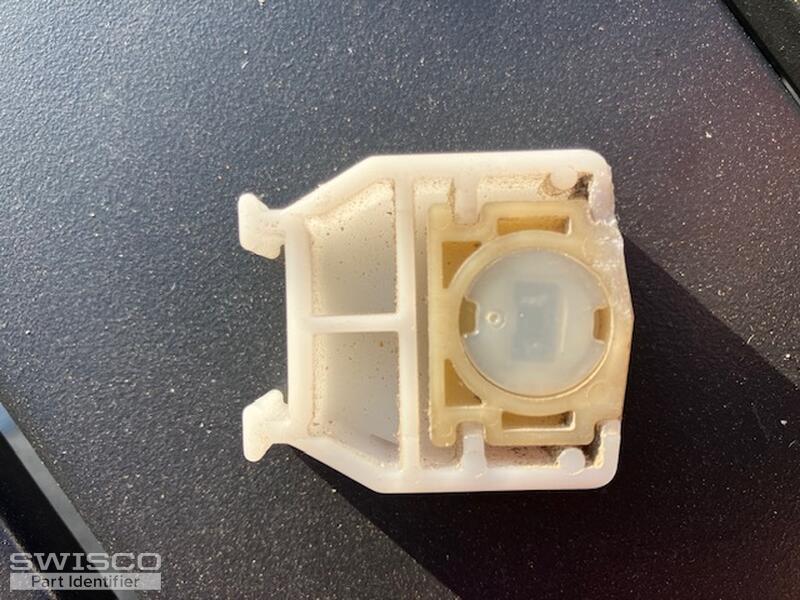

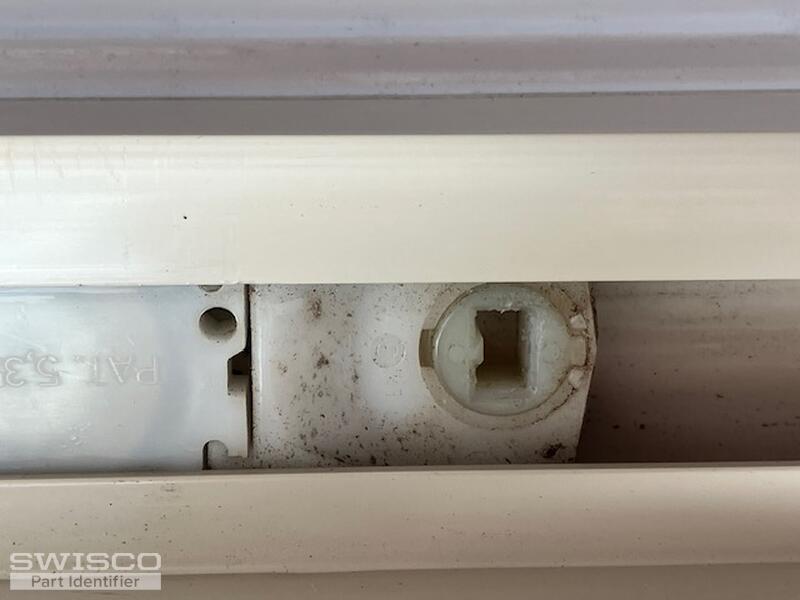

We'd be happy to look into this for you but we'll need a bit more information to get started. first, we'll need to see the pivot shoe fully removed from the window to compare to our inventory. We'll also need you to write out the exact width and thickness of your part to narrow down your options. See the related videos to help you through the process. Thank you!

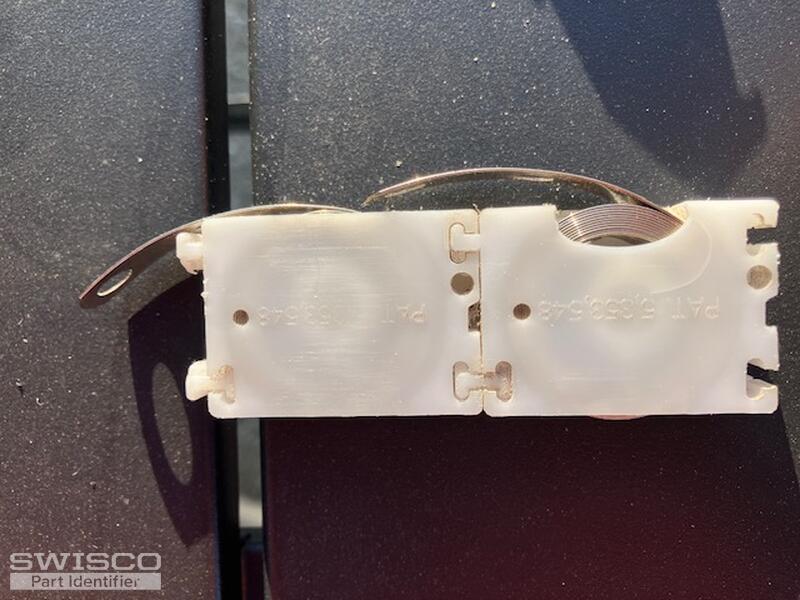

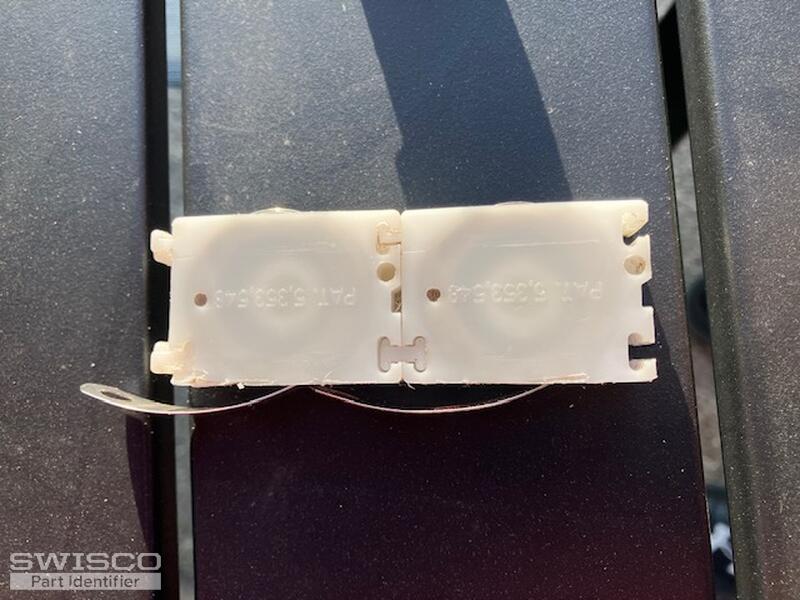

Thanks for getting back to us. Unforutnately, we do not carry an exact match for your coil balance assembly but we have recommended the 15-087 housing pivot and S180 coil springs in the past. We can't make any guarantees but see another customer's post here, along with our expert's advice, to see if this might work for your application.
Great! Just let us know if you need anything else.

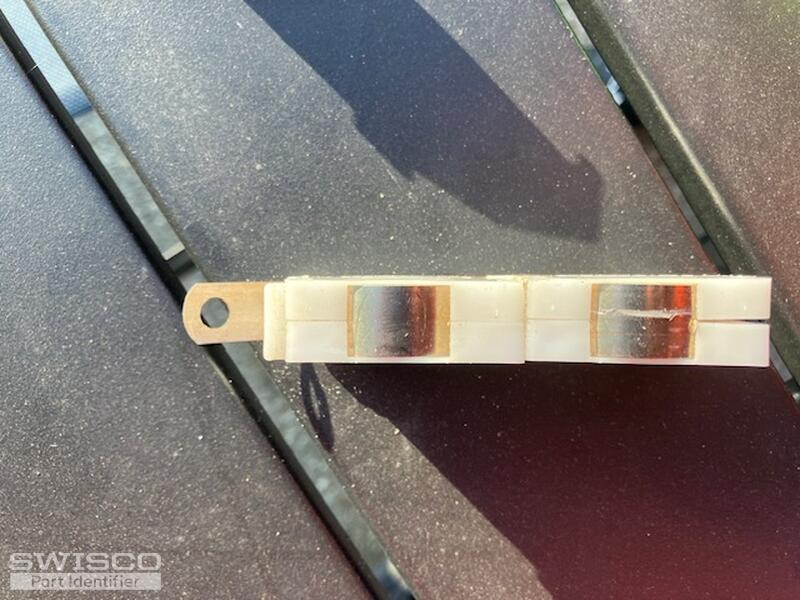

Good catch. I measured one of the 15-086 tandem housings from our inventory to be sure and it is 9/16" thick. Unforutnately, we do not carry a smaller option that is compatible with the 15-087 housing pivot. If you're sure that the 9/16" housing won't fit your window jamb, the best option would be to see if you could reuse your original tandem housings with the 15-087. We can't guarantee that it would work but it would be your best option since your original hardware is no longer available.
