Rh 10" hinge arm assembly

A quick learner from Casper says:
October 28, 2019
I have ordered part # 39-352 and #39-395 and the part that screws into the window is the wrong size. The size in the picture needs to be 8" and the 10" arm needs to be riveted next to the first screw hole like the picture. Do you have this part?

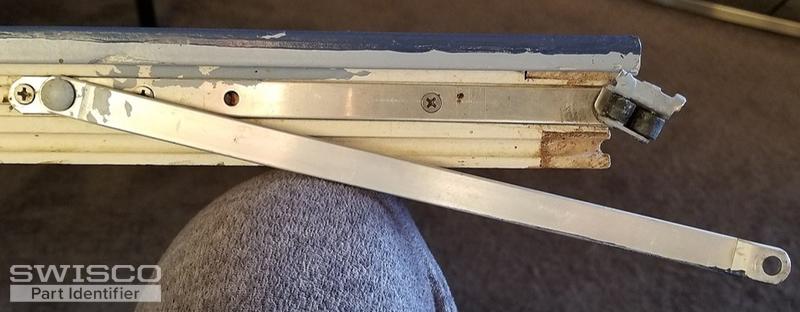

Thumbnail of the uploaded file named 20191028_075404.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
November 4, 2019

Perhaps I can be of help. We do not carry an 8" Pella hinge arm. The shortest we carry are the 39-351 which is the Left hand and the 39-352 which is Right hand. Take note Left and Right are determined by the exterior of the window. If these arms will not work on your window take a look at the 39-363 and 39-371 hinge shoe parts. See if you can just replace these parts on your existing hinge.
RH 9-5/8" Hinge Arm Assembly, Pella
RH 9-5/8" Hinge Arm Assembly, Pella
39-352
$87.81
RH 10" Hinge Arm Assembly, Pella
RH 10" Hinge Arm Assembly, Pella
39-395
$47.70
LH 9-5/8" Hinge Arm Assembly, Pella
LH 9-5/8" Hinge Arm Assembly, Pella
39-351
$87.81
Pella Pivot Plate Hinge Shoe
Pella Pivot Plate Hinge Shoe
39-363
$6.65
Pella Hinge Shoe Pair
Pella Hinge Shoe Pair
39-371
$36.52
