Right Hand Casement Window Parts

Quick Learner from Seattle

Nov 6, 2024 8:59 pm

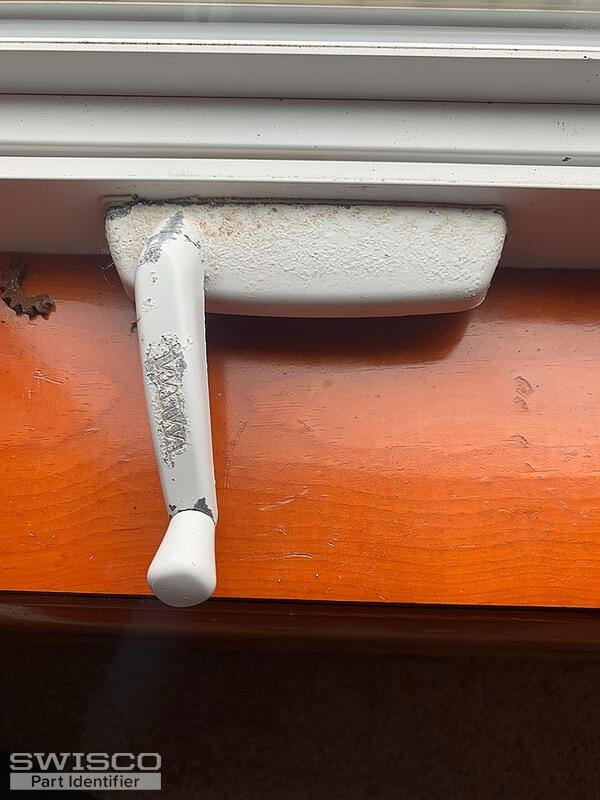

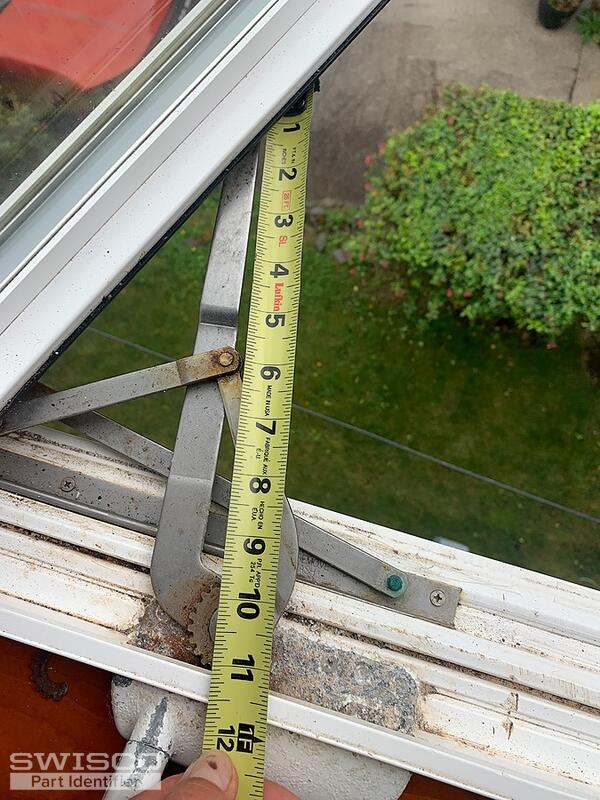

Hello, I would like to replace the pictured window parts: (1) Sill mounted dual arm operator, and (2) cover/handle. The dimensions appear to match the dimensions for Product Code: 39-253RB. 4 15/16" base and 4 7/8" cross-arm. The original window brand is Milgard.

5 user uploaded images

8 Replies

Casey from SWISCO

Nov 7, 2024 4:04 pm

Hello,

I agree that your operator resembles one of the Encore-style replacements shown in the video below. The determining factor would be the fitting that attaches the long arm to the sash track. Take a look and let us know if you have any other questions. Thanks for posting.

Quick Learner from Seattle

Nov 8, 2024 12:42 pm

Will do. Thank you very much.

John

Casey from SWISCO

Nov 8, 2024 1:21 pm

We're happy to help!

Quick Learner from Seattle

Nov 29, 2024 7:20 pm

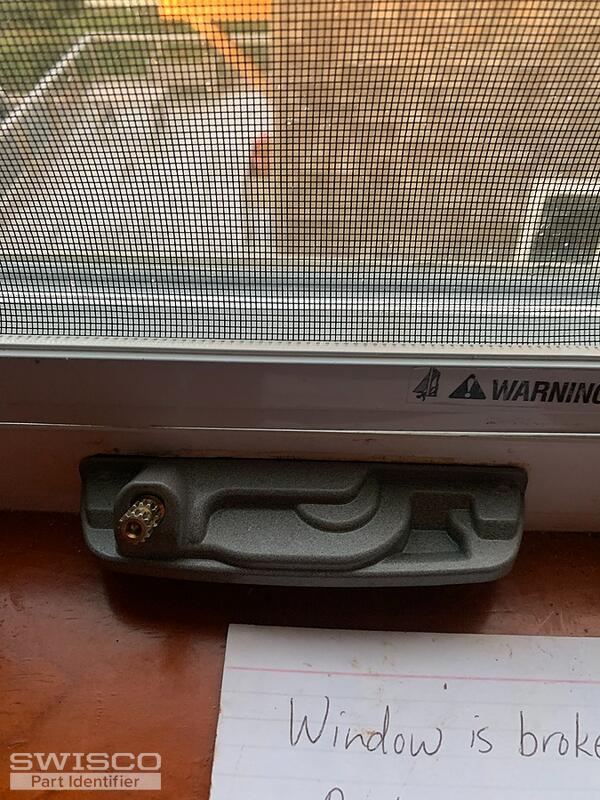

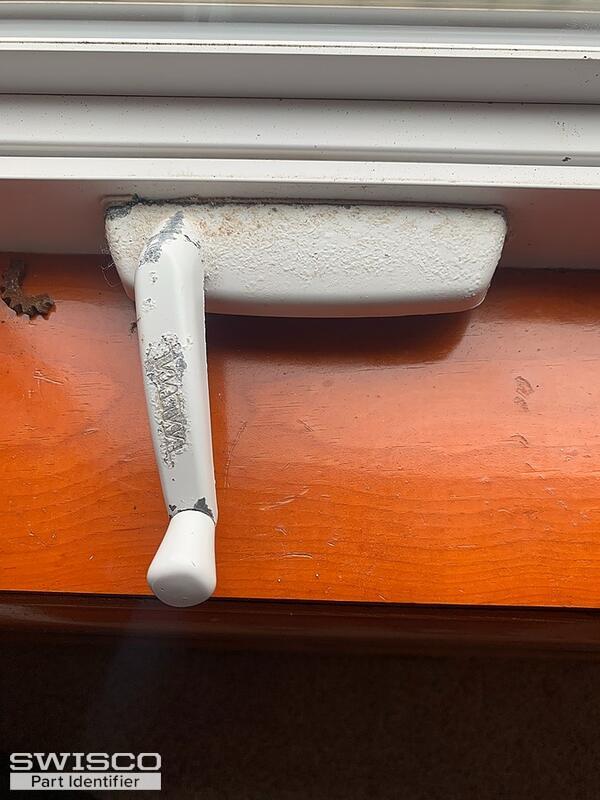

Hello. The dual arm operator fits our window perfectly (pictured below). Thank you! I need to replace the cover and handle pictured below. Please tell me the correct part number and how it is attached/mounted.

Thank you.

John

2 user uploaded images

Casey from SWISCO

Dec 2, 2024 8:11 am

We offer the 39-451 and 39-452 covers and handles for these Encore operators, as well as the new style 39-375 and 39-376 folding kits. Both options snap onto the operator base. Take a look to see which version you'd prefer.

Quick Learner from Seattle

Dec 2, 2024 12:10 pm

Thank you very much!

Casey from SWISCO

Dec 2, 2024 12:15 pm

We're happy to help! Just let us know if you need anything else.
