Right Hand Pivot Bars

Home Owner from Marshfield Mass
Need two right hand pivot bars
1 user uploaded image
7 Replies
Paul
Paul from SWISCO
SWISCO
Expert

Hi there!

Can you show us how this pivot bar mounts?

Thank you!

Home Owner from Marshfield Mass

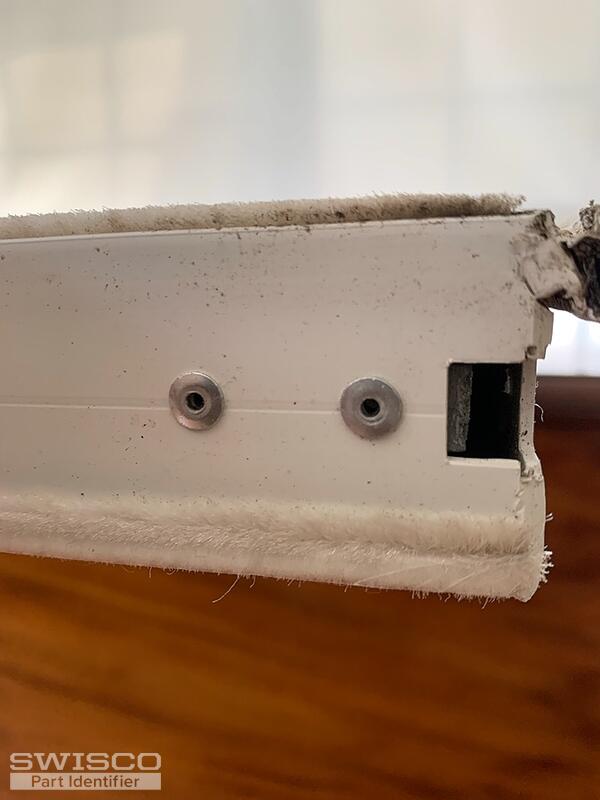

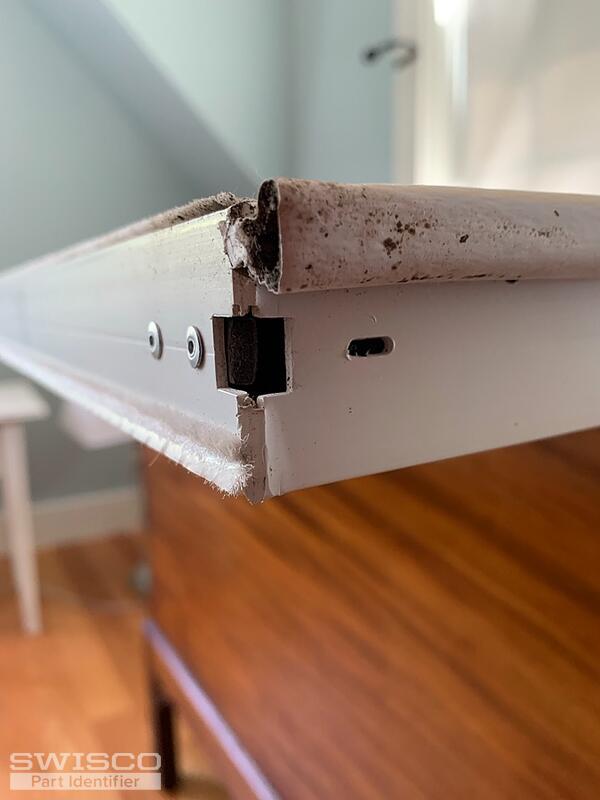

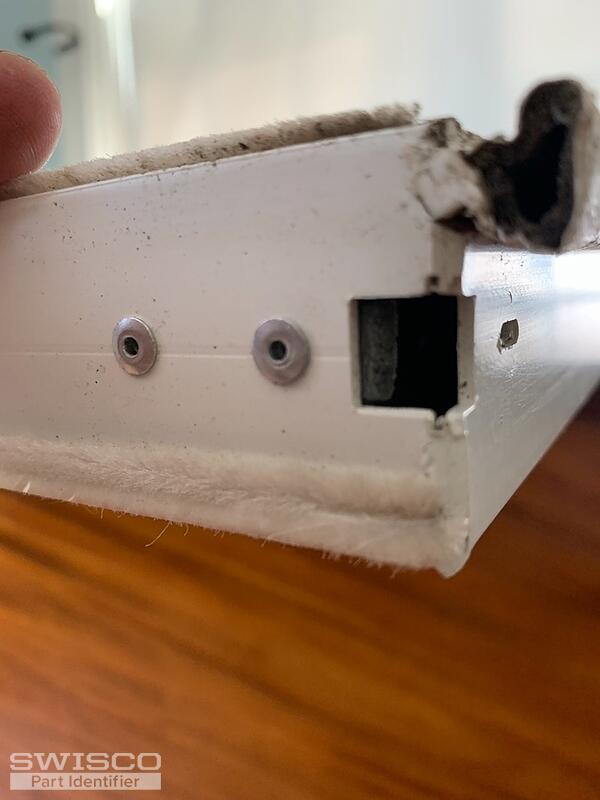

The pivot bar mounts on the inside of the frame using rivets . You can see them in the photos. Part of the pivot bar is still attached to these rivets . Repair videos i have seen demonstrates the rivet heads can be snapped off using a paint knife . Then new pivot bars installed using new rivets . Hope this helps, Thanks
3 user uploaded images
Home Owner from Marshfield Mass
The pivot bar is attached to the frame using rivets . Part of the pivot bar is still attached on the inside of the frame . To install a new pivot bar the rivets are snapped off and new rivet use to install a new pivot bar .
3 user uploaded images
Paul
Paul from SWISCO
SWISCO
Expert

Thank you for the additional pictures. I believe you need our 26-423 pivot bar, but compare our dimensions to yours and see if you agree.

Quick Learner from MA
Can you replace the original rivets with screws??
Paul
Paul from SWISCO
SWISCO
Expert

Yes, that would be a better choice. I would use truss head screws.
