Right Hand casement window

Question

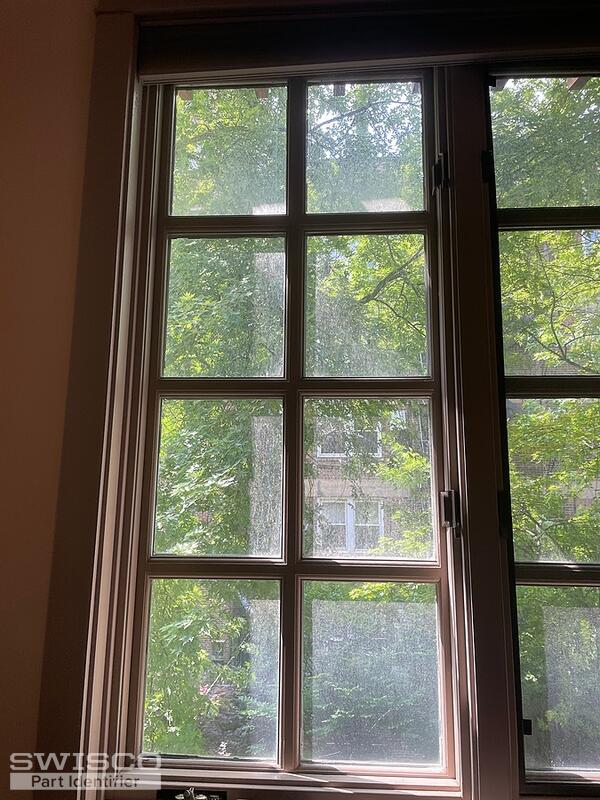

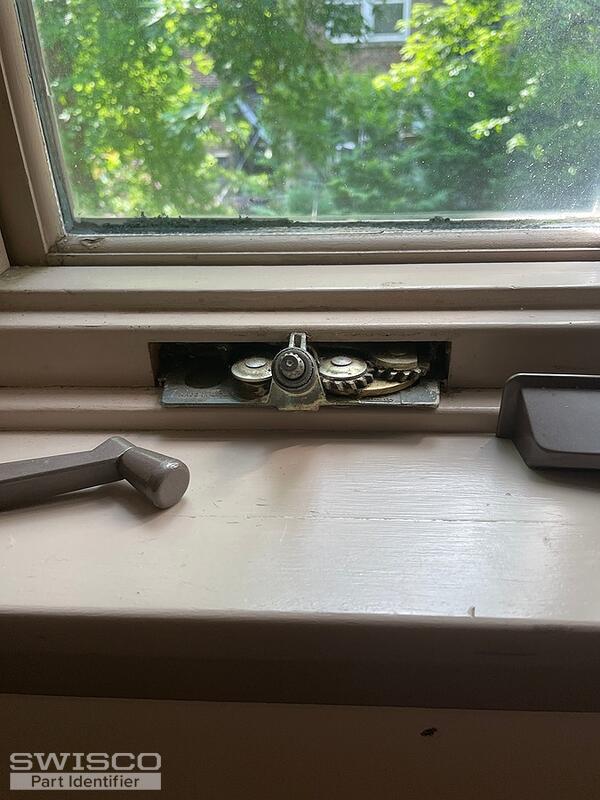

Photos with the window closed is the crank that needs to be replaced, crank does not work so we could not open the window. This is a right hand casement Visual Glass size is 22 1/2". We need one crank to be replaced.
Photos with the window open is of the adjacent window to show the crank details from overhead. This is a left hand casement.

Emily · Accepted Answer

Hello!

I recommend having a look at the 39-032 and 39-156. One of these may be what your window needs, depending on the size of the link arm. You'll have to measure as shown below to determine the best match.

Dimensions for 39-032

Dimensions for 39-156
