Right angle drawer socket

Question

My glide socket is a 90 degree style that mounts to a 3/4" segment of wood in the slot shown in my photos.
I bought four of the 32-119 socket pairs, per Swisco's oft-repeated advice regarding bracket sets like mine (see photos).

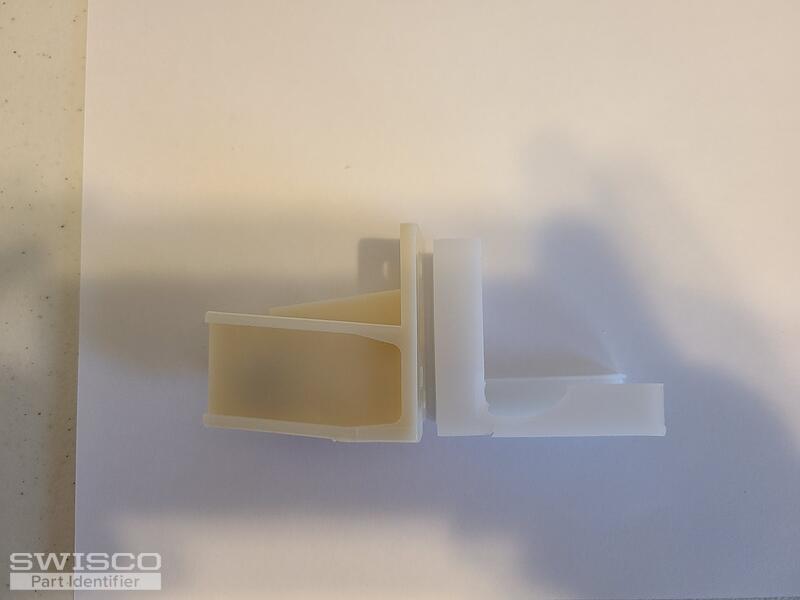

Dimensionally the glides do not fit in the sockets and the sockets are not at a right angle which would make them impossible to level out (see pics).

The measurements I come up with using a caliper on the glide are as follows

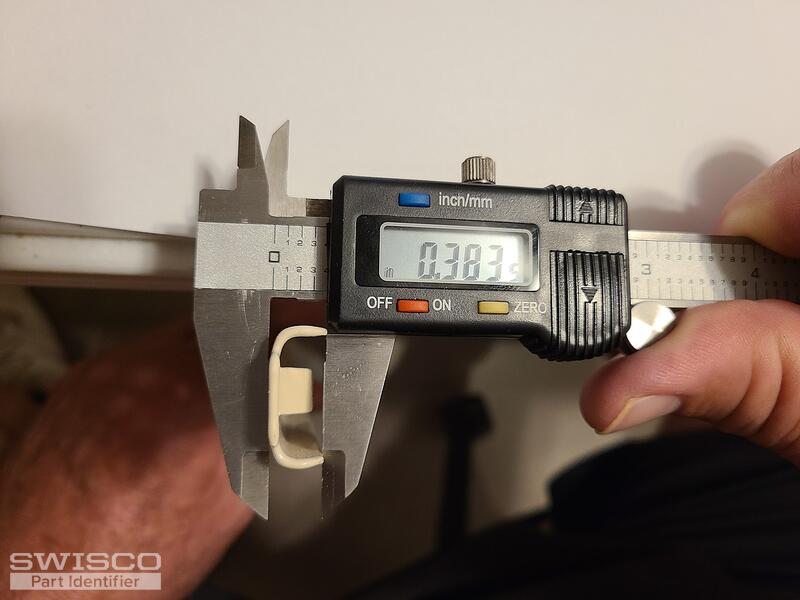

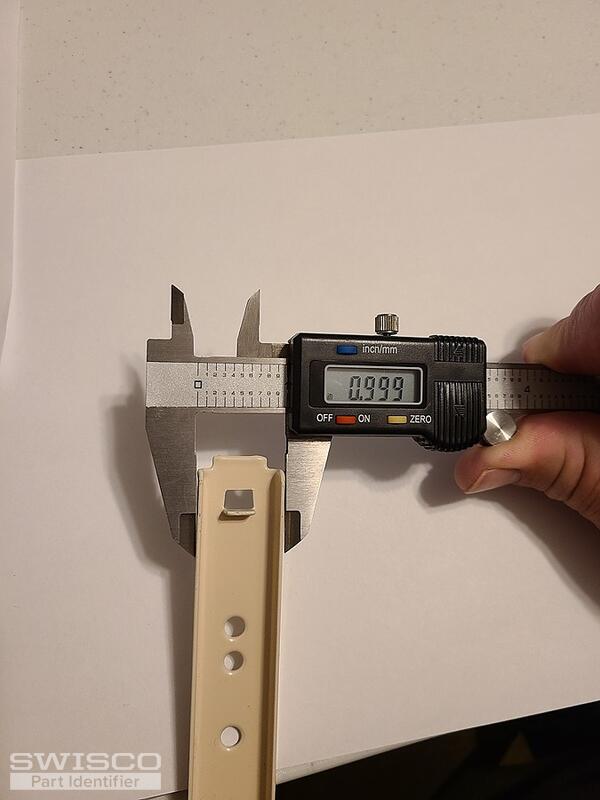

Height 1"; Width just over 3/8" but just under 7/16"

Casey · Accepted Answer

Hello,

Unforutnately, we do not carry a drawer socket with a width between 3/8" and 7/16". Our closest options would be the 32-012 or 32-089. Review the specifications below to determine if one of them could work for your repair. Based on your track size, the 32-012 would be your best bet. Look them over and see what you think.

Profile diagram of 32-012

Profile diagram of 32-089
