Right hand awning crank

A quick learner from USA says:
March 20, 2023

Thank you, Andy

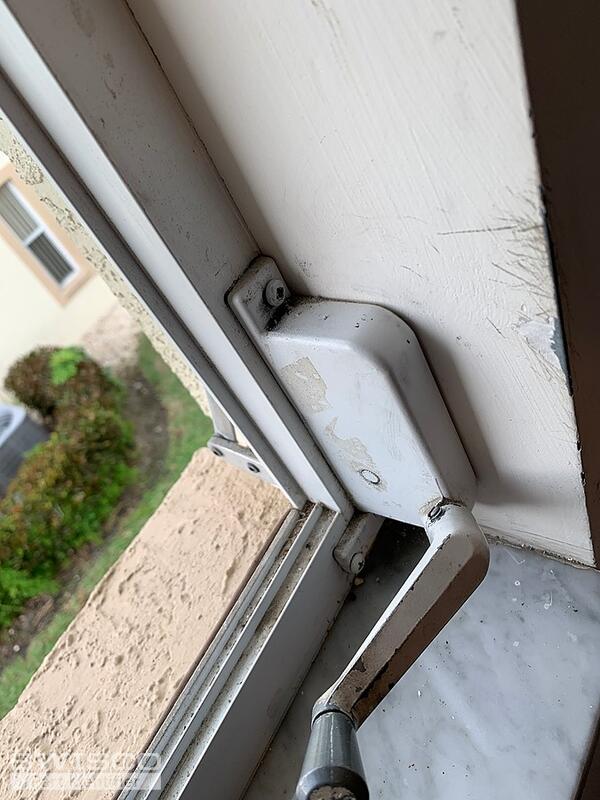

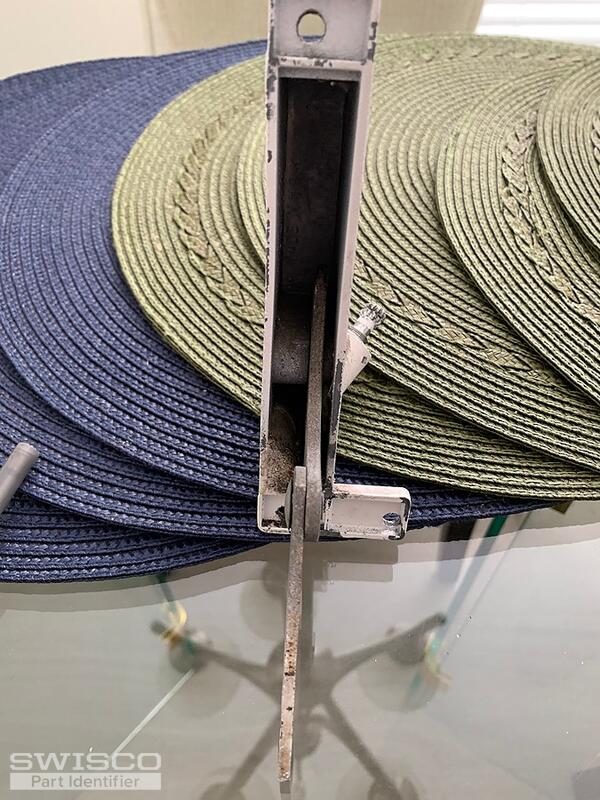

Thumbnail of the uploaded file named IMG_0748.jpg
Thumbnail of the uploaded file named IMG_0750.jpg
Thumbnail of the uploaded file named IMG_0752.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:
March 21, 2023

Thanks for reaching out. I recommend taking a look at part 39-025 and its opposite part 39-026.

The only difference in the measurements is the distance between the installation holes at the bottom of the the operator. Take a look at the dimensions and carefully compare them to our 39-025 to confirm that it might work as a replacement.

Dimensions for 39-025
Dimensions for 39-025
A quick learner from USA says:
March 22, 2023
Jasmine

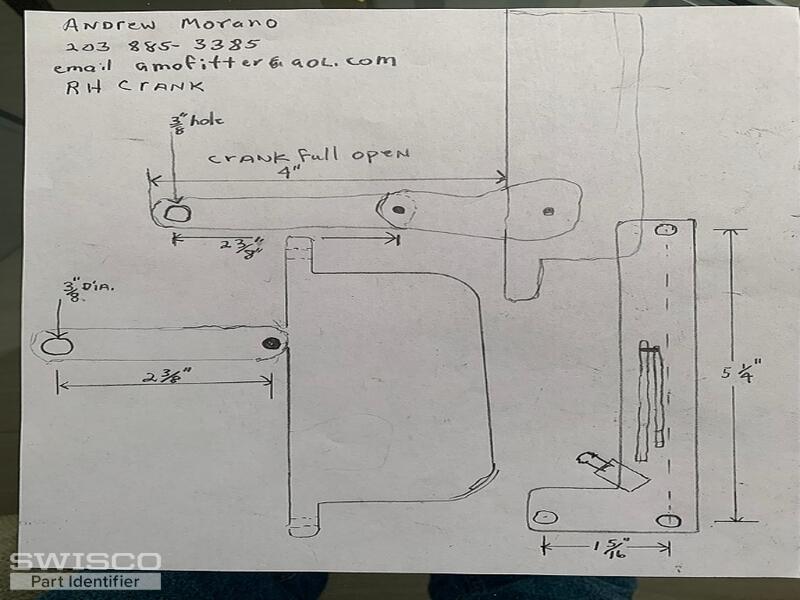

I looked at the recommended crank the 39?0 25 and I'm concerned about the inch and an eighth measurement at the bottom two holes. My crank assembly is an inch and 5/16 also on your side view, the crank arm has an offset in it mine doesn't it's just straight, and if you look at my drawings my arm at 2 3/8 needs a 38 hole in order to clip onto the existing hinge. Yours comes with a screw meaning I would have to drill out the crank arm on the window in order to screw that together, I was looking at the 39?017 crank after looking at my drawings and my pictures do you think this is a better option please let me know
Andrew
Profile picture of Jasmine
Jasmine from SWISCO responded:
March 22, 2023

I understand your concerns. Unfortunately, we do not have one that fits your exact specifications, but our 39-017 might be worth considering. This one has two installation holes on the top but since yours is offset, it will likely align with your existing installation hole. Take a look over the specifications and see what you think.

Dimensions for 39-017
Dimensions for 39-017
