Right hand awning operator with no manufacture markings

Home Owner from Mechanicsburg, Pennsylvania, USA

Jun 3, 2021 6:19 pm

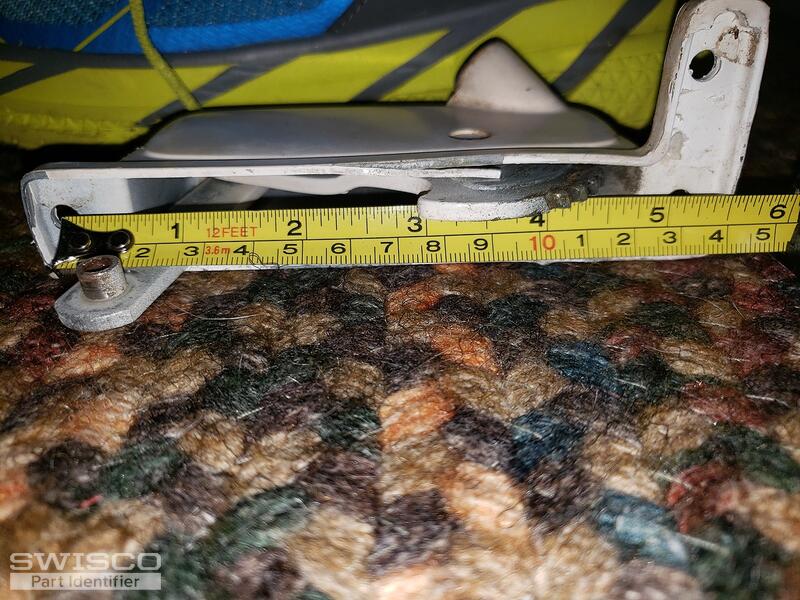

Top hole to bottom holes 5 1/4 inches
Distance between bottom two holes is 1 1/8 inches

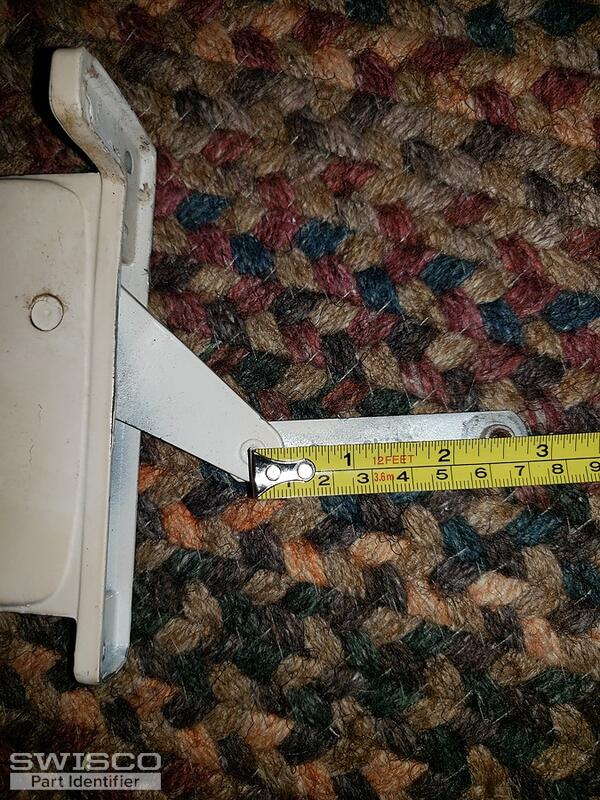

The arm length from center of pivot point to screw attachment hole is 2 1/2 inches
The screw hole appears to be 3/16 inch

2 user uploaded images

4 Replies

Tom from SWISCO

Jun 9, 2021 12:20 pm

Hello! Based on your dimensions and the design of the original, I think our 39-025 and 39-026 are a good place to start. Look these products over and let me know what you think!

Dimensions for 39-025

Home Owner from Mechanicsburg, Pennsylvania, USA

Jun 9, 2021 6:46 pm

I was thinking the same. Will the 1/8 inch difference in arm length cause any problems?

Tom from SWISCO

Jun 10, 2021 8:41 am

No, I don't think it will. There's actually a little bit of play in the linkage for this kind of part, at least in how it connects to the window. You can get away with a difference in arm length as long as it's not too much.
