Rivets that connect elbow parts + parts to slide bar

A quick learner from Cape Coral Florida says:
I can't identify the brand of jalousie windows.
I need the rivets, rivet casing/washer and clips for
(a) connecting elbow parts together and
(b) connecting the parts to the side wall track.
(ie. I've already purchased a couple of new crank
boxes, but the rivets I bought to connect them to the
rest of the apparatus are a tiny bit too short (so the
clips can't be put in the other side).
I also need one of the elbow combos depicted in
the photos (which pushes the top window out on the
side of the window opposite the crank).
Thumbnail of the uploaded file named ACCE4041-2C59-4249-9BCB-AB7C2E86E047.jpeg
Thumbnail of the uploaded file named F33EC973-7A70-43C2-AEA0-3E41798AC6CD.jpeg
Thumbnail of the uploaded file named 8C912C97-B8B3-4D1A-A66F-04D91B0CF299.jpeg

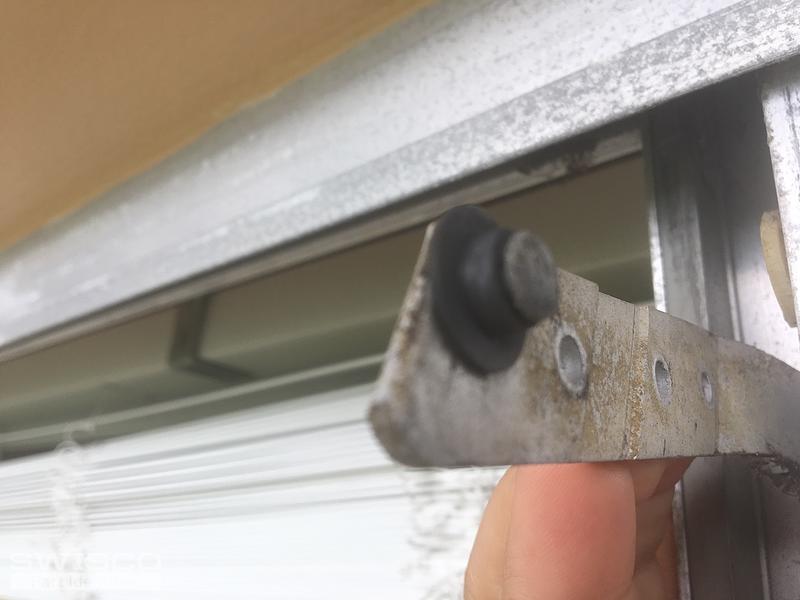

Thumbnail of the uploaded file named E4E1DAD2-DB8E-4786-A31A-DB3F24E200EC.jpeg

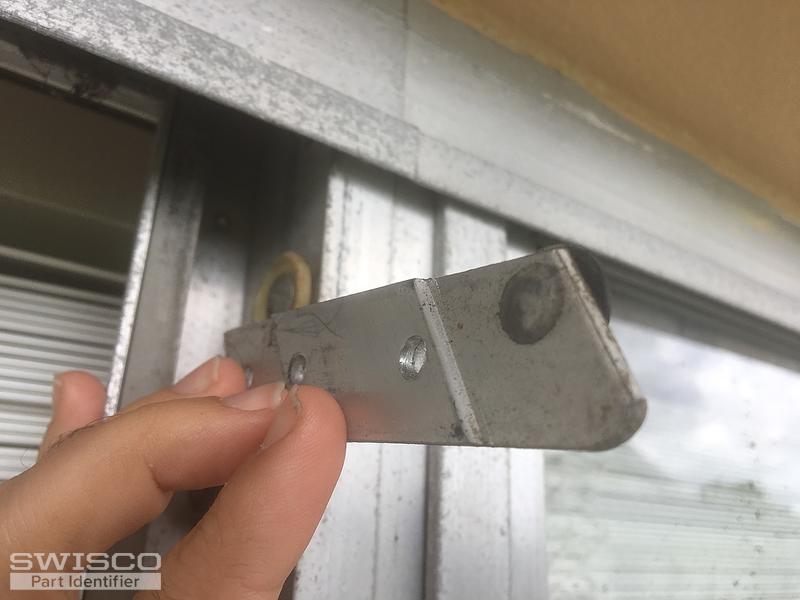

Thumbnail of the uploaded file named D9604BED-2944-4FD3-9271-0A0498FFD30D.jpeg
A quick learner from Cape Coral Florida says:
The parts that you suggested don't look anything like what I need.
So I sent a few more photos.

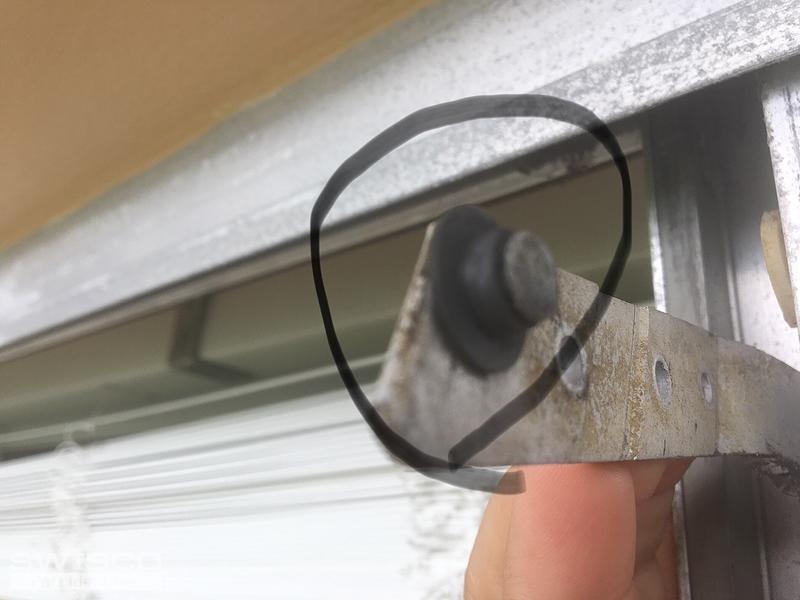

What I need are the connecting rivets with sleeves and clips (two sizes: large ones to connect moving window components to each other (see elbow for example) and smaller ones to connect moving components to the side wall).

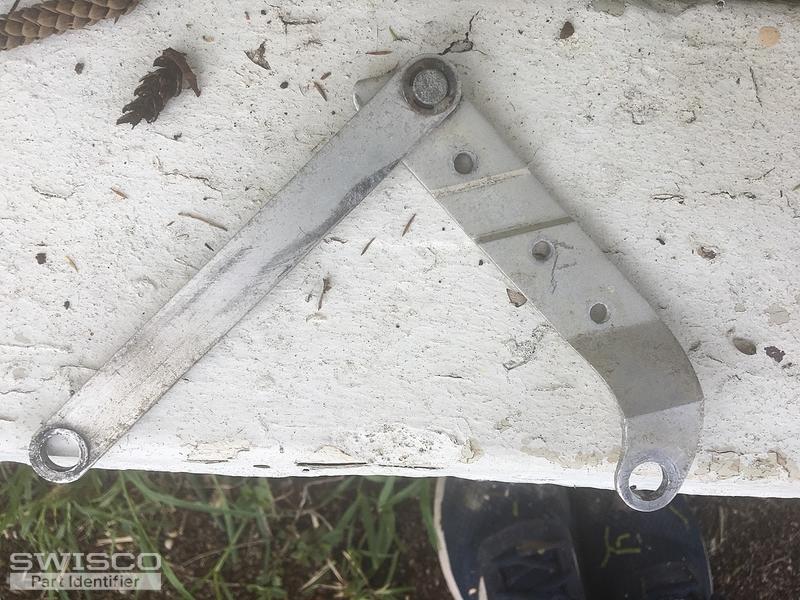

I also need the two pieces for a movable elbow (see highlighted photo).
Thumbnail of the uploaded file named F2C39297-93F5-4D2B-BBFA-D870941FEEF7.jpeg
Thumbnail of the uploaded file named 131345B4-6F1B-4E77-810B-56268F439011.jpeg

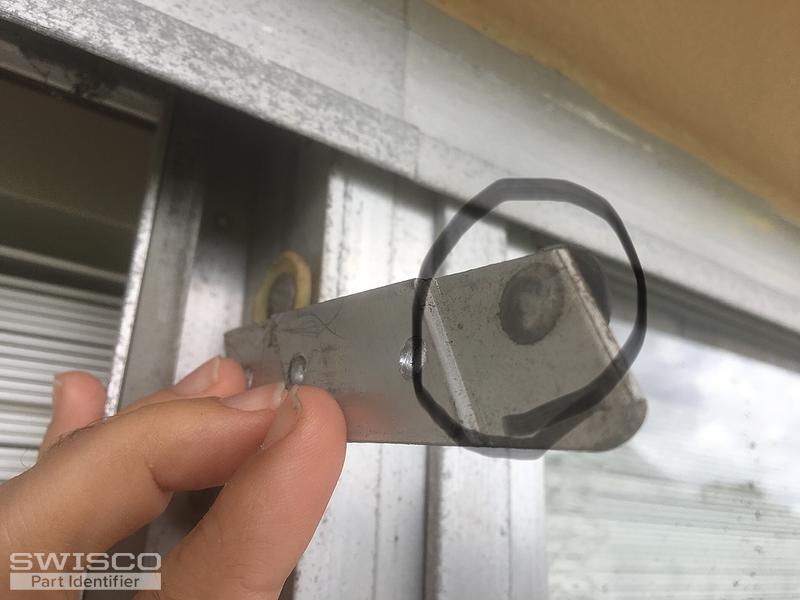

Thumbnail of the uploaded file named 73374B16-A253-4FD1-AF36-B811B849C3CC.jpeg

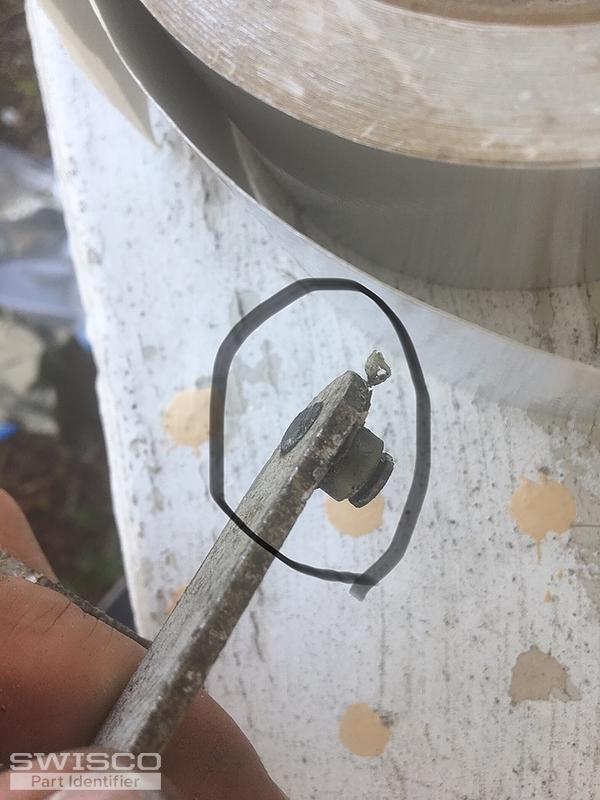

Thumbnail of the uploaded file named 63A8B622-7D64-45DB-B751-A7C34A7A7558.jpeg

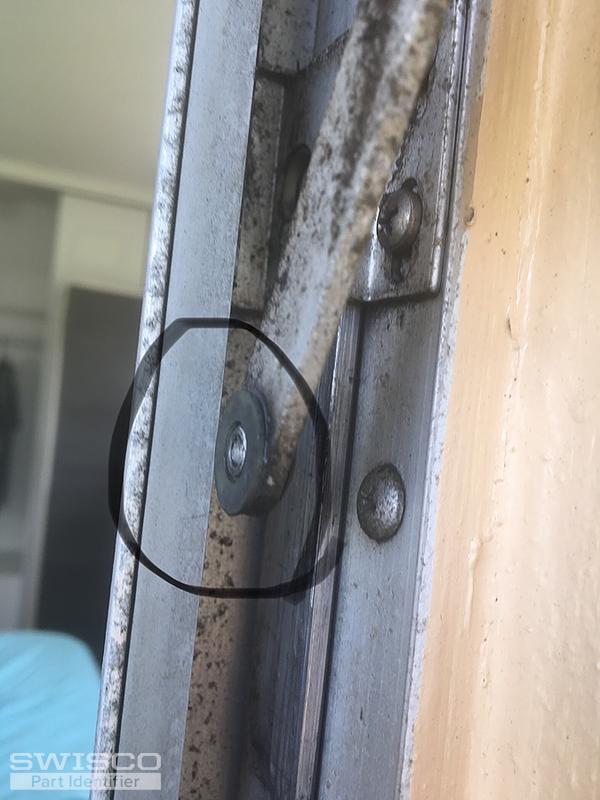

Thumbnail of the uploaded file named BE54BBD0-D2B7-4735-9D95-7B0B11D943BF.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

I'm sorry for the confusion. Currently, we are trying to research your best replacement options. Jalousie windows tend to be on the older side and it can be hard to find exact replacements when it comes to hardware. Please give us a bit more time to research this for you and we will reach out as soon as more information is available. Thank you!

Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Hello,

We appreciate your patience while we researched this for you. Take a look at the 33-077 groove pin, 33-206 washer and 21-161 E-clip ring. Compare the specifications of these parts and see if these could be the parts you need to fix your Awning window. Thank you!
