Roller Assemblies for Old Sliding Patio Door

Start a new Discussion

Home Owner from Washington Grove, MD 20880

Jul 9, 2025 9:26 am

Hello,

I need 2 assemblies of top rollers and 2 of bottom rollers.

Size

TOP

W 1 inch. and 3/4 inch; L 1 inch and 7/8 inch

(If only nylon wheels are available, they are Diameter: 1.5 inch ; Width: 0.5 inch)

BOTTOM

W 0.5 inch L: 6 inch

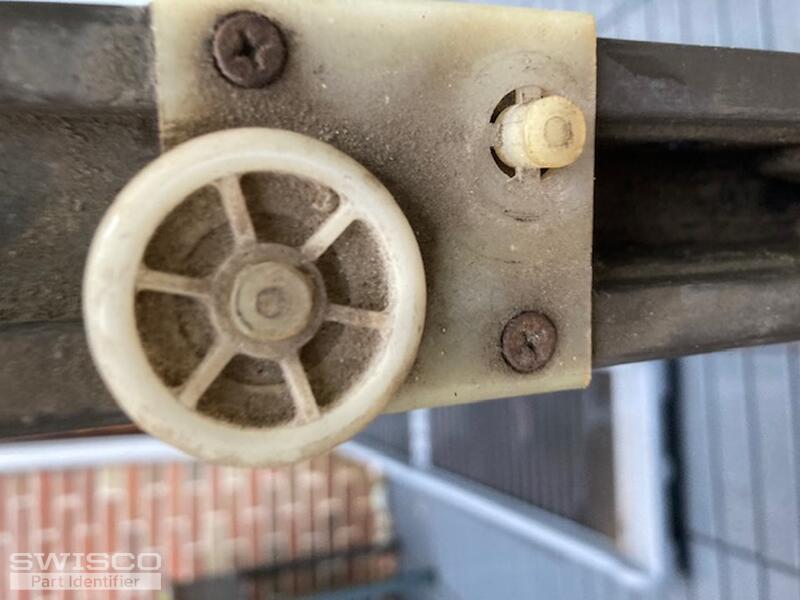

4 user uploaded images

2 Replies

Tom from SWISCO

Jul 14, 2025 1:57 pm

Hello! Your top roller appears to be a match for our 84-077. As for the bottom roller, our 81-018 looks similar but you'll have to remove the original from the door and compare it to our part to verify.
