Roller Assembly Replacement
Handy Person from North Carolina
Dec 30, 2018 6:11 pm

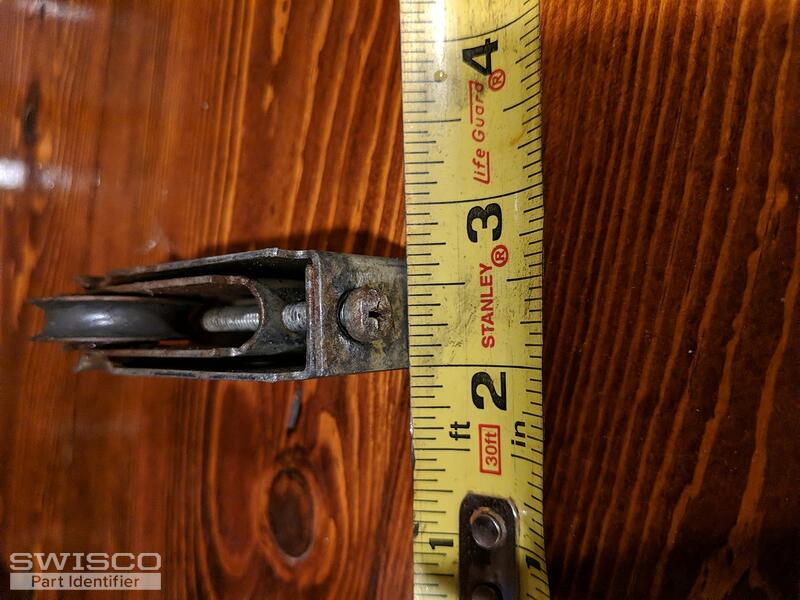

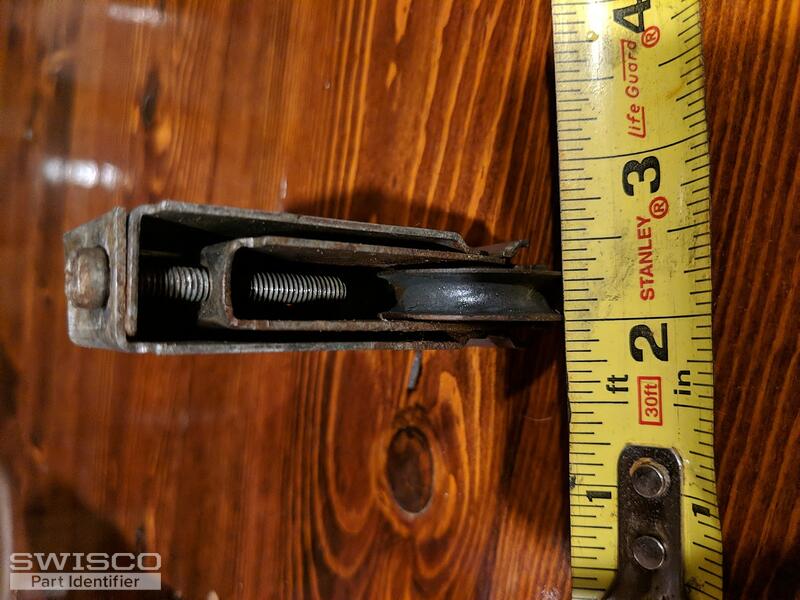

81-004 doesn't seem to match. This roller is 1 3/16 tall, the screw hole on top is about 1 1/8 from wheel end to first edge of the screw hole and about 1 3/8 from the other end to that first edge of the hole. The length is about 2 11/16.the width is about 11/16. I'm not sure which measurements are not relevant. I'm imagining the screw hole distance and the width and the height are most important. These measurements are give or take a 1/16. Please help and let me know if you still recommend the part above. The wheel diameter is 1 1/4.
5 user uploaded images
3 Replies
Quick Learner from North Carolina
Dec 30, 2018 6:33 pm
Follow-up question to the one I just posted:
Is there a replacement with the tandem option and should I consider that option? My sliders are 4 ft, total 8 ft door. They are old (circa mid-80s) and heavy.
Is there a replacement with the tandem option and should I consider that option? My sliders are 4 ft, total 8 ft door. They are old (circa mid-80s) and heavy.
Tom from SWISCO
Jan 3, 2019 10:24 am
We don't have an exact match to your dimensions, but there are a few close possibilities. Our 81-282 is 1-3/16" tall, but it's 3/4" wide. Meanwhile our 81-023 is 11/16" wide, but 1-1/4" tall. Could you possibly use either of these? Double check your dimensions to be sure.
I don't believe there is a tandem option for these rollers at this time.
