Home Owner from Ewing, NJ

Jun 15, 2024 6:47 pm

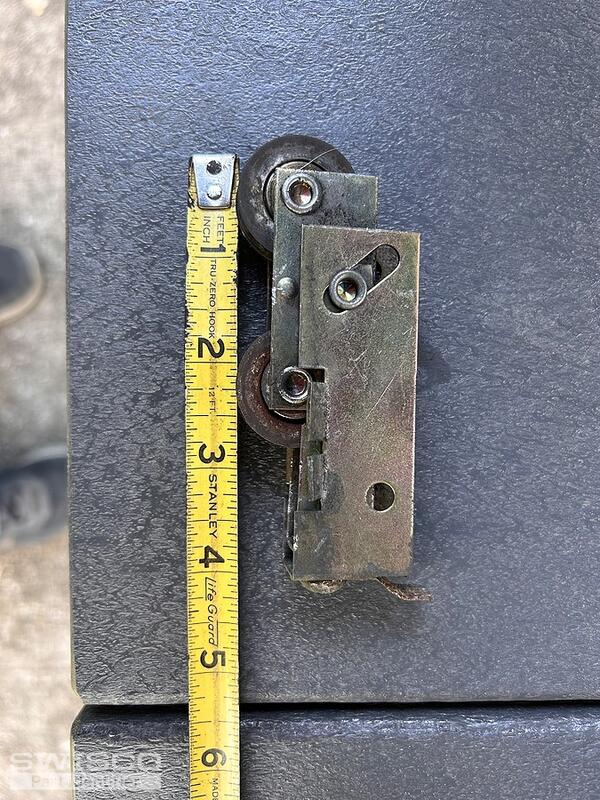

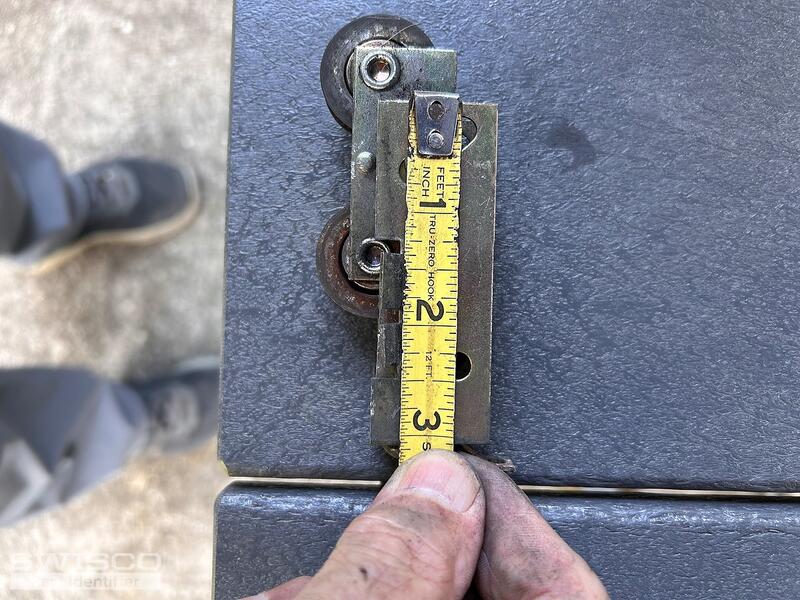

I need 4 roller assemblies depicted above. I don't have pictures of it installed, I just didn't think of that.

5 user uploaded images

4 Replies

Bob from SWISCO

Jun 16, 2024 11:41 pm

Thanks for posting. This looks a bit like our 81-030 Tandem Roller, so start there first. Compare with the dimensions listed below, and let me know if anything differs in any way.

Alternate image for 81-030

Home Owner from Ewing, NJ

Jun 17, 2024 10:03 am

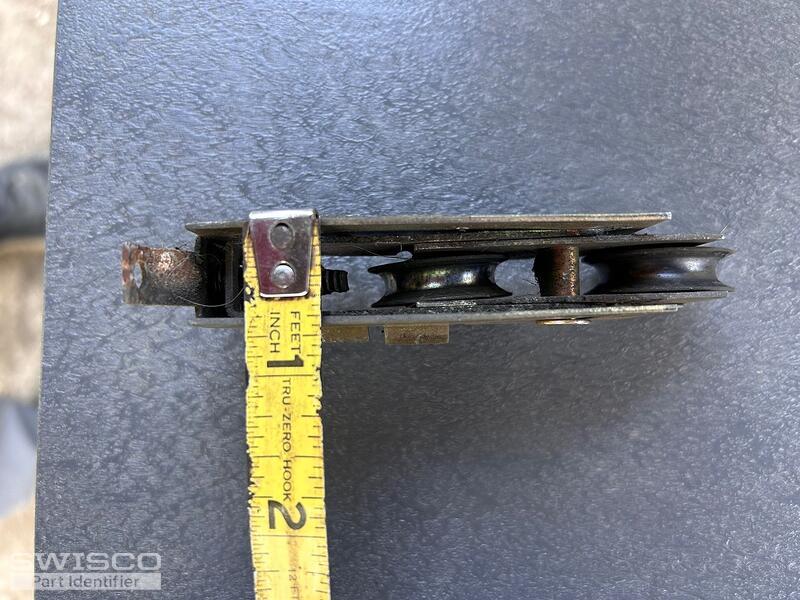

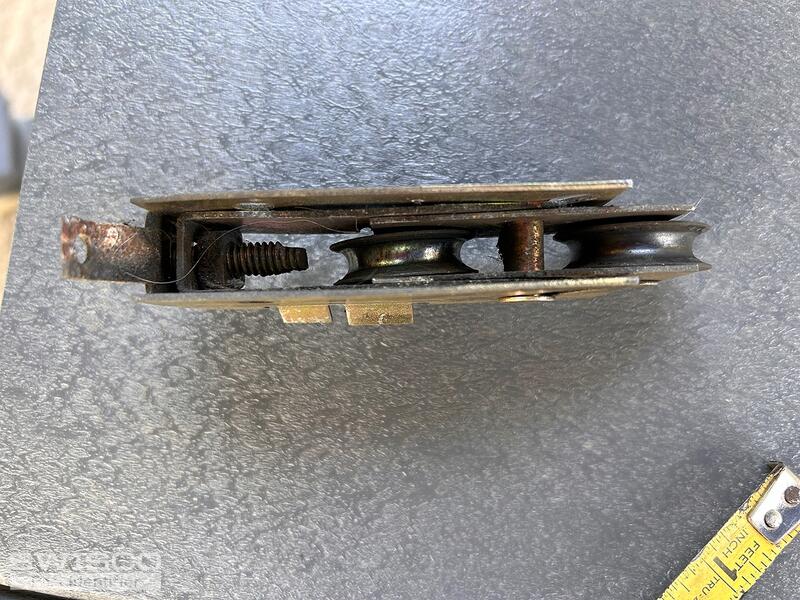

Please look at the first photo, you will see a tab that has a hole that the screw goes through to secure the roller assembly. The picture is not the best but the tab protrudes about 1/4 inch above the frame of the roller. Also, the ones I have are smooth bore holes with no threads.

Tom from SWISCO

Jun 18, 2024 9:24 am

Hey there, Bob's not here today but hopefully I can advise.

I see what you mean about the back tab. This kind of design isn't all that common as it used to be, so we don't have a ton of options. Looking at your design my first thought is the 81-056, but my major concern here is that the housing height (not including tab) is going to be too small on ours (1-1/8"), but look it over and see what you think.
