Roller assembly for mirror closet door
Quick Learner from Carson, CA
Feb 22, 2018 9:47 pm

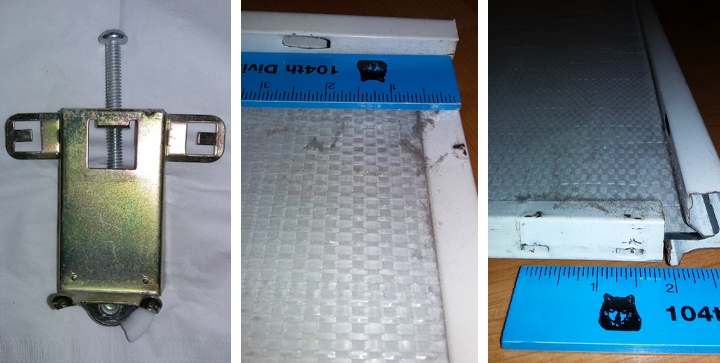

Do you have the replacement roller assembly for what's shown in the photo?
It has a concave roller (OD: 1 1/2") along w/ the dimensions for mounting slots shown in the photos: 1 5/8" (bottom; between outer-edges of the 2 openings) and 2 6/8" (side; from the bottom edge of the door to upper edge of the opening).
It has a concave roller (OD: 1 1/2") along w/ the dimensions for mounting slots shown in the photos: 1 5/8" (bottom; between outer-edges of the 2 openings) and 2 6/8" (side; from the bottom edge of the door to upper edge of the opening).
6 Replies
Paul from SWISCO
Feb 26, 2018 2:29 pm
I see you are showing us an older style roller assembly. Our 23-064 has since replaced that assembly. Take a look ans see what you think.
Quick Learner from Carson, CA
Mar 1, 2018 9:09 pm
Does anyone have the dimension of 23-064 that corresponds to that shown in the 2nd photo above: 2 & 6/8" (side; from the bottom edge of the door to upper edge of the opening)? Thanks.
Tom from SWISCO
Mar 2, 2018 8:44 am
I'm not sure what that dimension is in relation to our 23-064. Can you tell me what that measurement is on the roller itself?
Quick Learner from Carson, CA
Mar 2, 2018 11:53 am
Attached jpeg of 23-064 shows the 2 dimensions I need. Thank you.
Paul from SWISCO
Mar 6, 2018 9:24 am
Thank you. The height of the hook on the 23-064 is 3/4", while the distance from the top of the hook to the bottom of the housing is 3".
