No numbers on assembly found only have measurements .
One noted item is the roller height adjustment screw is located on the top and the screw that fastens the roller assembly is the bottom screw.
Would like to get replacement roller set for this door.
Door is located in Lexington Kentucky at my daughters house. Don't have access to the door except during visits..
The housing is aluminum and the wheels are steel.
Length is 2 1/4, height is 1 3/16 and width is 11/16.
Thanks

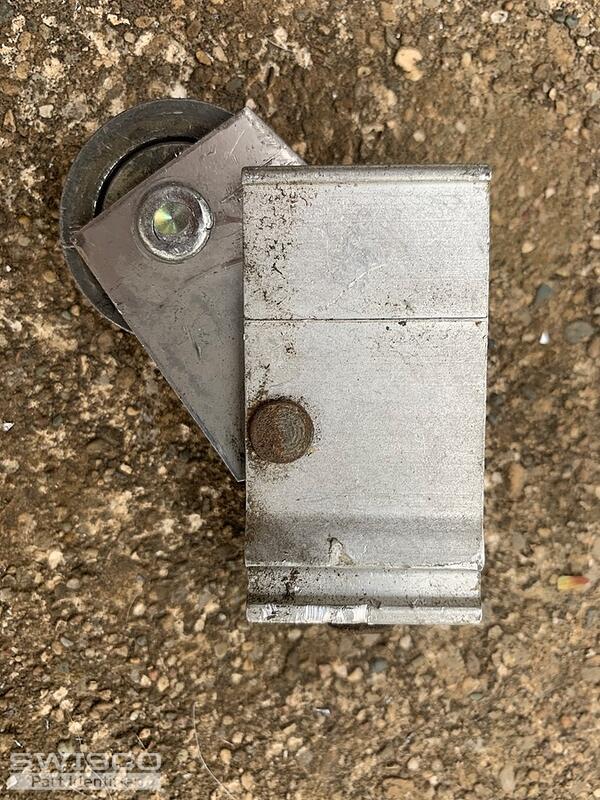

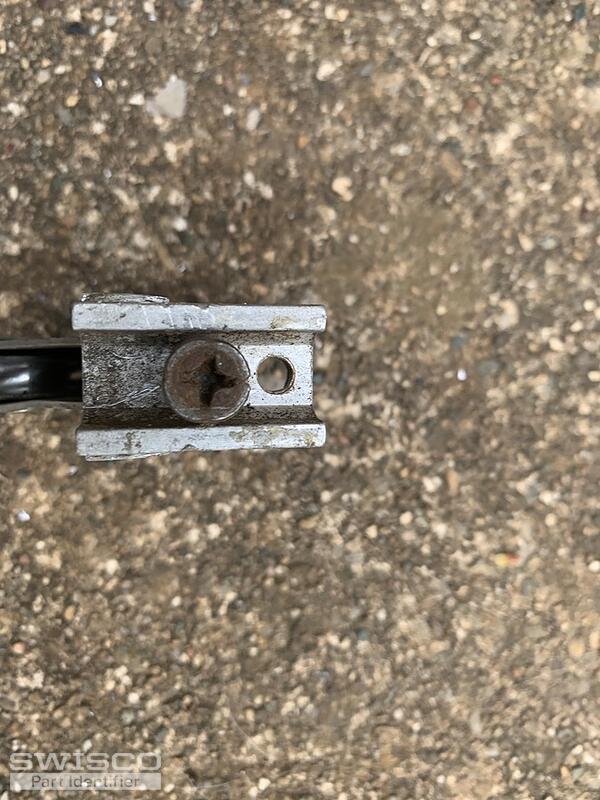

Roller assembly with steel wheels
Handy Person from Macon,Ga
Apr 16, 2023 11:46 am
5 user uploaded images
4 Replies
Tom from SWISCO
Apr 18, 2023 1:45 pm
Thanks for reaching out to us. I think our 81-257 might be a good match for this roller, but our dimensions do differ slightly from what you listed. Look it over and see what you think. You may want to triple check your dimensions, too, just to be safe. Height, width, and wheel diameter are definitely the most important details.

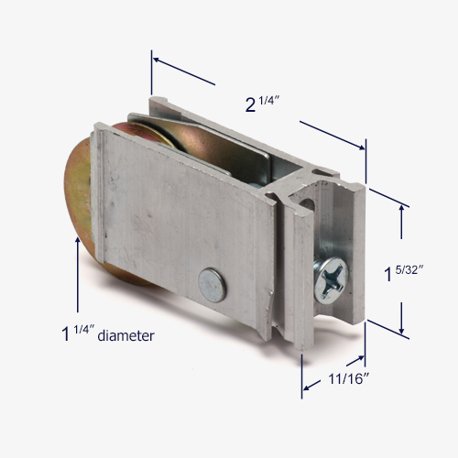

Alternate image for 81-257
Handy Person from Macon,Ga
May 13, 2023 2:38 pm
Thanks Tom. That appears it will work based on measurements. Does the wheel also rotate down during height adjustment? I would assume yes.
Thanks
Thanks
Tom from SWISCO
May 15, 2023 7:57 am
Great! I'm glad to hear it's a match. And yes, the wheel is the major component being adjusted when you turn the screw.
Hopefully this helps and please let me know if you need anything else.
