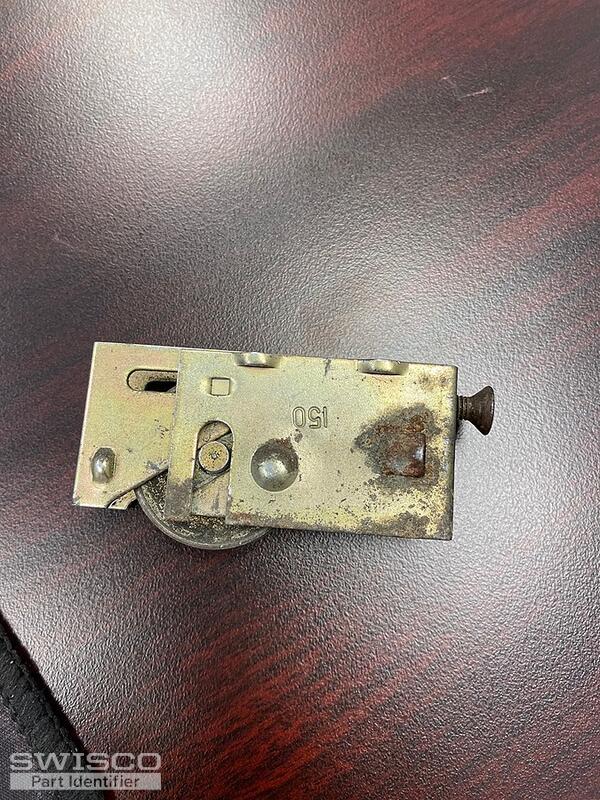

These are pictures from the roller removed from the door.
The dimension of the wheel is 1.5 inches
The dimensions on the side are 5/8 inch and 1 and 3/8 inch.
The dimensions for the outside plate are 1 and 3/8 inch and 2 inches.
Roller for Older Sliding Glass Door
Quick Learner from Forest Park, IL
Aug 23, 2021 10:53 am
4 user uploaded images
2 Replies
Dave Sr. from SWISCO
Aug 30, 2021 1:26 pm
Look at the 81-032B roller that we carry. This looks like it has the same housing as the one in your photos. It does have a wheel diameter of 1-1/4", but you should be able to adjust the housing to meet the height you need to make your door roll properly.
