Roller for Sliding Glass Door

Question

Hello,

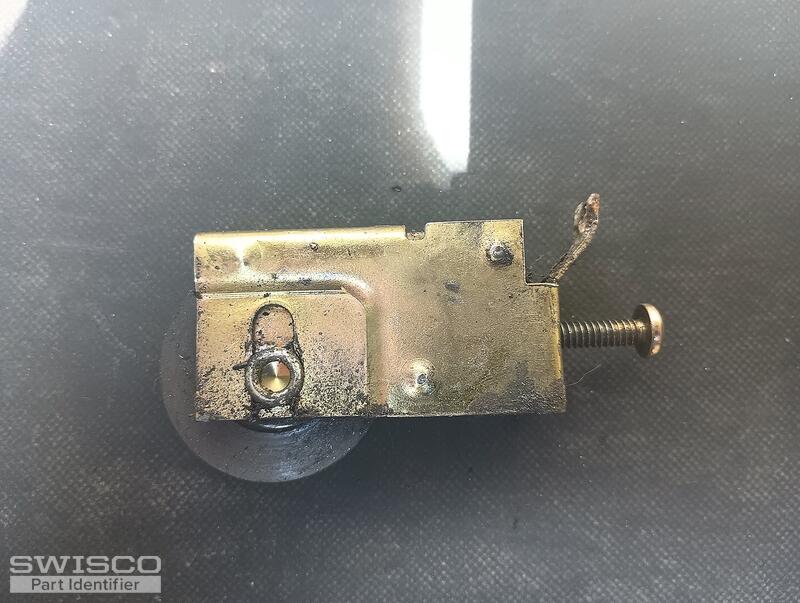

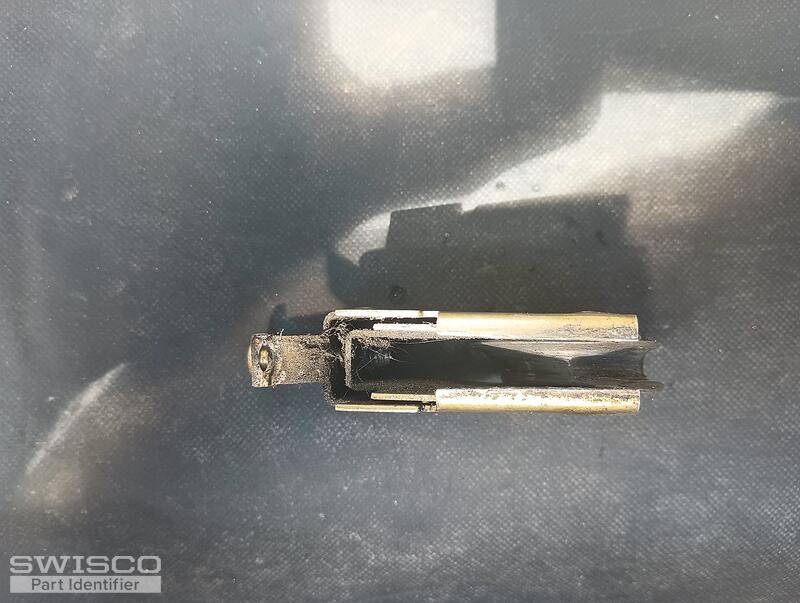

Thanks for your help id'ing a replacement roller. The door is from 1986 and I can't find any other brand info, except that the glass was made by Guardian. And the sticker on the frame says MFGR. Code: Alpine Industries, series-120 SGD-R15

The roller is 2 5/8 inches long, 1 3/16 inches tall (the tab in the back adds another 1/8 of an inch), 11/16th of an inch wide, and the wheel is about 1 1/2 inch in diameter.

I could be slightly off in my measurements.

There are no names, markings, or numbers on the roller hardware.

Casey · Accepted Answer

Hello,

The style of your roller housing looks like a closer match to the 81-093 to my eye. With that being said, the roller comes with 1-1/8: diameter wheels. I would recommend double-checking your measurement to see if the specifications below could work for your repair. Thank you!

Alternate image for 81-093
