Roller has no markings or numbers

Quick Learner from Marana, AZ
This roller is from my screen door, which was installed by Apex Windows & Bath (Phoenix & Tucson, AZ). I'm trying to identify this part. What I need is the integrated corner, since the little piece the roller clips over is broken.
2 user uploaded images
6 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

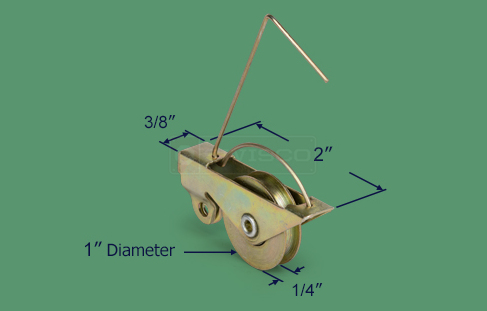

Take a look at our 84-091M screen door roller. Carefully compare our dimensions to your original hardware to see if this matches up for what you need.

84-091m dim
Quick Learner from Marana, AZ
Thanks for your response. The one you sent is similar, my wheel however is
1 1/4" all other measurements are the same. The greatest difference is the end that attaches to the integrated corner, yours is fully enclosed circle design.
Mine is "C" shaped opened at one end, each of the end openings are slightly arched to assist with attaching to the door.
Thanks in advance for any further assistance you are able to provide.
Best Regards, Brian
1 user uploaded image
Emily
Emily from SWISCO
SWISCO
Expert

Hi, Brian.

If your wheel diameter is 1-1/4", please see our 84-104 instead. We don't believe the manufacturer makes these rollers with that "C" hook like that anymore. Ours technically works the same way, it's just a little harder to get them to clip onto the corner.

Quick Learner from Marana, AZ
Thanks a lot with the identification of the wheel. I guess it's safe to assume either wheel plastic or metal can be used without damaging the track. I think if that's the case, it's best to purchase the metal.

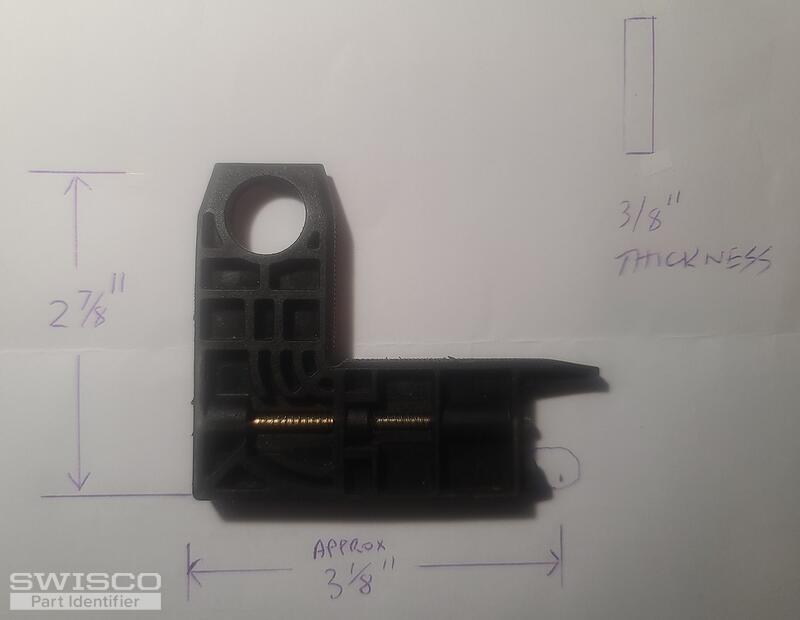

I do however also need the the corner piece, since the location the wheel attaches has broken off. I checked the corner piece for the 1" wheel, but the measurements were different. I have included the measurements of mine on the attached photo.
Thanks, again, Brian
1 user uploaded image
Tom
Tom from SWISCO
SWISCO
Expert

Hello, Brian. This corner you show here is an older version that I don't believe is made anymore. However you should be able to use our 95-020 to replace it. It is fully compatible with the 84-104 that Emily recommended.

Dimensions for 95-020
Dimensions for 95-020
