Roller similar to 23-048

Quick Learner from Neenah, Wi

May 19, 2017 2:24 pm

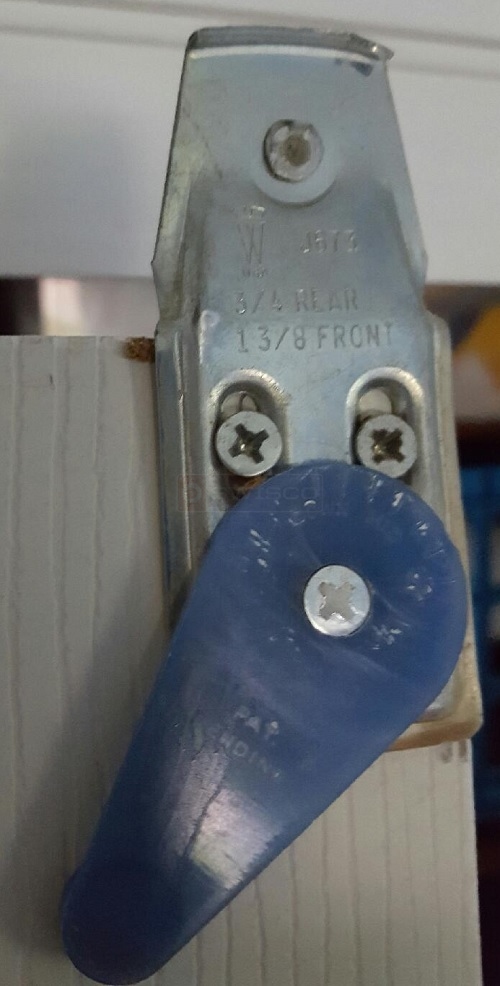

Hi..Have a part very similar to your Kenna 23-048 roller assembly. Mine has a W on it with a crown over the W and then it says 3/4 Front and 1 3/8 Rear...It is 3 1/2 in high and 1 1/2 wide. It is 3/8 from the back of the frame to the offset frame and 3/4 from the back of the frame to the middle of the nylon wheel. Would that be the same as your 23-048? also this is on the front sliding door. Thanks

4 Replies

Paul from SWISCO

May 23, 2017 3:46 pm

If the roller is 7/8" in diameter, then you could possibly use our 23-048. It has a 3/8" offset like yours. The 23-051, by comparison, typically goes on the front hanging door.

Quick Learner from Wisconsin

May 23, 2017 5:33 pm

As I stated in my original msg the roller measures 15/16..assume originally 1 inch...If they wont work on my track do you have a track that will work???Would need 60 or 72 inch..Let me know..thanks

Paul from SWISCO

May 25, 2017 1:13 pm

We do carry complete wood sliding door kits, our 23-501 (60") and 23-502 (72"). These are complete sets, though. We don't have a specific individual track that works with the rollers I mentioned before.
