Rollers for patio doors

A contractor from NC says:
Info on door. Citation Type B- 1605 other info CIT-ALI-CLA which is on a tag inside glass. The handle says Citation Doors. Approx. age of door 2005 -2009. Thanks in advance for any help. I live in a condo assoc. which has 83 of this type of doors. I will pass any info along to others.
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. I think we can help you replace these rollers, but I am going to need a little more information to be able to help. I'm afraid it's impossible to know what rollers you need without seeing them removed from the door. Could you provide pictures of the rollers removed from the door? Could you also provide the height and thickness of the outer housing, as well as the diameter of the wheel(s)? This will help us identify what you need. If you need help removing and replacing your rollers, see the video below. Thanks.

A contractor from NC says:
Thanks for fast response. I have left my beach condo and will try and get back there next week to remove roller and housing. I will give you as many measurements as I can so you can advise me on a replacement. Thanks again
A contractor from NC says:

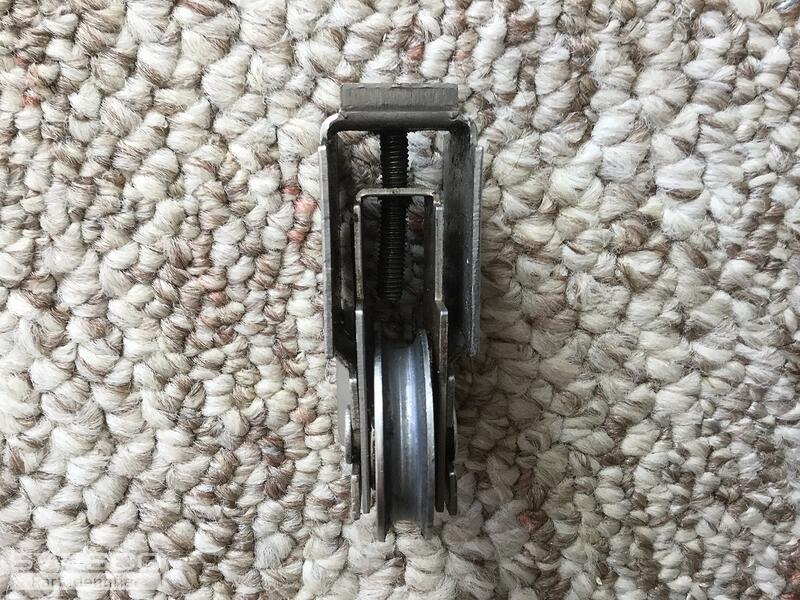

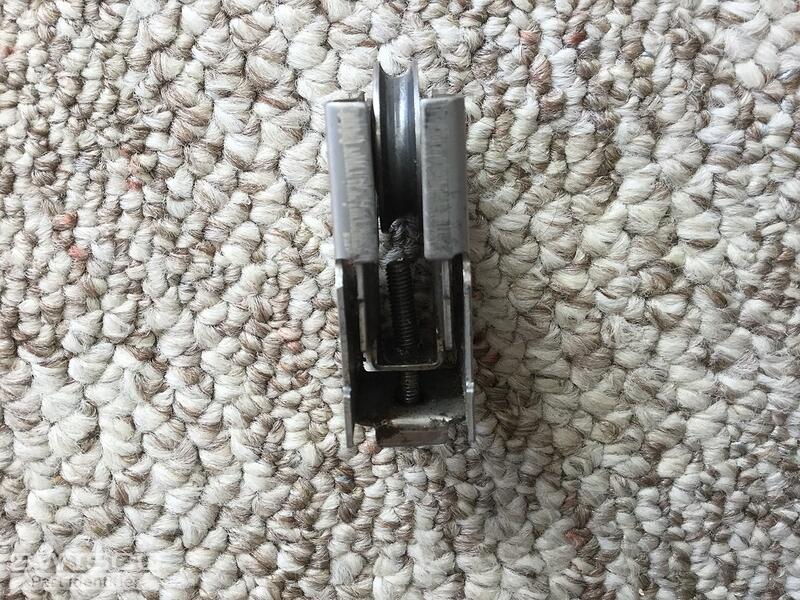

Photos with measurements you requested. Thanks in advance for all your help. Tom
Profile picture of Bob
Bob from SWISCO responded:

Thanks for the photos, Tom. I'm afraid I don't see the measurements; but that said, I want you to take a look at the 81-112. Review the dimensions listed and compare them with your old roller--particularly the thickness and height of the assembly, as well as the wheel diameter. Let us know if you think it could work for you.

A contractor from NC says:

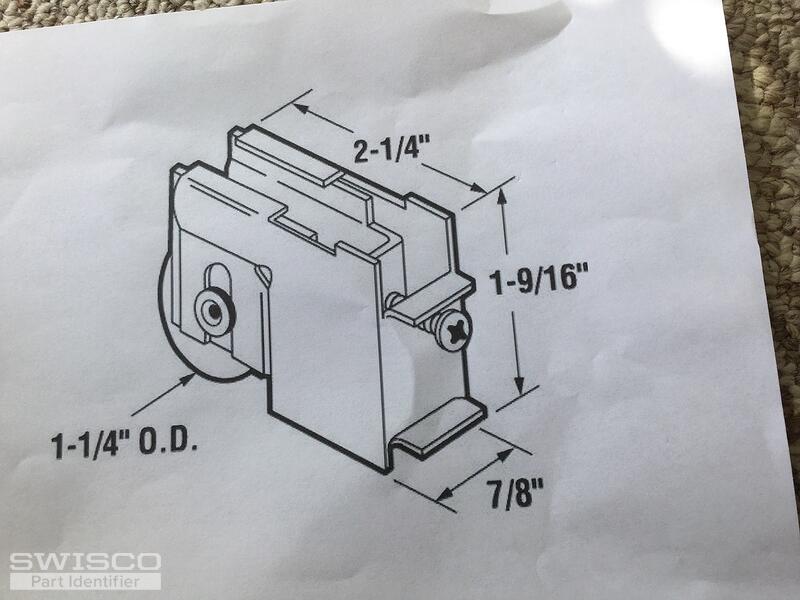

Sorry measurements included now
Profile picture of Bob
Bob from SWISCO responded:

Thank you! Yep, looks like your dimensions match our 81-112. You can see our measurements on the store page I linked you to. I think this will be our best match!

Alternate image for 81-112
Alternate image for 81-112
A contractor from NC says:
Thanks for all your great help. I will let all my neighbors know about your site and the fast response you have giving me. Have a great weekend
Profile picture of Bob
Bob from SWISCO responded:

Happy to help! Have a great weekend also, and if you ever need anything else don't hesitate to write us again.
