Rollers for patio screen door

A contractor says:

July 2, 2022

I need to identify and order rollers. I don't know how they come out so can't get a picture of the whole roller. There is a coil spring around the pivot shaft. There are no visible screws on the outside of the frame. The adjustment screw is in the stile (vertical frame member). The wheel is 1" diameter.
Thank you

Thumbnail of the uploaded file named 20220702_193115.jpg

Thumbnail of the uploaded file named 20220702_193327.jpg

Thumbnail of the uploaded file named 20220702_194251.jpg

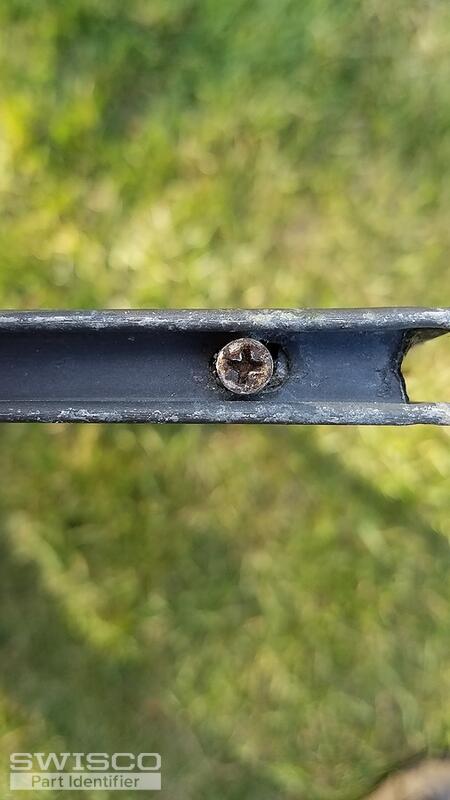

Thumbnail of the uploaded file named 20220702_194551.jpg

Emily from SWISCO responded:

July 6, 2022

Hello!

I suspect you have have a corner type roller which requires partial disassembly of the frame, unfortunately. Start by taking a look at the ones I related for you on this page. Once you have it out, look over the dimensions for each and compare them with yours to see if one of them matches what you need.

A contractor says:

July 7, 2022

Thank you.
You were correct, it is exactly like your 84-026 except mine has steel wheels, which caused them to rust and freeze up on the shaft.

1" x 11/32" Corner Screen Roller Assembly, 7/8" Wheel

84-011

$4.20

1-1/8" x 13/32" Corner Screen Roller Assembly, 15/16" Wheel

84-026

$3.22

1" x 13/32" Acorn Door Corner Roller Assembly, 1" Wheel

84-073

$10.92

1-1/32" x 7/16" Corner Roller Assembly, 1" Wheel

84-137

$8.21
