Rollers needed for Arcadia Sliding Doors : SWISCO.com

Home Owner from Munster, IN

Aug 26, 2022 4:18 pm

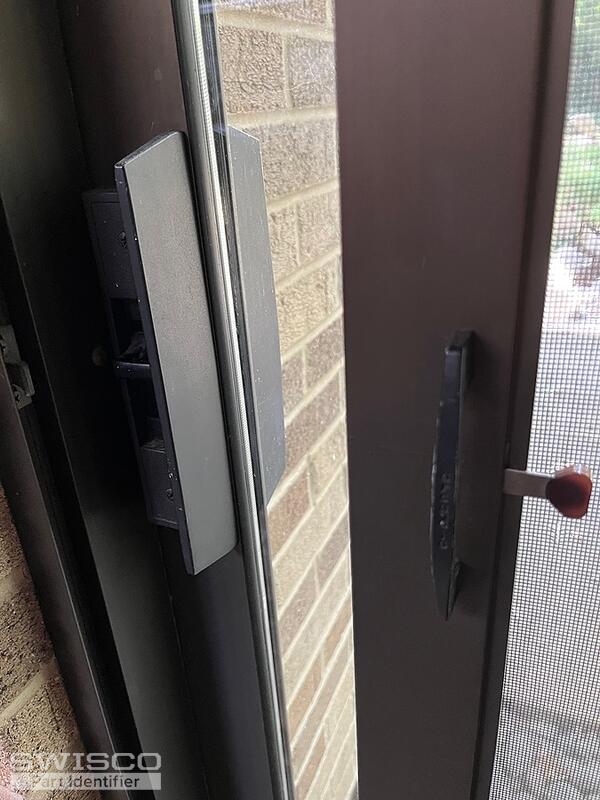

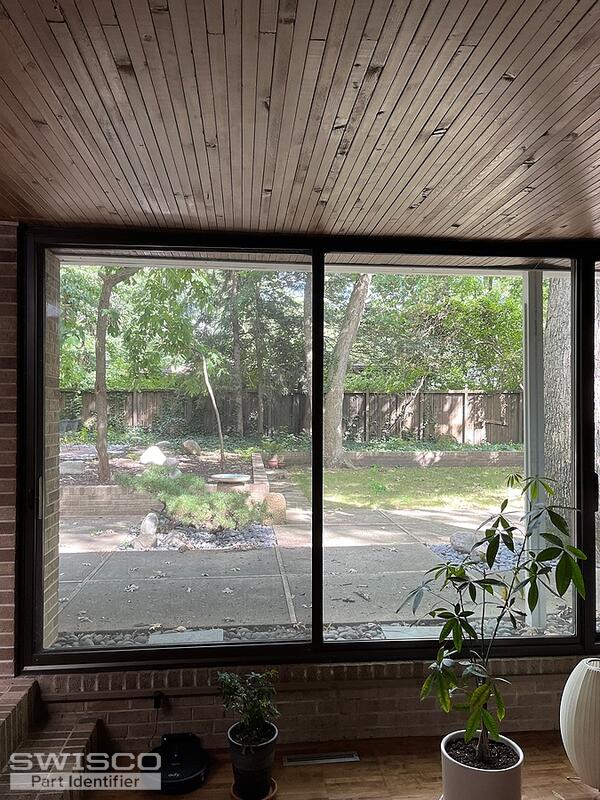

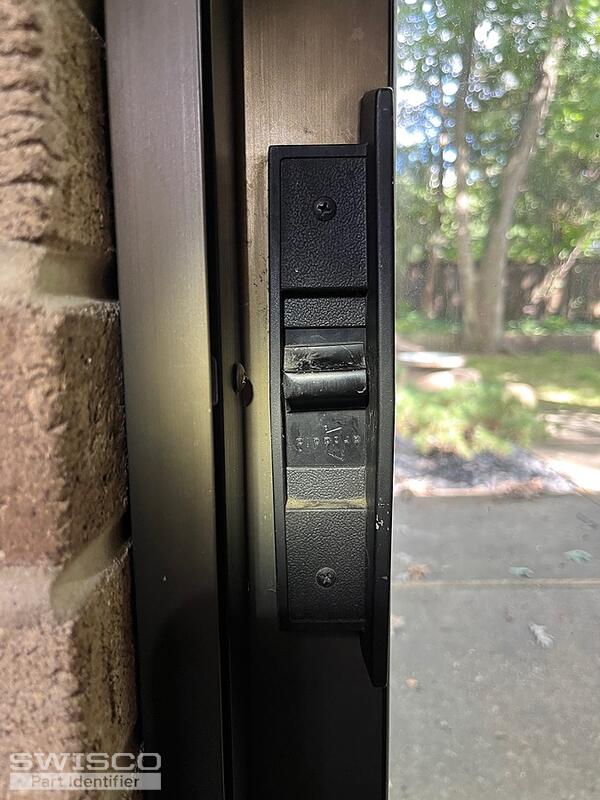

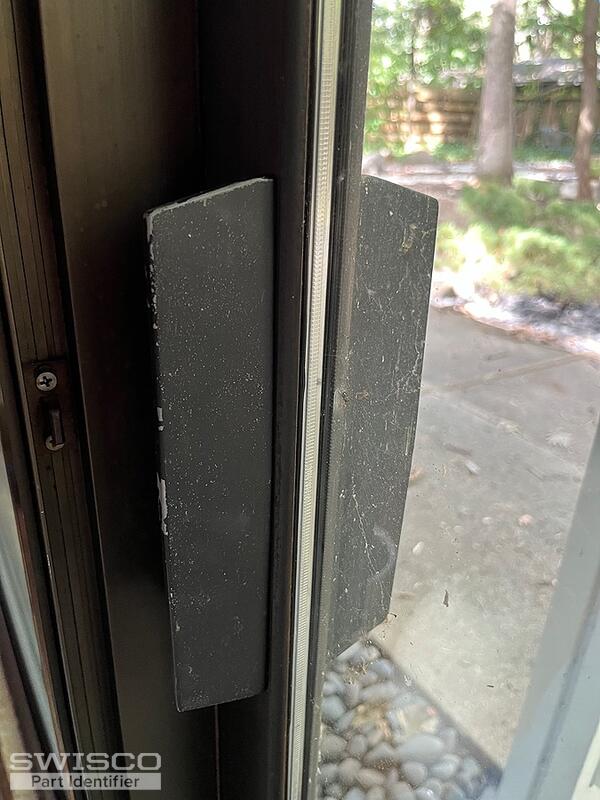

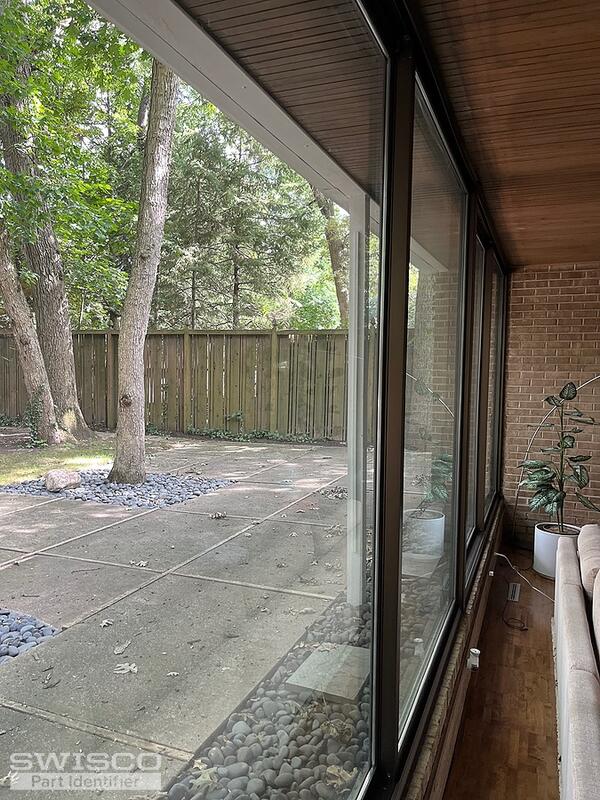

I have 5 Arcadia sliding patio doors that need the rollers replaced. They were installed in 1970 I believe. Can you please provide the replacement rollers needed? The rollers are for the glass door, not the screen door.

5 user uploaded images

5 Replies

Tom from SWISCO

Aug 30, 2022 12:01 pm

I'm afraid I don't know what rollers are used with this door. In order to determine whether this is something we can supply, we will need to see the originals removed from the door.

Please note that your door appears to be a very old style so there is a chance we don't have what you need. However, the only way to know for sure is to see them. Would that be possible?

Home Owner from Munster, IN

Sep 25, 2022 7:58 pm

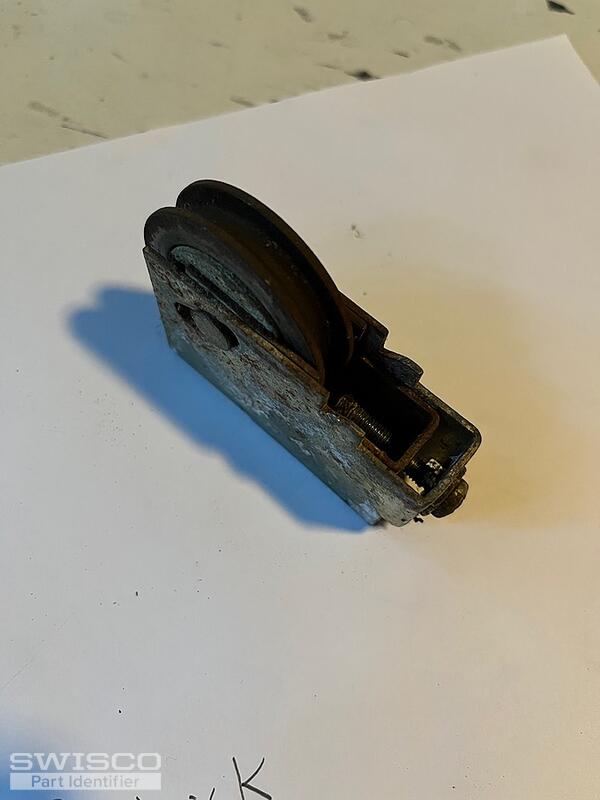

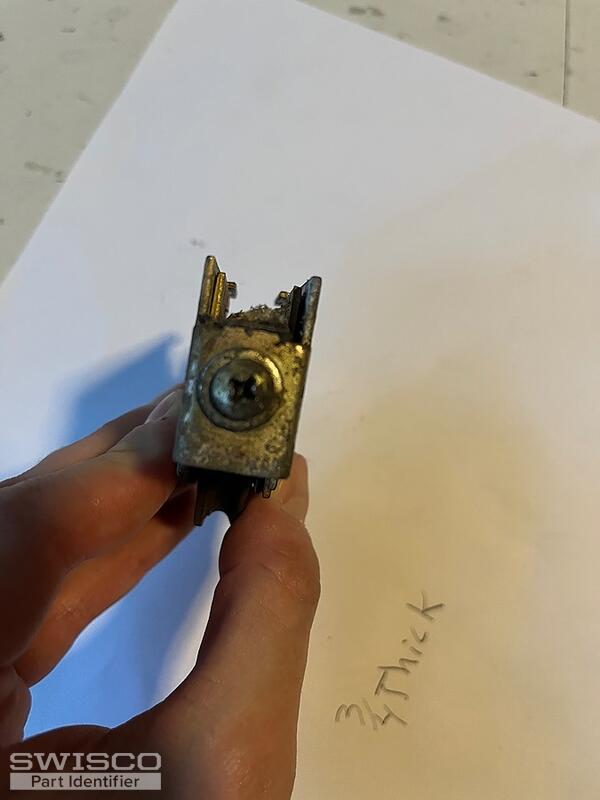

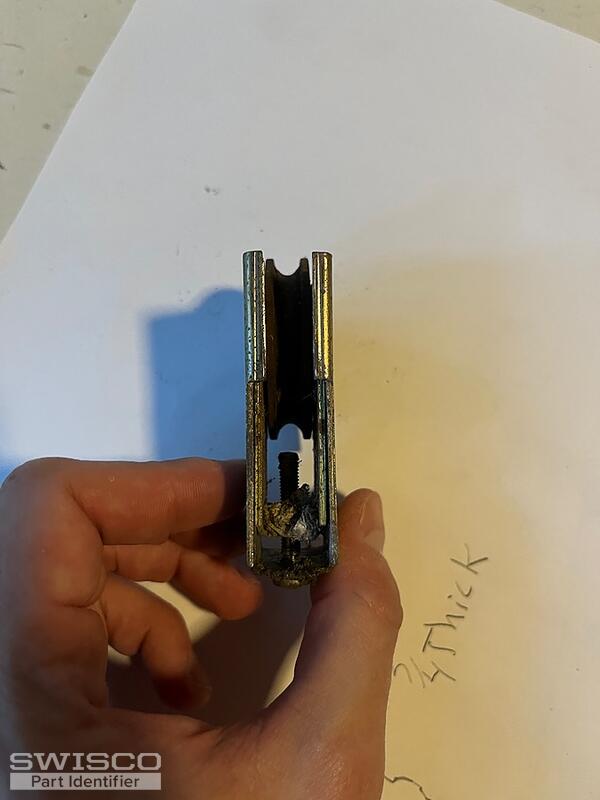

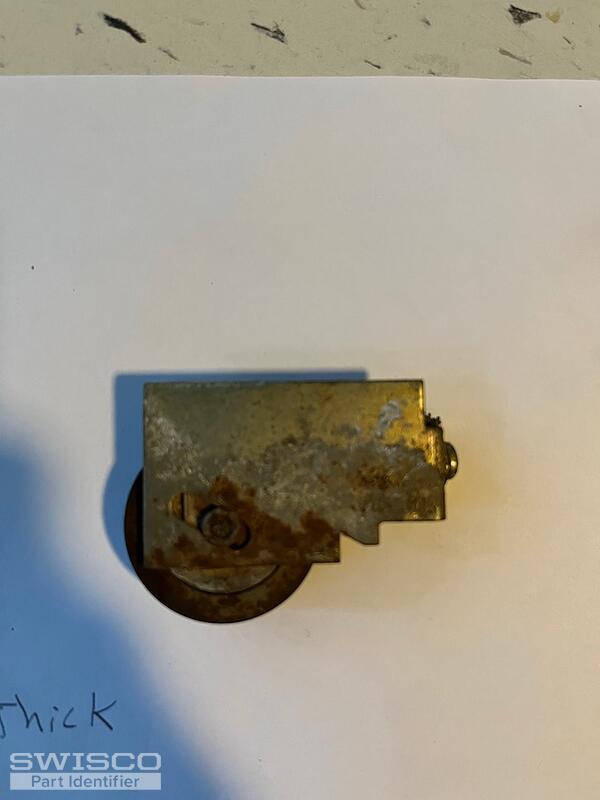

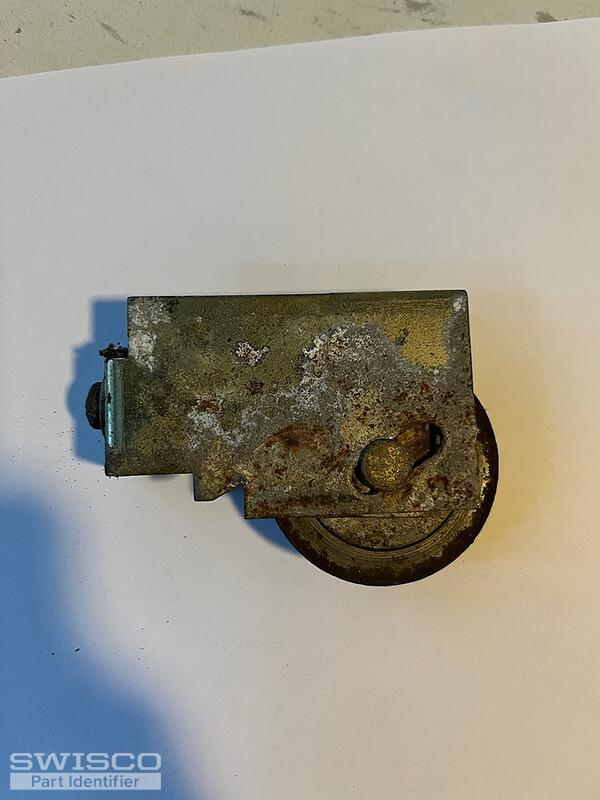

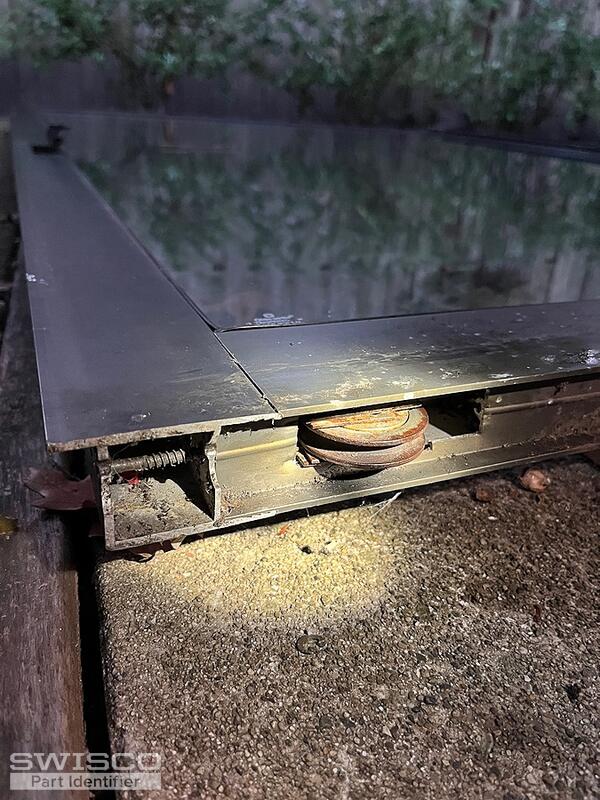

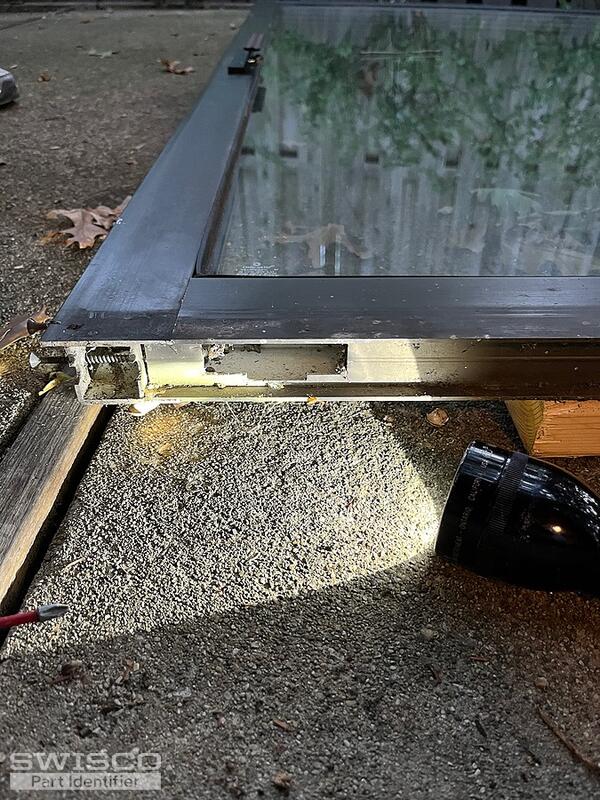

Hello! I was able to have a door removed and take out the roller. Please let me know which rollers are the replacement. Also, let me know if you recommend replacing anything else.

5 user uploaded images

Home Owner from Munster, IN

Sep 25, 2022 7:58 pm

Additional photos

3 user uploaded images

Tom from SWISCO

Sep 27, 2022 8:32 am

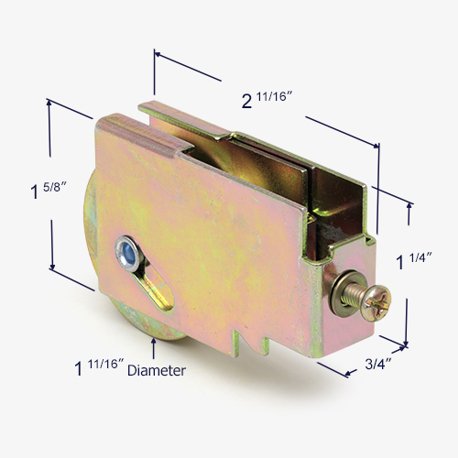

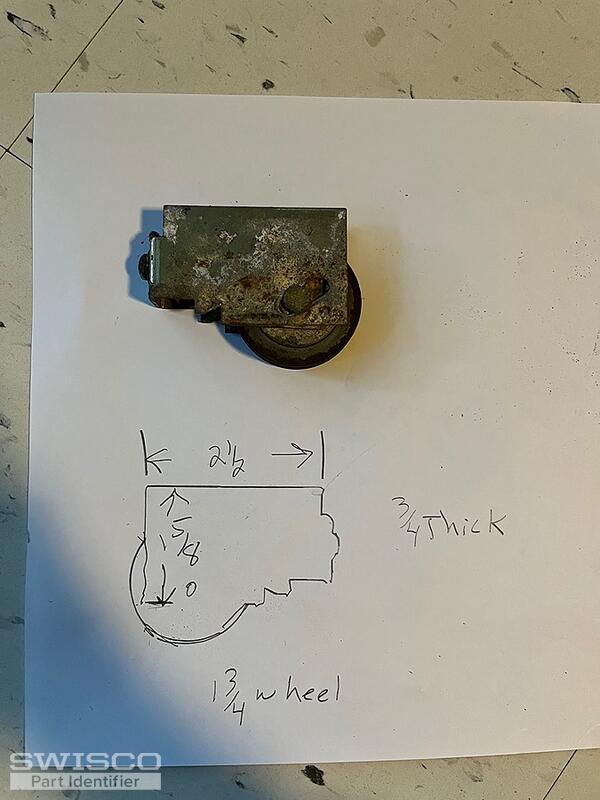

Thank you! These photos are perfect. My first thought is our 81-074 roller, which just so happens to be made for Arcadia doors. The design looks nearly identical to your original, with that same "tooth" at the bottom of the housing. I would just look over our dimensions to be 100% sure. We measure ours a little differently than yours.

Alternate image for 81-074
