Rollyson channel balance replacement parts

Profile picture of Tom
Tom from SWISCO responded:

It appears you have either a Series 380 or Series 385 channel balance.

The difference between the Series 380 and Series 385 balances lies in the shoe.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

The series 385 balance has the 15-004 shoe which is slightly larger from front to back, as illustrated.

If you measure your shoe as it is pictured here, you should be able to determine which one you need.

Please let me know if you have other questions.

A quick learner from Lumberton, NJ says:

I need 6 Rollyson channel balances, 31" long, 1/2" wide. Stamp option 3030.

There are no stamp or markings on the channel. I didn't see the end attachments on line that matches the ones on my channels.

I'v uploaded pictures. Please help.

Thanks, Fred

Thumbnail of the uploaded file named B2BAA9AF-BFCA-4EEE-A3C9-836D4F8843CD.jpeg
Thumbnail of the uploaded file named 3D448D42-8B27-437A-90BC-78FF87F5C0AF.jpeg
Thumbnail of the uploaded file named 7E899B25-14E0-4C3D-9834-5E89DCEF1C21.jpeg

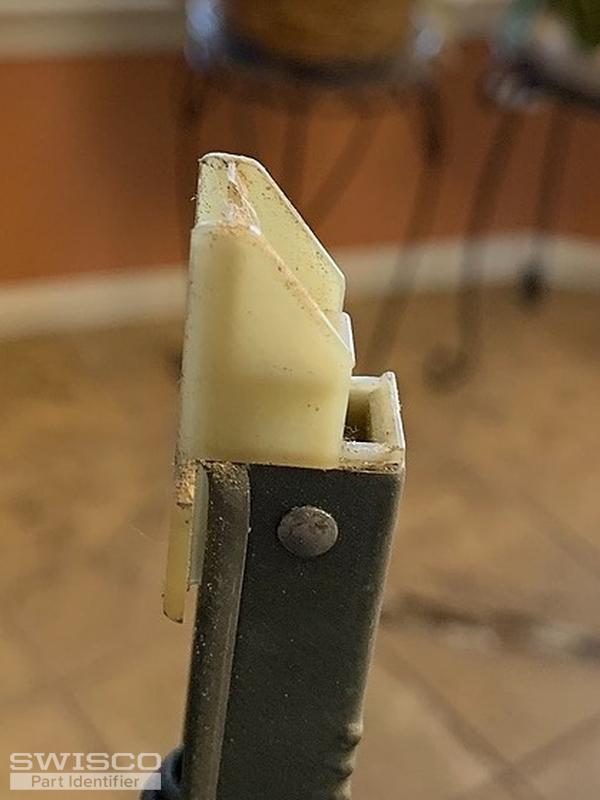

Thumbnail of the uploaded file named 6E6F4176-20D1-4D82-B2DB-0BC1249E0044.jpeg
A quick learner from Lumberton, NJ says:

Thanks Mike. Based on my measurements, I have the S380-31 with the 15-005 shoe. Thanks again for your excellent help.

FL
