Rplacement crank

Question

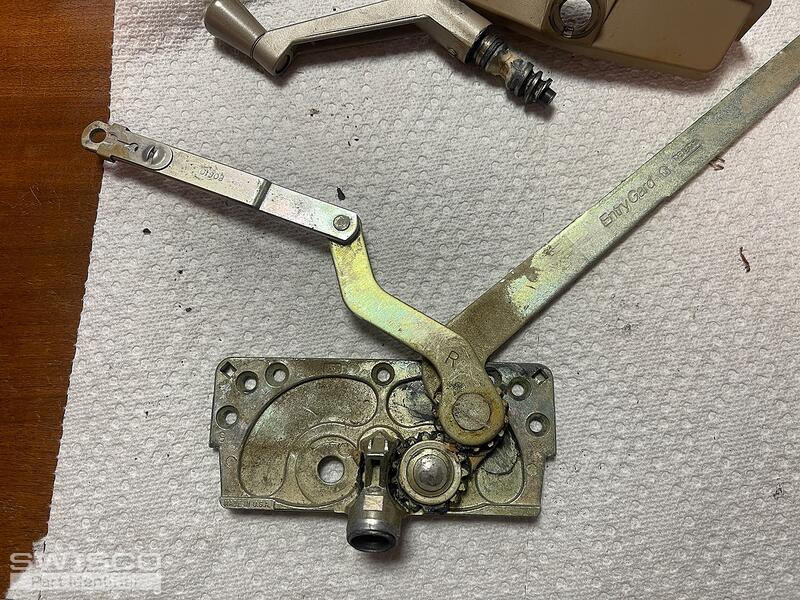

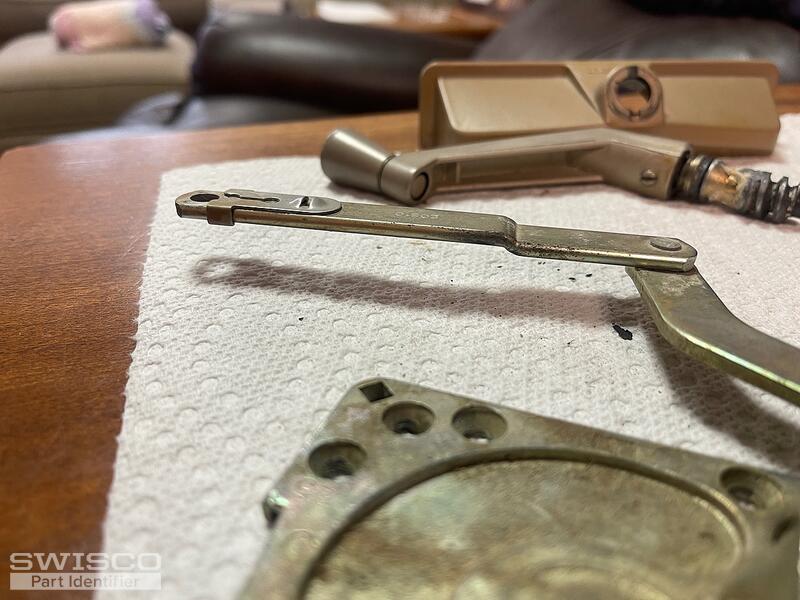

Needing a replacement crank assembly for Crestline window. Short arm had numbers 20810 stamped and is 4 3/8" long. Long arm is 9 1/2" long with numbers 40754 stamped. Entry Guard TRUTH is also stamped on the long arm. Locking latches are on the righthand side of the window (right hand side standing inside the house).

Thank you

Jasmine · Accepted Answer

Thanks for reaching out! Your casement operator looks a lot like our 39-032 EntryGard Dual Arm Operator (the opposite handed version is part 39-031). To confirm that this is the correct replacement, carefully review and compare the dimensions from your operator to those shown on the diagram below.

Dimensions for 39-032

In regard to the covers and handles, you can either chose the 39-107 cover along with the 39-114L non-folding or 39-205 folding crank handle or the 39-107FK folding handle and cover kit.
