S 380-25 0ption 2410

A handy person from Sarasota Fl. says:
August 31, 2020

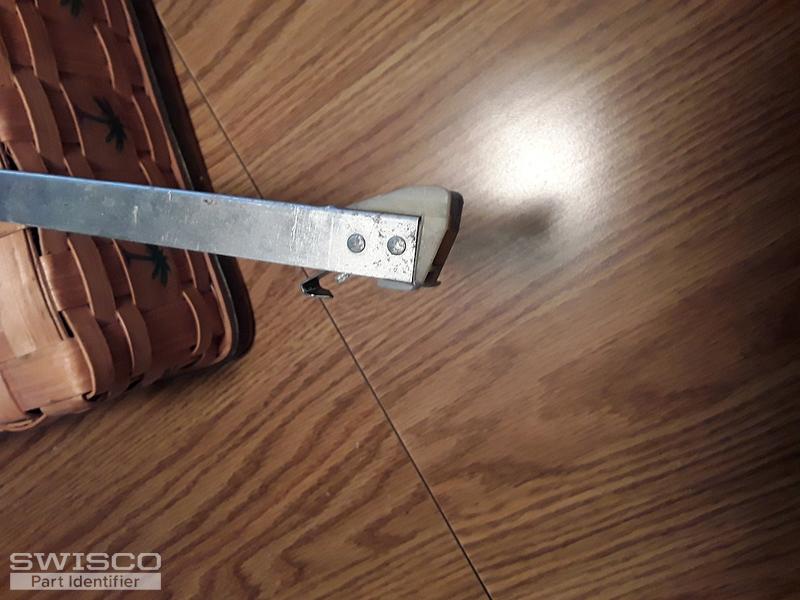

The pictures for my top channel balance are 093039 and 093102. My bottom pictures are 093307 and 093233. The stop I have In my window is 085706. I am looking at the s 380-25 with 2410 option. It looks like the 18-172 stop is the one I have in my window. My question is will the s 380-25 top work with the window stop i have in my windows. The windows I have are made by Harcar.
Thumbnail of the uploaded file named 20200829_085706.jpg
Thumbnail of the uploaded file named 20200831_093039.jpg
Thumbnail of the uploaded file named 20200831_093102.jpg
Thumbnail of the uploaded file named 20200831_093233.jpg
Thumbnail of the uploaded file named 20200831_093307.jpg
Profile picture of Casey
Casey from SWISCO responded:
September 3, 2020

Hello,

With this combination of attachments, you could have either an S380-25 or S385-25 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2410 spring strength options for your replacement balances as long as that option matches the stamp on your original balances metal channel.

As for the compatibility of the top sash guide, as long as the balances you purchase are direct replacements for the originals, they should work with your existing guides without a problem.


Thank you and let us know if you have any other questions or concerns.


Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A handy person from Sarasota Fl. says:
September 3, 2020
Yes the bottom guide is 1 inch wide so I will order S380-25 with option 2410. Thank you fro your help . You have a good day.
