Paul from SWISCO responded:
November 3, 2017

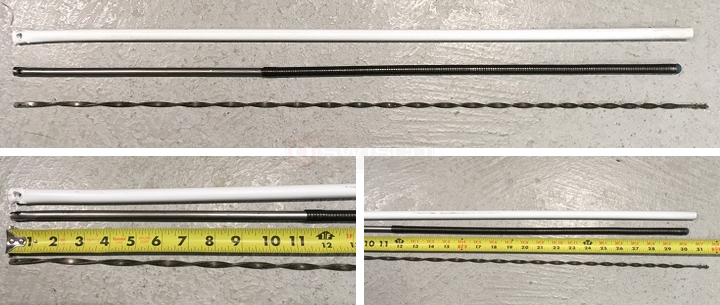

I believe your Alcoa window uses our 5/8" S600-30 spiral balance with a blue tip. If you measure the old white plastic tube it will be approximately 9/16". The company that made your balance, previously, is no longer in business.
|
Paul from SWISCO responded:
November 9, 2017

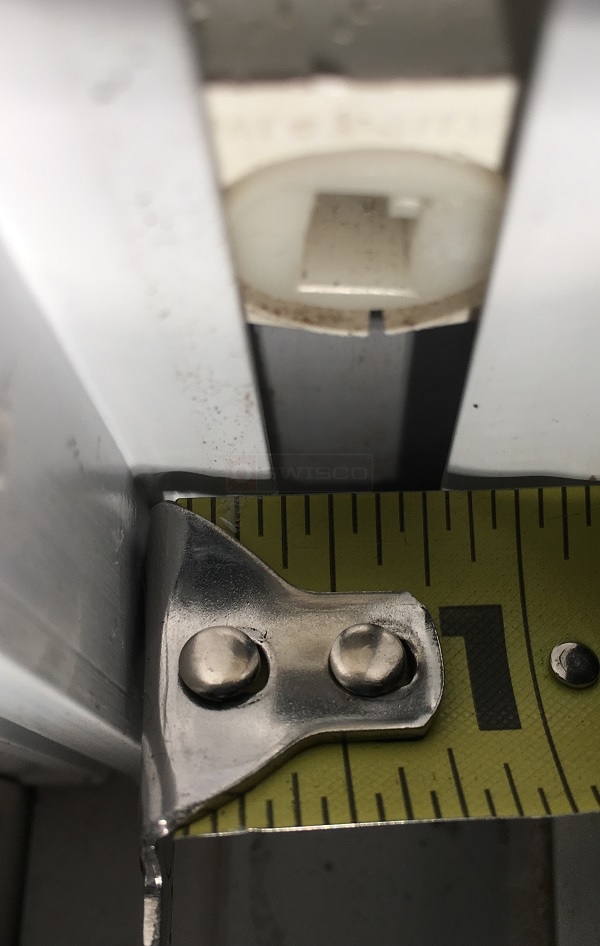

The pivot shoe you show is a 15-173, which is 1" wide by 9/16" deep. Again, people have used the S600-30 blue tip with this pivot shoe for Alcoa windows. What was the diameter of the white plastic tube on the old balance? I know the opening seems small for the Series 600, but if it's the proper balance, you can squeeze it in.
|
