SA 409 part number

Home Owner from Whitethorn, Calif.

Jun 26, 2024 7:12 pm

I need to order the complete assembly and the pair of pivot bars for my double hung top sash. Can you assist me in making sure I order the complete assemblies for right and left sides of the top sash?

The windows in my house are all certainteed I had installed when I built the house some years ago. The number on the coil tongue is SA 409.

Thank you for your help.

3 Replies

+ Add a Comment

Jasmine from SWISCO

Jun 27, 2024 2:12 pm

EXPERT

Thanks for reaching out! There is a good chance we can supply you with a replacement for the assembly and the pivot bar you need but I will need to see photos of the hardware removed to confirm. Given the brand of the windows, I am confident we'll have the replacements but the photos will help to determine exactly what you need.

Please don't hesitate to reach out with any questions you might have.

Home Owner from Whitethorn, Calif.

Jun 27, 2024 3:01 pm

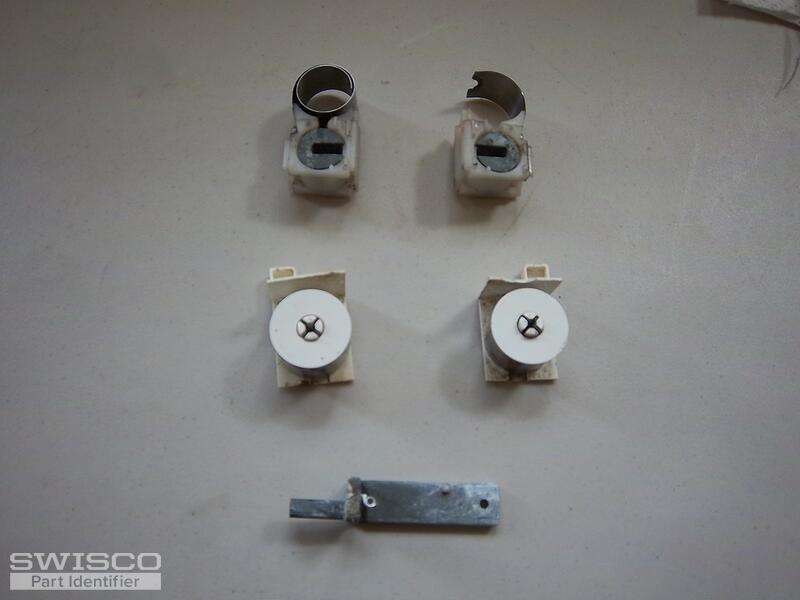

IPlease find the photos you requested. Let me know if you need anymore photos. Thank you, Gene

4 user uploaded images

Jasmine from SWISCO

Jun 27, 2024 4:07 pm

EXPERT

Hi Gene,

Thanks for the photos! Your coil assembly can be replaced with our 15-192 CertainTeed Pivot Shoe. I am confident this should be the correct replacement but be sure to compare the dimensions to confirm.

detail of 15-192

This shoe is compatible with the Series 170 Coil Balance. Since your spring is stamped with a 409, you'll need the S170-409. The cover used with this spring is either the 15-156 wide cover or 15-185 narrow cover, used along with the 15-157 CertainTeed Balance Drum.

The is a chance your existing pivot bar may not be compatible with the 15-192 shoe but the good news is the 26-175 CertainTeed Pivot Bar pair should work in its place.
