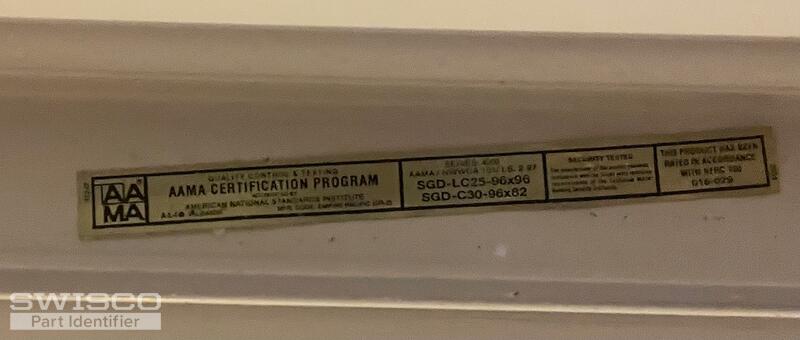

SGD-LC25-90x96, SGD-C30-96x82

Handy Person from Portland OR
Dec 30, 2024 8:04 pm
Hello, I have a double sliding glass door with the above numbers. The lock has broken and is now locked in place. Is there any way to unlock the door without breaking it? Also, I would like to order a replacement lock if it's in stock. Any advice is highly appreciated!
4 user uploaded images
4 Replies

Paul from SWISCO
Jan 6, 2025 11:57 am


Assuming that the lock is at least partly functional, then you could try using a flat tip screw driver to unlock it manually. Stick the blade of the screwdriver into the same slot that the handle uses to unlock it and turn it manually.
If nothing happens even then, then odds are the mortise is well and truly stuck. Your options here are very limited, and you will likely need to cut it free, which is no easy task.

Handy Person from Portland OR
Jan 6, 2025 4:31 pm

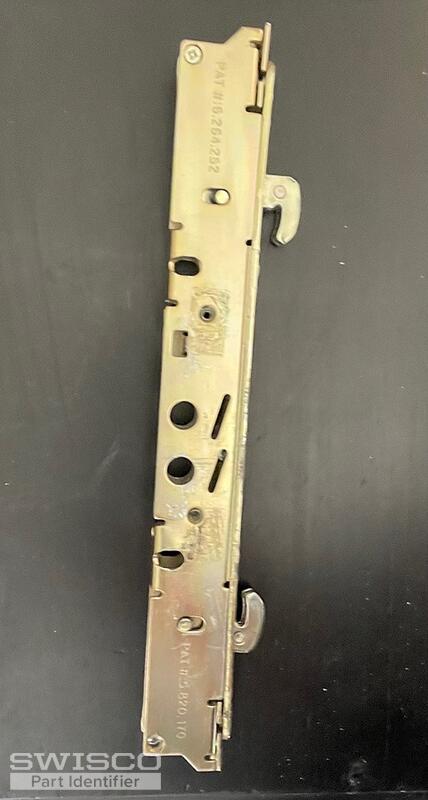

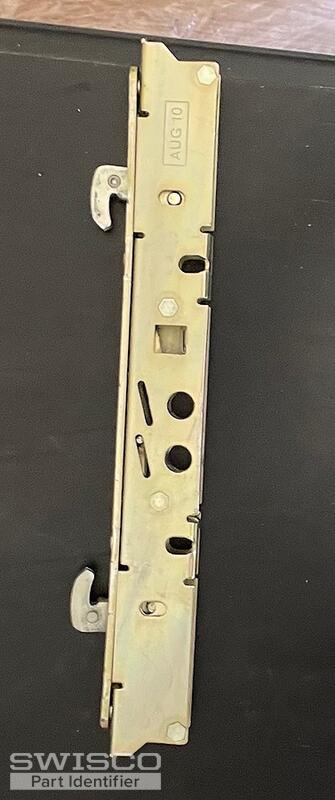

Hello- thanks for the reply. I wound up calling a locksmith to open door and remove lock. Can you help ID this lock please? I can't find info about it online. Thanks!
2 user uploaded images

Paul from SWISCO
Jan 8, 2025 11:01 am


Thanks! This appears to be a match for our 82-239 mortise lock. Review our dimensions below to verify.

Alternate image for 82-239
