SGD-LC25x 144x82 Thumb lock replacement

A quick learner says:
Good Evening,

Request to know if you have a replacement thumb lock available that fits the below:

SGD-LC25-144x82
Series: V4100/4200
P.L# 063-028

Thank you.
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named A6AB40ED-D88F-4552-B6B4-441918D58846.jpeg
Thumbnail of the uploaded file named 132456E9-05F0-4975-A943-A95883986BFB.jpeg

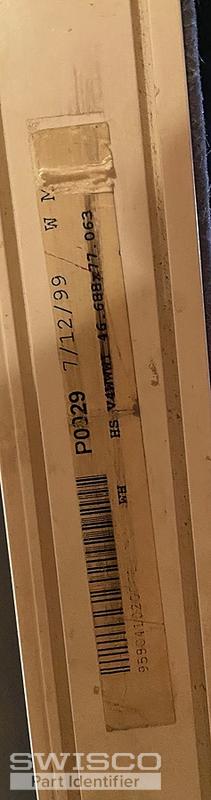

Thumbnail of the uploaded file named 32414ECD-51B9-4604-A4F8-B818C1EC4758.jpeg
Profile picture of Tom
Tom from SWISCO responded:

It looks like you just need a new thumb lever. If so, see our 82-107. I think this may be just what you were looking for.

A quick learner says:
Thanks, part is in and was what I needed.
A quick learner from Napoleon says:
I recently purchased your 82-107 latch lever kit. As a replacement latch. But the 82-107 lever pin is to long. Maybe as much as a 1/4 if an inch. It appears that my old set up used a two piece level set.


My sliding patio setup looks like your 82-034 set. Is this set 82-034 still available to purchase?

How hard is it to shorten your 82-107 level pin. What tool should be used?

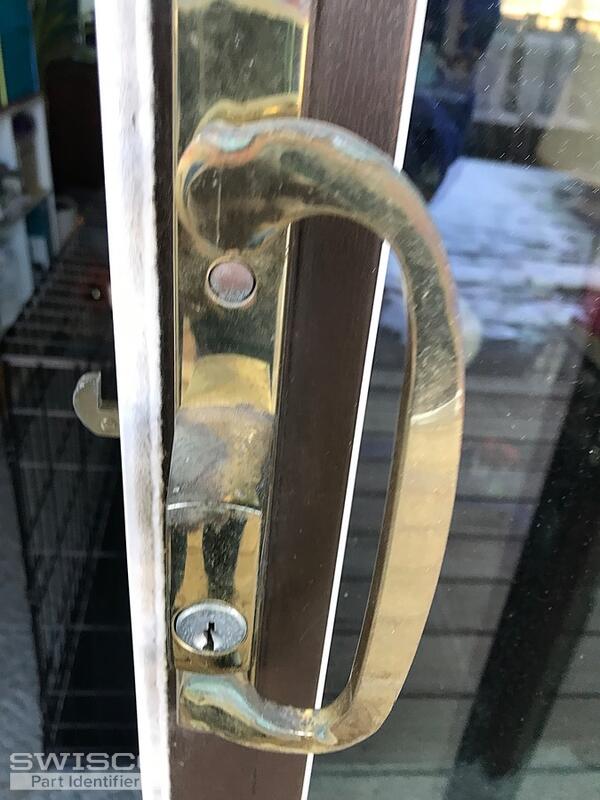

Thumbnail of the uploaded file named 6D6B9310-8227-449A-9A2B-C83D3B816355.jpeg

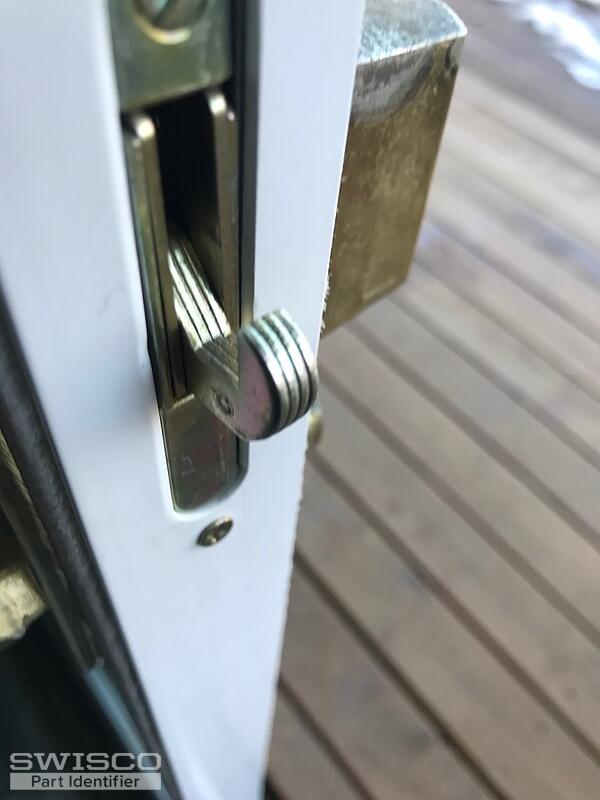

Thumbnail of the uploaded file named 3A7BB46F-6855-4DCE-95A6-EAE882D26A8F.jpeg

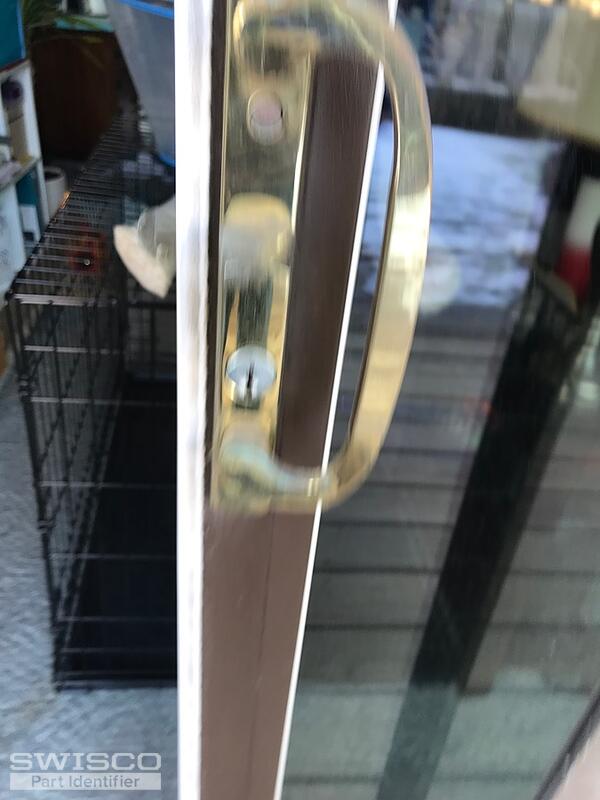

Thumbnail of the uploaded file named B9C26C1A-B90A-4A96-92D4-D0291617BDAB.jpeg

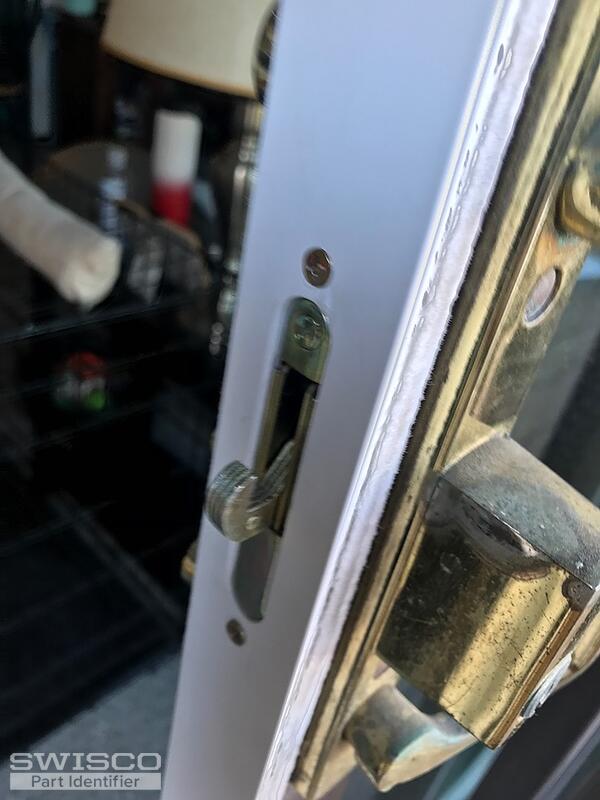

Thumbnail of the uploaded file named 276129EE-6BD9-4094-829E-B28684A4E007.jpeg

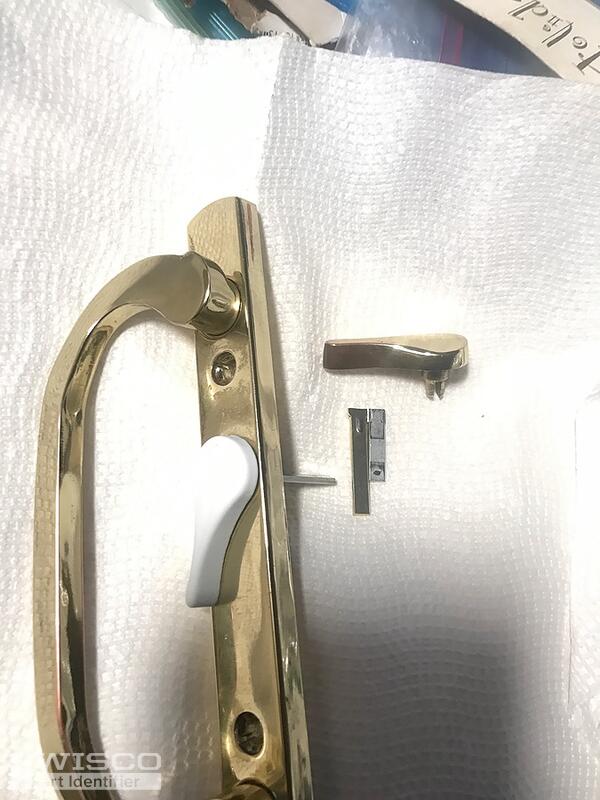

Thumbnail of the uploaded file named image.jpg
Profile picture of Tom
Tom from SWISCO responded:

The 82-034 is no longer made, but it was replaced by the more modern 82-087 Legacy keyed handle set. This is identical to the 82-034 in every way and used the same length thumb lever, which is our 82-107.

I'm surprised to hear that it was too long. This is a set size that is fairly universal for this kind of door. I would triple check to make sure that it's not the key tail that's not too long.

If you are confident that the 82-107 is too long, then you will need to use a hacksaw and table vice to shorten it to the size you need. Just make sure to measure thrice and cut once.
