SILVERLINE windows

A contractor from Brick nj says:

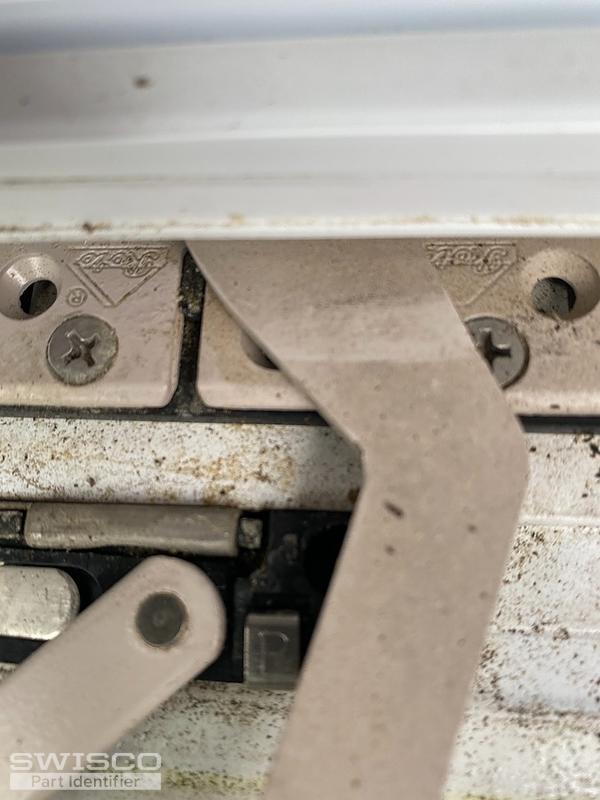

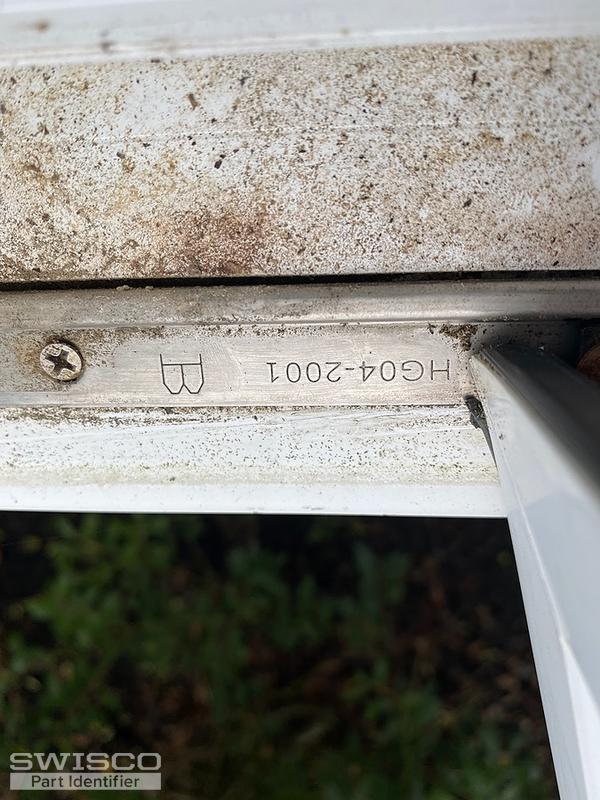

Looking to replace all hardware for top and bottom of window I' am thinking

39-341 or 39-342 if inside it's the left window need screws to also handle

Thank u Ray from Allshore home improvements

Thumbnail of the uploaded file named 8F37E076-56F3-4404-9C52-1E6C19F0E594.jpeg
Thumbnail of the uploaded file named E9052AC8-4C64-4A29-A41A-FA3D6EDDD9CA.jpeg
Thumbnail of the uploaded file named 3B66662F-1D89-4541-81F3-FC1D3D18722A.jpeg
Thumbnail of the uploaded file named 1A121A15-8E1C-483A-ABBB-6AD36966C4B4.jpeg
Thumbnail of the uploaded file named E16C80FF-FE6A-4C75-BE5F-F8F4D2DBD538.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for posting. You don't have the 39-342 or 39-341. These are dual-arm operators and your operator only has one arm. Instead, I recommend the 39-329 and 39-330. We also sell the 39-048 hinge set, 39-205 handle, and 39-553 bracket if you need them.
