SIMONTON PIVOT BARS

A quick learner from WATERTOWN, CT says:
June 11, 2011
I need to replace a SIMONTON Reflections Pivot Bar, but I do not see one on your web site that resembles mine. The order# marking on the decal is 0682572003001.
The windows were purchased in 2007 and the contractor doesn't have the part. Can you help me?


Thank you
Profile picture of Mike
Mike from SWISCO responded:
June 13, 2011
Good Morning,

Sometimes choosing a replacement pivot bar can be tricky because sometimes manufacturers make a new replacement pivot bar to replace a few different older styles. Can you submit a picture with a few dimensions of your Simonton pivot bar?
A quick learner says:
June 13, 2011
THE DIMENSIONS ARE 3 1/4" IN LENGHT, 1/4" WIDE AND 3/16" THICK.
IMAGES ARE ATTACHED.

THANKS

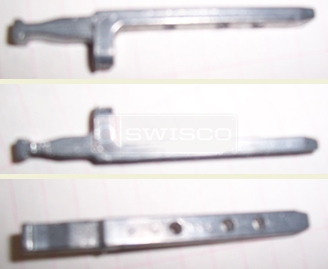

User submitted photo of pivot bar.
Profile picture of Mike
Mike from SWISCO responded:
June 22, 2011
Have you taken a look at the 26-336 Sash Pivot Bar?
A quick learner says:
October 7, 2011
I have the same pivot bar pictured. The replacement part 26-336 will not fit. Is there a replacement cam or shoe that mates the 26-336? That way I can replace both the pivot bar and cam or shoe.
Profile picture of Mike
Mike from SWISCO responded:
October 14, 2011
Thank you for your patience.

Unfortunately we have not been able to identify the exact pivot shoe meant to work with the 26-336 Simonton Pivot Bar.
